KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories
KLH12 ×

← Back to categories

4,821 items

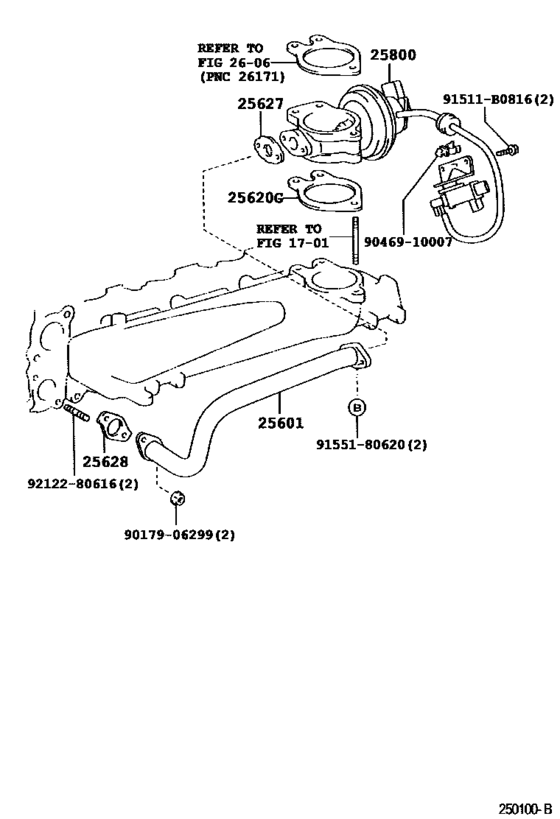

Exhaust Gas Recirculation System ([08.2001 - 08.2006] (0108-0608)2KDFTV) 20
#OEMPart name
25601 25601-30030 Pipe Sub-Assy, Egr, No.1
25601 25601-30080 Pipe Sub-Assy, Egr, No.1
25601 25601-0L021 Pipe Sub-Assy, Egr, No.1
25620 26171-30011 Gasket, Diesel Throttle
25620 26171-30013 Gasket, Intake Air Connector
25620 26171-30012 Gasket, Intake Air Connector
25620 26171-30030 Gasket, Intake Air Connector
25627 25627-30010 Gasket, Egr Valve
25627 25627-30060 Gasket, Egr Valve
25628 25628-30010 Gasket, Egr Inlet
25628 25628-30030 Gasket, Egr Inlet
25628 25628-30031 Gasket, Egr Inlet
25800 25800-30040 Valve Assy, Electric Egr Control
25800 25800-30130 Valve Assy, Electric Egr Control
91511 91511-B0816 BOLT
91511 90080-10159 New Genuine Part
9017906299 90179-06299 Nut, Wire Adjusting, No.1
9046910007 90469-10007 New Genuine Part
9155180620 91551-80620 Bolt
9212280616 92122-80616 Bolt, Stud(For Head To Cylinder Head Cover)
