Search › Model › KLH12

KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories

4,821 items

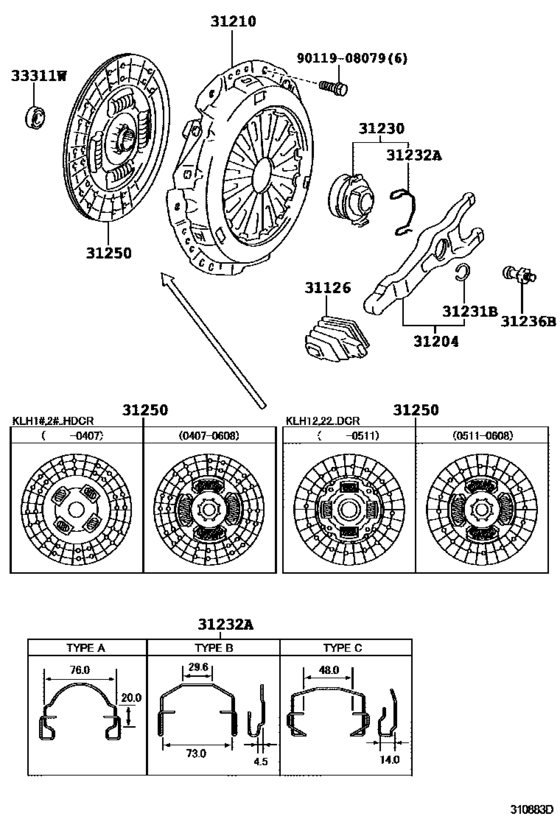

Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM) 20

#	OEM	Part name
31126	31126-60081	Boot, Clutch Release Fork
31204	31204-60090	Fork Sub-Assy, Clutch Release
31210	31210-26090	Cover Assy, Clutch
31210	31210-26131	Cover Assy, Clutch
31210	31210-26130	Cover Assy, Clutch
31210	31210-35270	Cover Assy, Clutch
31230	31230-60170	Bearing Assy, Clutch Release
31231	90521-22003	Ring, Snap(For Clutch Release Hub)
31232	31232-36030	Clip Or Spring, Release Bearing Hub
31232	31232-60030	Clip, Release Bearing Hub
31232	31232-71010	Clip, Release Bearing Hub
31236	31236-60060	Support, Release Fork
31250	31250-25160	Disc Assy, Clutch
31250	31250-26260	Disc Assy, Clutch
31250	31250-26210	Disc Assy, Clutch
31250	31250-26240	Disc Assy, Clutch
31250	31250-26241	Disc Assy, Clutch
33311	90363-12002	Bearing (For Input Shaft)
33311	90363-12024	Bearing, Radial Ball
9011908079	90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)

OEM	Part name	Category
31126-60081	Boot, Clutch Release Fork	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31204-60090	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31210-26090	Cover Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31210-26130	Cover Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31210-26131	Cover Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31210-35270	Cover Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31230-60170	Bearing Assy, Clutch Release	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31232-36030	Clip Or Spring, Release Bearing Hub	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31232-60030	Clip, Release Bearing Hub	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31232-71010	Clip, Release Bearing Hub	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31236-60060	Support, Release Fork	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31250-25160	Disc Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31250-26210	Disc Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31250-26240	Disc Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31250-26241	Disc Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
31250-26260	Disc Assy, Clutch	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
90363-12002	Bearing (For Input Shaft)	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
90363-12024	Bearing, Radial Ball	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
90521-22003	Ring, Snap(For Clutch Release Hub)	Clutch & Release Fork ([08.2001 - 08.2006] (0108-0608)KLH1#,2#..MTM)
