KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories

4,821 items

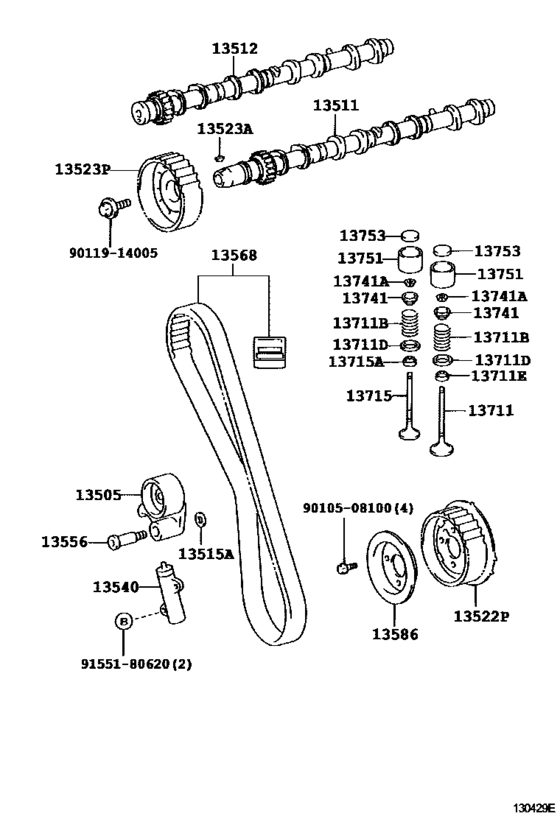

Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV) 94

#	OEM	Part name
13505	13505-67040	Idler Sub-Assy, Timing Belt, No.1
13505	13505-67042	Idler Sub-Assy, Timing Belt, No.1
13505	13505-67041	Idler Sub-Assy, Timing Belt, No.1
13511	13501-30030	Camshaft
13511	13501-30040	Camshaft
13512	13502-30020	Camshaft, No.2
13512	13502-30030	Camshaft, No.2
13515	90201-10124	Washer, Plate(For Distributor Drive Gear)
13522	13524-30010	Pulley, Pump Drive Shaft
13523	90280-05004	Key, Woodruff(For Timing Gear)
13523	13523-17010	Pulley, Camshaft Timing
13540	13540-67020	Tensioner Assy, No.1
13556	13556-67010	Shaft, Timing Belt Idler
13568	13568-39015	Belt, Timing
13568	13568-39016	Belt, Timing
13586	13586-17020	Flange, Camshaft Timing Pulley, No.2
13711	13711-30040	Valve, Intake
13711	90905-01077	Spring, Compression(For Inner)
13711	90201-16023	Washer, Plate(For Valve Spring Seat)
13711	90913-02121	Seal Or Ring, O(For Valve Stem Oil)
13715	13715-30040	Valve, Exhaust
13741	13741-15020	Retainer, Valve Spring
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13751	13751-46030	Lifter, Valve
13751	13751-46040	Lifter, Valve
13751	13751-46050	Lifter, Valve
13751	13751-46060	Lifter, Valve
13751	13751-46070	Lifter, Valve
13751	13751-46080	Lifter, Valve
13751	13751-46090	Lifter, Valve
13751	13751-46100	Lifter, Valve
13751	13751-46110	Lifter, Valve
13751	13751-46120	Lifter, Valve
13751	13751-46130	Lifter, Valve
13751	13751-46140	Lifter, Valve
13751	13751-46150	Lifter, Valve
13751	13751-46160	Lifter, Valve
13751	13751-46170	Lifter, Valve
13751	13751-46180	Lifter, Valve
13751	13751-46190	Lifter, Valve
13751	13751-46200	Lifter, Valve
13751	13751-46210	Lifter, Valve
13751	13751-46220	Lifter, Valve
13751	13751-46230	Lifter, Valve
13751	13751-46240	Lifter, Valve
13751	13751-46250	Lifter, Valve
13751	13751-46260	Lifter, Valve
13751	13751-46270	Lifter, Valve
13751	13751-46280	Lifter, Valve
13751	13751-46290	Lifter, Valve
13751	13751-46300	Lifter, Valve
13751	13751-46310	Lifter, Valve
13751	13751-46320	Lifter, Valve
13751	13751-46330	Lifter, Valve
13751	13751-46340	Lifter, Valve
13751	13751-46350	Lifter, Valve
13751	13751-46360	Lifter, Valve
13751	13751-46370	Lifter, Valve
13751	13751-74020	Lifter, Valve
13753	13753-30010	Shim, Valve Adjusting
13753	13753-30020	Shim, Valve Adjusting
13753	13753-30030	Shim, Valve Adjusting
13753	13753-30040	Shim, Valve Adjusting
13753	13753-30050	Shim, Valve Adjusting
13753	13753-30060	Shim, Valve Adjusting
13753	13753-30070	Shim, Valve Adjusting
13753	13753-30080	Shim, Valve Adjusting
13753	13753-30090	Shim, Valve Adjusting
13753	13753-30100	Shim, Valve Adjusting
13753	13753-30110	Shim, Valve Adjusting
13753	13753-30120	Shim, Valve Adjusting
13753	13753-30130	Shim, Valve Adjusting
13753	13753-30140	Shim, Valve Adjusting
13753	13753-30150	Shim, Valve Adjusting
13753	13753-30160	Shim, Valve Adjusting
13753	13753-30170	Shim, Valve Adjusting
13753	13753-30180	Shim, Valve Adjusting
13753	13753-30190	Shim, Valve Adjusting
13753	13753-30200	Shim, Valve Adjusting
13753	13753-30210	Shim, Valve Adjusting
13753	13753-30220	Shim, Valve Adjusting
13753	13753-30230	Shim, Valve Adjusting
13753	13753-30240	Shim, Valve Adjusting
13753	13753-30250	Shim, Valve Adjusting
13753	13753-30260	Shim, Valve Adjusting
13753	13753-30270	Shim, Valve Adjusting
13753	13753-30280	Shim, Valve Adjusting
13753	13753-30290	Shim, Valve Adjusting
13753	13753-30300	Shim, Valve Adjusting
13753	13753-30310	Shim, Valve Adjusting
13753	13753-30320	Shim, Valve Adjusting
9010508100	90105-08100	BOLT
9011914005	90119-14005	Washer, Plate(For Crankshaft Pulley Set)
9155180620	91551-80620	Bolt

OEM	Part name	Category
13501-30030	Camshaft	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13501-30040	Camshaft	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13502-30020	Camshaft, No.2	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13502-30030	Camshaft, No.2	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13505-67040	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13505-67041	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13505-67042	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13523-17010	Pulley, Camshaft Timing	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13524-30010	Pulley, Pump Drive Shaft	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13540-67020	Tensioner Assy, No.1	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13556-67010	Shaft, Timing Belt Idler	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13568-39015	Belt, Timing	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13568-39016	Belt, Timing	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13586-17020	Flange, Camshaft Timing Pulley, No.2	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13711-30040	Valve, Intake	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13715-30040	Valve, Exhaust	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13741-15020	Retainer, Valve Spring	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46030	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46040	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46050	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46060	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46070	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46080	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46090	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46100	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46110	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46120	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46130	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46140	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46150	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46160	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46170	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46180	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46190	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46200	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46210	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46220	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46230	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46240	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46250	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46260	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46270	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46280	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46290	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46300	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46310	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46320	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46330	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46340	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46350	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46360	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-46370	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13751-74020	Lifter, Valve	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30010	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30020	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30030	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30040	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30050	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30060	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30070	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30080	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30090	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30100	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30110	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30120	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30130	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30140	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30150	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30160	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30170	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30180	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30190	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30200	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30210	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30220	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30230	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30240	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30250	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30260	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30270	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30280	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30290	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30300	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30310	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
13753-30320	Shim, Valve Adjusting	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90105-08100	BOLT	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90119-14005	Washer, Plate(For Crankshaft Pulley Set)	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90201-10124	Washer, Plate(For Distributor Drive Gear)	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90201-16023	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90280-05004	Key, Woodruff(For Timing Gear)	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90905-01077	Spring, Compression(For Inner)	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90913-02121	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
91551-80620	Bolt	Camshaft & Valve ([08.2001 - ] (0108- )2KDFTV)
