Search › Model › KGC35

KGC35

Toyota PASSO · 2010 · 3,716 parts · 215 categories

3,716 items

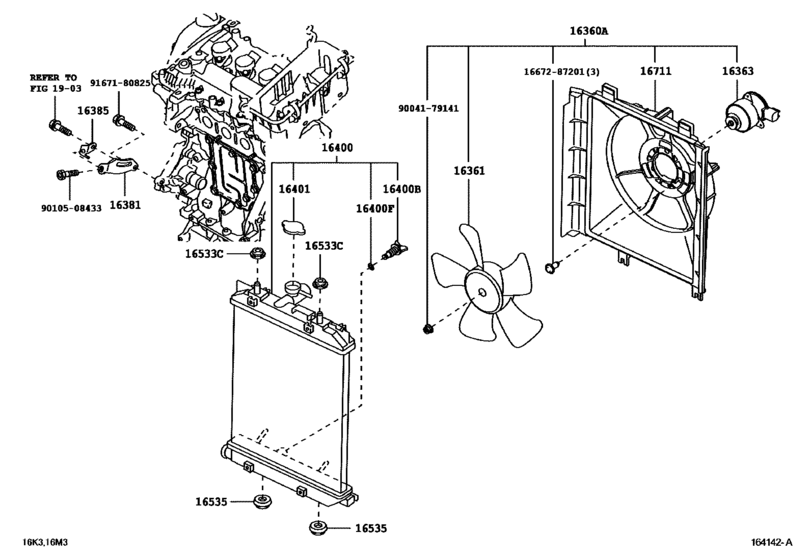

Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE) 63

#	OEM	Part name
16057	16057-B1050	Hose Sub-Assy, Radiator
16258	16258-40020	Gasket(For Water By-Pass Pipe)
16258	16258-40021	Gasket(For Water By-Pass Pipe)
16260	16260-B1020	Hose Assy, Water By-Pass
16260	16260-B1110	Hose Assy, Water By-Pass
16260	16260-B1030	Hose Assy, Water By-Pass
16261	16261-40111	Hose, Water By-Pass
16261	90466-30001	Clip Or Clamp(For Ventilation Hose)
16261	16261-B1190	Hose, Water By-Pass, No.1
16261	16261-B1330	Hose, Water By-Pass, No.1
16261	90044-67301	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	16261-B1150	Hose, Water By-Pass, No.2
16264	16264-B1030	Hose, Water By-Pass, No.2
16264	16264-B1090	Hose, Water By-Pass, No.2
16264	16261-B1180	Hose, Water By-Pass, No.3
16264	16261-B1320	Hose, Water By-Pass, No.3
16267	96136-42501	Clip(For Ventilation Hose)
16267	16261-B1140	Hose, Water By-Pass, No.4
16268	16268-40010	Pipe, Water By-Pass, No.1
16268	25601-B1020	Pipe, Water By-Pass, No.1
16291	16291-B1020	Joint, Water Hose
16321	16321-40010	Inlet, Water
16331	90916-03134	Thermostat
16331	90916-03150	Thermostat
16331	92132-80625	Bolt, Stud(For Cylinder Head Cover Set)
16341	16341-35010	Gasket, Water Outlet
16360	16360-B1171	Fan Assy, W/motor
16361	16361-B1070	Fan
16363	16363-B1040	Motor, Cooling Fan
16381	16381-B1050	Bar, Fan Belt Adjusting
16381	16381-B1060	Bar, Fan Belt Adjusting
16385	16385-40011	Slider, Fan Belt Adjusting
16400	16400-B1300	Radiator Assy
16400	16400-B1301	Radiator Assy
16400	16400-B1390	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16442-97201	Packing(For Radiator Drain Cock)
16400	90044-64775	Clamp, No.2
16401	16401-97202	Cap Sub-Assy, Radiator
16464	16464-97201	Bush, Tank Lower
16470	16470-B1050	Tank Assy, Radiator Reserve
16470	16472-B1030	Hose Or Pipe(For Radiator Reserve Tank)
16471	16405-B1040	Cap Sub-Assy, Reserve Tank
16471	16471-87402	Cap Sub-Assy, Radiator Reserve Tank
16533	90044-80621	Grommet(For Radiator Support)
16535	90044-80592	Grommet
16572	90044-66014	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-B1060	Hose, Radiator, No.2
16572	90044-67482	Clip
16581	90044-64833	Clamp, Hose(For Radiator Hose)
16711	16711-B1070	Shroud, Fan
91671	91671-F0630	New Genuine Part
1667287201	16672-87201	Bolt, Radiator Side Support Plate
9004179141	90041-79141	New Genuine Part
9004413070	90044-13070	Pipe, Water By-Pass, No.1
9004467207	90044-67207	Clamp Or Clip(For Water By-Pass Hose No.2)
9010508433	90105-08433	BOLT FLANGE
9012608055	90126-08055	Bolt, Stud(For Manifold To Cylinder Head)
9167180630	91671-80630	Bolt(For Cylinder Head Cover)
9167180818	91671-80818	BOLT FLANGE
9167180825	91671-80825	Bolt, Compressor, No.1
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
16057-B1050	Hose Sub-Assy, Radiator	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16258-40020	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16258-40021	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16260-B1020	Hose Assy, Water By-Pass	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16260-B1030	Hose Assy, Water By-Pass	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16260-B1110	Hose Assy, Water By-Pass	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16261-40111	Hose, Water By-Pass	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16261-B1140	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16261-B1150	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16261-B1180	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16261-B1190	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16261-B1320	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16261-B1330	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16264-B1030	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16264-B1090	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16268-40010	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16291-B1020	Joint, Water Hose	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16321-40010	Inlet, Water	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16341-35010	Gasket, Water Outlet	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16360-B1171	Fan Assy, W/motor	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16361-B1070	Fan	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16363-B1040	Motor, Cooling Fan	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16381-B1050	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16381-B1060	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16385-40011	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16400-B1300	Radiator Assy	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16400-B1301	Radiator Assy	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16400-B1390	Radiator Assy	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16401-97202	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16405-B1040	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16442-97201	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16464-97201	Bush, Tank Lower	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16470-B1050	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16471-87402	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16472-B1030	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16572-B1060	Hose, Radiator, No.2	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16672-87201	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
16711-B1070	Shroud, Fan	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
25601-B1020	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90041-79141	New Genuine Part	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-13070	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-64775	Clamp, No.2	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-64833	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-66014	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-67207	Clamp Or Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-67301	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-67482	Clip	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-80592	Grommet	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90044-80621	Grommet(For Radiator Support)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90105-08433	BOLT FLANGE	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90126-08055	Bolt, Stud(For Manifold To Cylinder Head)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90466-30001	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90916-03134	Thermostat	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
90916-03150	Thermostat	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
91671-80630	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
91671-80818	BOLT FLANGE	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
91671-80825	Bolt, Compressor, No.1	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
91671-F0630	New Genuine Part	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
92132-80625	Bolt, Stud(For Cylinder Head Cover Set)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
94151-80800	Nut (For Transmission Control Cable)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([02.2010 - 04.2014] (1002-1404)1KRFE)
