KGC35

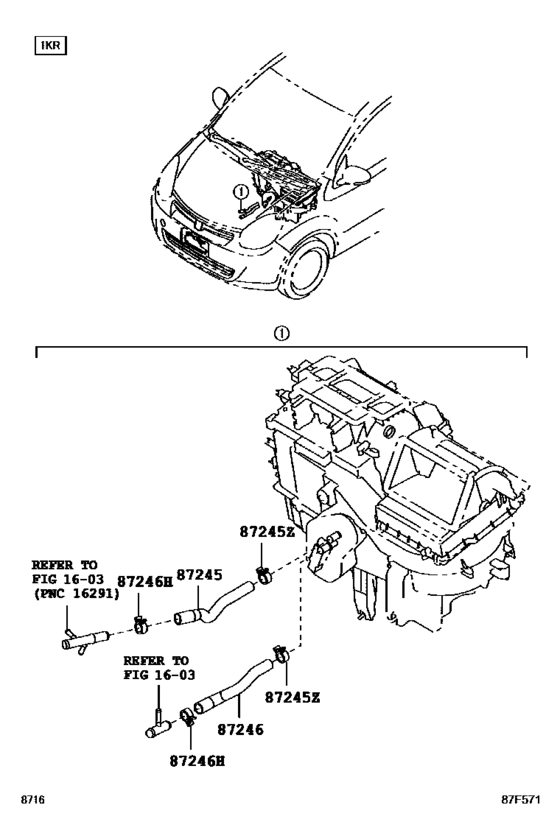

Heating & Air Conditioning - Water Piping ([02.2010 - 04.2014] 1KR (1002-1404)KGC3#) 4
| # | OEM | Part name |
|---|---|---|
| 87245 | 87245-B1050 | Hose, Heater Water, Inlet |
| 87245 | 88718-97209 | Clip, No.2(For Oil Cooler Hose) |
| 87246 | 87246-B1090 | Hose, Heater Water, Outlet |
| 87246 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87245-B1050 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([02.2010 - 04.2014] 1KR (1002-1404)KGC3#) |
| 87246-B1090 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([02.2010 - 04.2014] 1KR (1002-1404)KGC3#) |
| 88718-97209 | Clip, No.2(For Oil Cooler Hose) | Heating & Air Conditioning - Water Piping ([02.2010 - 04.2014] 1KR (1002-1404)KGC3#) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([02.2010 - 04.2014] 1KR (1002-1404)KGC3#) |
