Search › Model › KGC35
KGC35

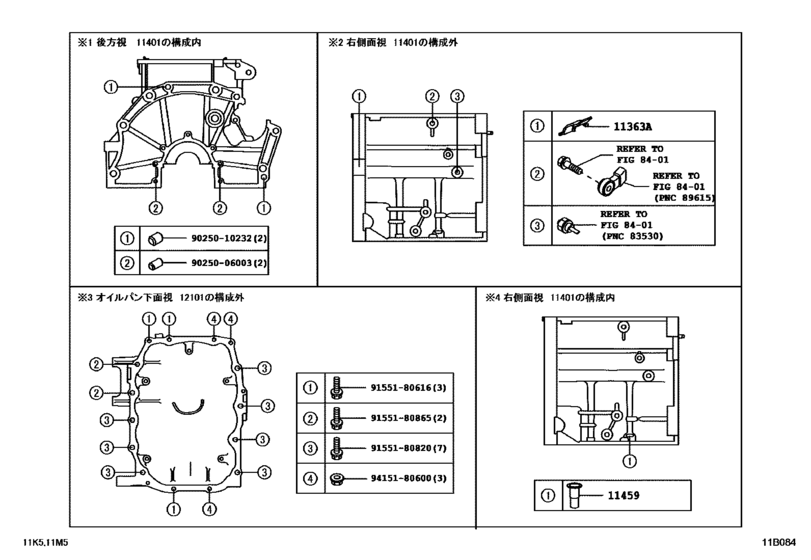

Cylinder Block ([02.2010 - ] (1002- )1KRFE) 8
| # | OEM | Part name |
|---|---|---|
| 11363 | 11363-B1010 | Cover, Flywheel Housing Side |
| 11459 | 11459-40010 | Support, Oil Level Gage Guide |
| 9025006003 | 90250-06003 | Pin, Straight |
| 9025010232 | 90250-10232 | Pin, Straight(For Engine Rear Oil Seal) |
| 9155180616 | 91551-80616 | BOLT FLANGE |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9155180865 | 91551-80865 | Shaft, Clutch Pedal |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 11363-B1010 | Cover, Flywheel Housing Side | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
| 11459-40010 | Support, Oil Level Gage Guide | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
| 90250-06003 | Pin, Straight | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
| 90250-10232 | Pin, Straight(For Engine Rear Oil Seal) | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
| 91551-80616 | BOLT FLANGE | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
| 91551-80865 | Shaft, Clutch Pedal | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Cylinder Block ([02.2010 - ] (1002- )1KRFE) |
