Search › Model › KGC30

KGC30

Toyota PASSO · 2010 · 3,640 parts · 210 categories

3,640 items

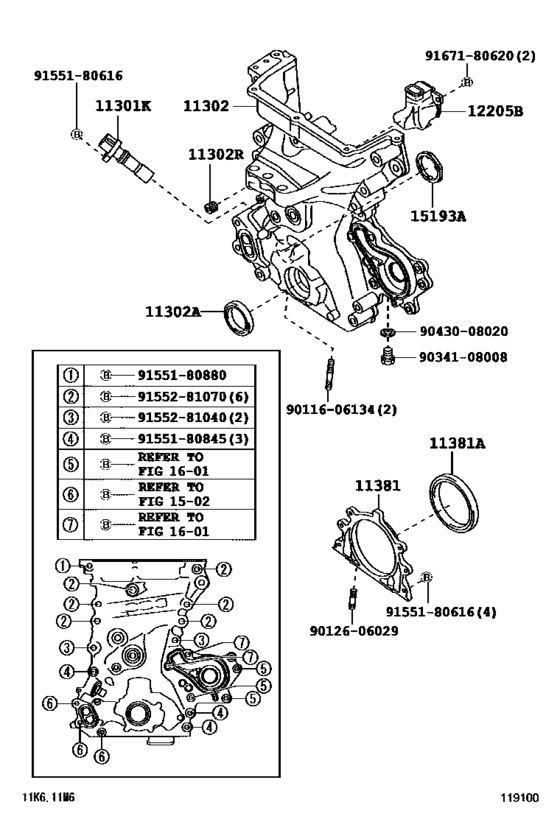

Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE) 22

#	OEM	Part name
11301	90919-05062	Sensor, Crank Position
11302	11310-40041	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-40060	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38092	Seal, Oil(For Timing Gear Case Or Timing Chain Case) - OIL(FOR TIMING CHAIN OR BELT COVER)
11302	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
11381	11381-40010	Retainer, Engine Rear Oil Seal
11381	11381-40030	Retainer, Engine Rear Oil Seal
11381	90311-73004	Seal, Engine Rear Oil
11381	90311-73005	Seal, Engine Rear Oil
12205	12205-40020	Case Sub-Assy, Ventilation
15193	15193-40010	Gasket, Oil Pump
9011606134	90116-06134	Bolt, Stud(For Timing Gear Cover)
9012606029	90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)
9012606029	90126-A0014	Bolt, Stud(For Oil Strainer)
9034108008	90341-08008	Plug, Straight(For Timing Gear Cover)
9043008020	90430-08020	Gasket, Timing Gear Or Chain Cover
9155180616	91551-80616	BOLT FLANGE
9155180845	91551-80845	BOLT FLANGE
9155180880	91551-80880	Bolt, Compressor, No.3
9155281040	91552-81040	Bolt(For Alternator)
9155281070	91552-81070	Bolt(For Alternator)
9167180620	91671-80620	New Genuine Part

OEM	Part name	Category
11310-40041	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
11310-40060	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
11381-40010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
11381-40030	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
12205-40020	Case Sub-Assy, Ventilation	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
15193-40010	Gasket, Oil Pump	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90116-06134	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90126-A0014	Bolt, Stud(For Oil Strainer)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90311-38092	Seal, Oil(For Timing Gear Case Or Timing Chain Case) - OIL(FOR TIMING CHAIN OR BELT COVER)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90311-73004	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90311-73005	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90341-08008	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90430-08020	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
90919-05062	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
91551-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
91551-80845	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
91551-80880	Bolt, Compressor, No.3	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
91552-81040	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
91552-81070	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)
91671-80620	New Genuine Part	Timing Gear Cover & Rear End Plate ([04.2014 - ] (1404- )1KRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 210
Collected: 2026-08-04
