Search › Model › KGC30

KGC30

Toyota PASSO · 2010 · 3,640 parts · 210 categories

3,640 items

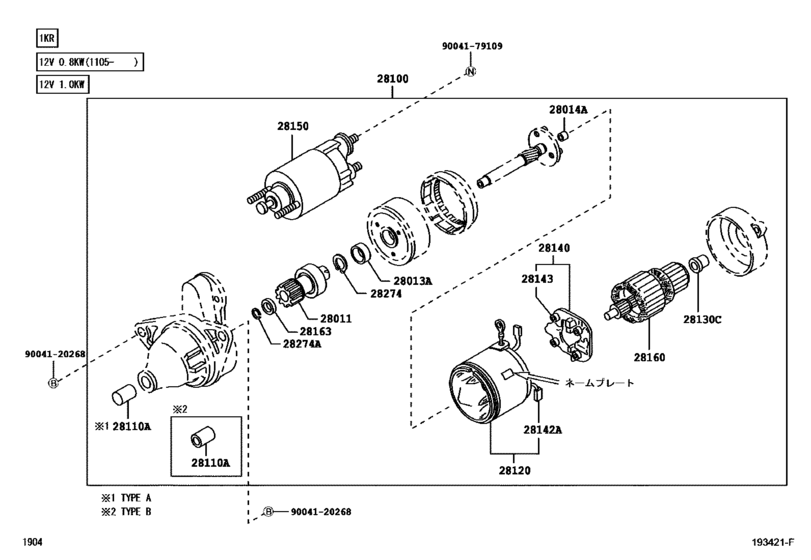

Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE) 39

#	OEM	Part name
28011	28011-B1010	Clutch Sub-Assy, Starter
28011	28011-B1040	Clutch Sub-Assy, Starter
28011	28011-B2040	Clutch Sub-Assy, Starter
28013	90099-10181	Bearing, Starter Center & Shock Absorber, No.2
28014	90099-10180	Bush Or Bearing, Planet Carrier Shaft
28100	28100-B1050	Starter Assy
28100	28100-B1080	Starter Assy
28100	28100-B2040	Starter Assy
28100	28100-B2120	Starter Assy
28100	28100-B1090	Starter Assy
28100	28100-B1100	Starter Assy
28110	28277-87201	Bearing(For Starter Housing)
28120	28120-87401	Yoke Assy, Starter
28120	28120-87507	Yoke Assy, Starter
28120	28120-97502	Yoke Assy, Starter
28120	28120-B1010	Yoke Assy, Starter
28120	28120-B1050	Yoke Assy, Starter
28130	28271-87502	Bearing(For Starter Housing)
28130	90099-10183	Bearing, Starter Flange
28140	28140-87202	Holder Assy, Starter Brush
28140	28140-B2130	Holder Assy, Starter Brush
28140	28149-87501	Holder Assy, Starter Brush
28142	28142-87204	Brush, Starter
28142	28142-87504	Brush, Starter
28142	28142-97501	Starter Kit
28143	28143-10020	Spring, Starter Brush
28143	28143-87202	Spring, Starter Brush
28150	28150-87536	Switch Assy, Magnet Starter
28150	28150-B1050	Switch Assy, Magnet Starter
28150	28226-B1020	Switch Assy, Magnet Starter
28160	28160-87205	Armature Assy, Starter
28160	28160-87207	Armature Assy, Starter
28160	28160-87208	Armature Assy, Starter
28163	28142-87505	Nut Or Collar, Pinion Stop, Starter
28163	28163-87202	Nut Or Collar, Pinion Stop, Starter
28274	90096-90030	Ring, Snap, Starter Clutch Housing Disc
28274	28274-87503	Ring, Snap(For Starter Pinion Stop Nut)
9004120268	90041-20268	New Genuine Part
9004179109	90041-79109	New Genuine Part

OEM	Part name	Category
28011-B1010	Clutch Sub-Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28011-B1040	Clutch Sub-Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28011-B2040	Clutch Sub-Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28100-B1050	Starter Assy	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28100-B1080	Starter Assy	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28100-B1090	Starter Assy	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28100-B1100	Starter Assy	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28100-B2040	Starter Assy	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28100-B2120	Starter Assy	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28120-87401	Yoke Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28120-87507	Yoke Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28120-97502	Yoke Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28120-B1010	Yoke Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28120-B1050	Yoke Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28140-87202	Holder Assy, Starter Brush	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28140-B2130	Holder Assy, Starter Brush	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28142-87204	Brush, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28142-87504	Brush, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28142-87505	Nut Or Collar, Pinion Stop, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28142-97501	Starter Kit	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28143-10020	Spring, Starter Brush	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28143-87202	Spring, Starter Brush	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28149-87501	Holder Assy, Starter Brush	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28150-87536	Switch Assy, Magnet Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28150-B1050	Switch Assy, Magnet Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28160-87205	Armature Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28160-87207	Armature Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28160-87208	Armature Assy, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28163-87202	Nut Or Collar, Pinion Stop, Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28226-B1020	Switch Assy, Magnet Starter	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28271-87502	Bearing(For Starter Housing)	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28274-87503	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
28277-87201	Bearing(For Starter Housing)	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
90041-20268	New Genuine Part	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
90041-79109	New Genuine Part	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
90096-90030	Ring, Snap, Starter Clutch Housing Disc	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
90099-10180	Bush Or Bearing, Planet Carrier Shaft	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
90099-10181	Bearing, Starter Center & Shock Absorber, No.2	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)
90099-10183	Bearing, Starter Flange	Starter ([02.2010 - ] 12V 0.8KW,1.0KW (1002- )1KRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 210
Collected: 2026-08-04
