Search › Model › KGC30

KGC30

Toyota PASSO · 2010 · 3,640 parts · 210 categories
KGC30 ×

← Back to categories

3,640 items

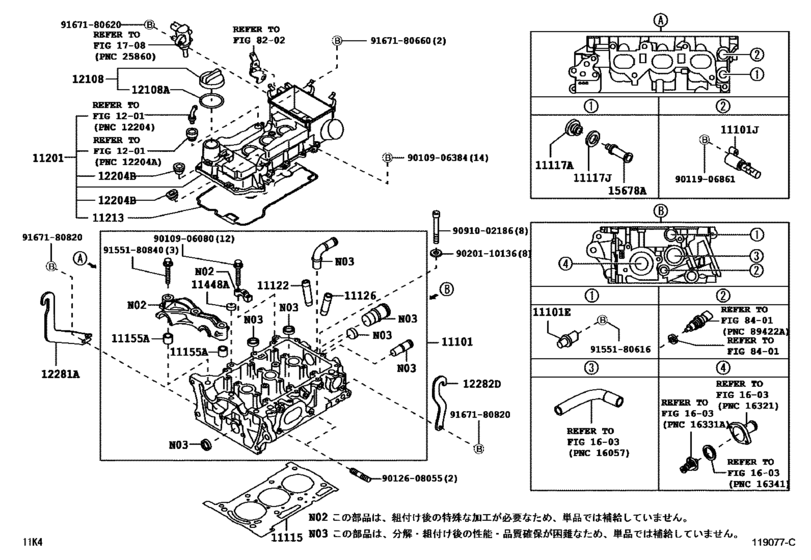

Cylinder Head ([04.2014 - ] (1404- )1KRFE) 37
#OEMPart name
11101 11101-40031 Head Sub-Assy, Cylinder
11101 11101-40050 Head Sub-Assy, Cylinder
11101 19311-B1010 Sensor, Cam Position
11101 90919-05024 Sensor, Cam Position
11101 15330-40020 Valve Assy, Camshaft Timing Oil Control
11101 15330-40030 Valve Assy, Camshaft Timing Oil Control
11101 15330-40031 Valve Assy, Camshaft Timing Oil Control
11115 11115-40060 Gasket, Cylinder Head
11115 11115-40080 Gasket, Cylinder Head
11117 90341-14013 Plug, W/head Taper Screw, No.1
11117 90430-14009 Gasket(For Cylinder Head Screw Plug)
11122 11122-21010 Bush, Intake Valve Guide
11122 11123-21010 Bush, Intake Valve Guide
11155 90253-11005 Pin, Ring(For Camshaft Bearing Cap Setting)
11201 11210-40130 Cover Sub-Assy, Cylinder Head
11201 11210-40150 Cover Sub-Assy, Cylinder Head
11213 11213-40030 Gasket, Cylinder Head Cover
11213 11213-40050 Gasket, Cylinder Head Cover
11213 11213-40051 Gasket, Cylinder Head Cover
11448 11448-23010 Orifice, Cylinder Head Oil
12108 12180-38010 Cap Sub-Assy, Oil Filler
12108 90430-35001 Gasket(For Oil Filler Cap)
12204 90480-12020 Grommet(For Ventilation System)
12281 12281-40032 Hanger, Engine, No.1
12282 12282-40010 Hanger, Engine, No.2
15678 15678-21010 Filter, Oil Control Valve
9010906080 90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)
9010906384 90109-06384 Bolt(For Cylinder Head Cover)
9011906861 90119-06861 New Genuine Part
9012608055 90126-08055 Bolt, Stud(For Manifold To Cylinder Head)
9020110136 90201-10136 Washer, Plate(For Cylinder Head Set)
9091002186 90910-02186 Bolt(For Cylinder Head Set)
9155180616 91551-80616 BOLT FLANGE
9155180840 91551-80840 Bolt(For Head To Camshaft Bearing Cap)
9167180620 91671-80620 New Genuine Part
9167180660 91671-80660 New Genuine Part
9167180820 91671-80820 Bolt (For Transmission Control Cable Bracket)
Source
Public OEM parts-catalog data
Variants
2 / 2
Category
210
Collected
2026-08-04
