Search › Model › KGC30

KGC30

Toyota PASSO · 2010 · 3,640 parts · 210 categories

3,640 items

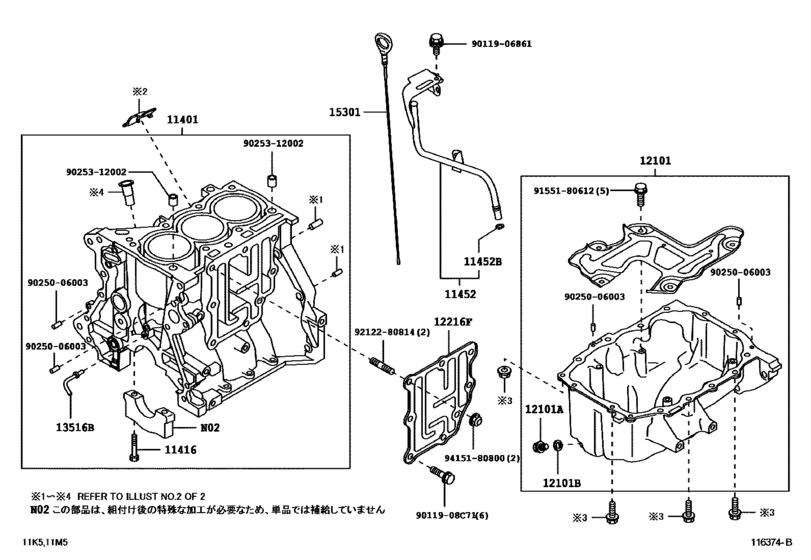

Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE) 22

#	OEM	Part name
11401	11401-B9340	Block Sub-Assy, Cylinder
11401	11401-B9342	Block Sub-Assy, Cylinder
11401	11401-B9341	Block Sub-Assy, Cylinder
11416	90105-10531	Bolt(For Crankshaft Bearing Cap Set)
11452	11409-B1060	Guide, Oil Level Gage
11452	11409-B1080	Guide, Oil Level Gage
11452	96721-19010	Ring, O(For Oil Level Gage Guide)
12101	12101-B1060	Pan Sub-Assy, Oil
12101	12101-B1070	Pan Sub-Assy, Oil
12101	90341-12032	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12216	12216-40020	Plate, Ventilation Baffle
13516	13516-40010	Jet, Oil
15301	15301-B1100	Gage Sub-Assy, Oil Level
15301	15301-B1120	Gage Sub-Assy, Oil Level
9011908	90119-08C71	New Genuine Part
9011906861	90119-06861	New Genuine Part
9025006003	90250-06003	Pin, Straight
9025312002	90253-12002	Pin, Ring
9155180612	91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)
9212280814	92122-80814	New Genuine Part
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
11401-B9340	Block Sub-Assy, Cylinder	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
11401-B9341	Block Sub-Assy, Cylinder	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
11401-B9342	Block Sub-Assy, Cylinder	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
11409-B1060	Guide, Oil Level Gage	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
11409-B1080	Guide, Oil Level Gage	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
12101-B1060	Pan Sub-Assy, Oil	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
12101-B1070	Pan Sub-Assy, Oil	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
12216-40020	Plate, Ventilation Baffle	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
13516-40010	Jet, Oil	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
15301-B1100	Gage Sub-Assy, Oil Level	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
15301-B1120	Gage Sub-Assy, Oil Level	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
90105-10531	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
90119-06861	New Genuine Part	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
90119-08C71	New Genuine Part	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
90250-06003	Pin, Straight	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
90253-12002	Pin, Ring	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
90341-12032	Plug(For Oil Pan Drain)	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
91551-80612	Bolt (For Front Differential Breather Plug Oil Deflector)	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
92122-80814	New Genuine Part	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
94151-80800	Nut (For Transmission Control Cable)	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([02.2010 - 04.2014] (1002-1404)1KRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 210
Collected: 2026-08-04
