Search › Model › KGC30

KGC30

Toyota PASSO · 2010 · 3,640 parts · 210 categories

← Back to categories

3,640 items

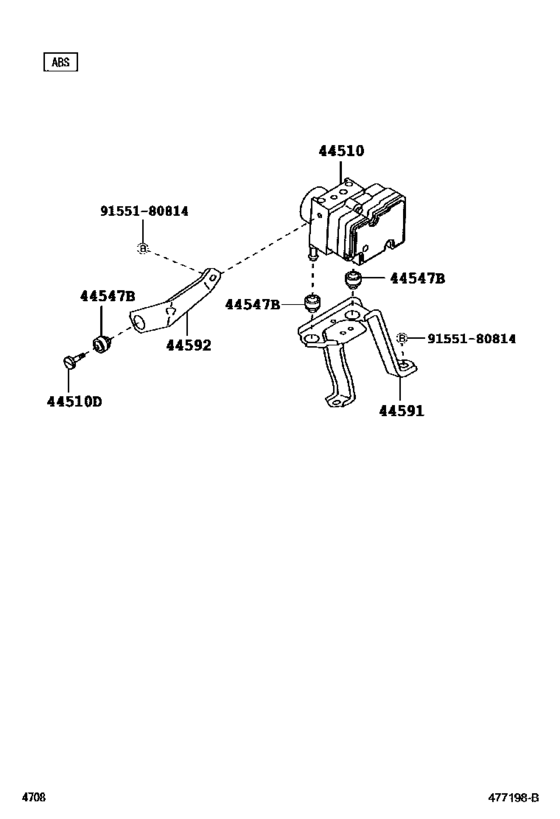

Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404)) 13

#	OEM	Part name
44510	44050-B1190	Actuator Assy, Brake
44510	44050-B1210	Actuator Assy, Brake
44510	44050-B1211	Actuator Assy, Brake
44510	44050-B1240	Actuator Assy, Brake
44510	44050-B1280	Actuator Assy, Brake
44510	44548-97201	Bolt(For Brake Actuator)
44510	44050-B1250	Actuator Assy, Brake
44547	44547-87101	Cushion, Brake Actuator Bolt
44591	44591-B1070	Bracket, Brake Actuator, No.1
44591	44591-B1090	Bracket, Brake Actuator, No.1
44592	44591-B1080	Bracket, Brake Actuator, No.2
44592	44591-B1100	Bracket, Brake Actuator, No.2
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)

OEM	Part name	Category
44050-B1190	Actuator Assy, Brake	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44050-B1210	Actuator Assy, Brake	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44050-B1211	Actuator Assy, Brake	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44050-B1240	Actuator Assy, Brake	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44050-B1250	Actuator Assy, Brake	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44050-B1280	Actuator Assy, Brake	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44547-87101	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44548-97201	Bolt(For Brake Actuator)	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44591-B1070	Bracket, Brake Actuator, No.1	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44591-B1080	Bracket, Brake Actuator, No.2	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44591-B1090	Bracket, Brake Actuator, No.1	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
44591-B1100	Bracket, Brake Actuator, No.2	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Brake Tube & Clamp ([02.2010 - 04.2014] ABS ACTUATOR (1002-1404))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 210
Collected: 2026-08-04
