Search › Model › KGC30
KGC30

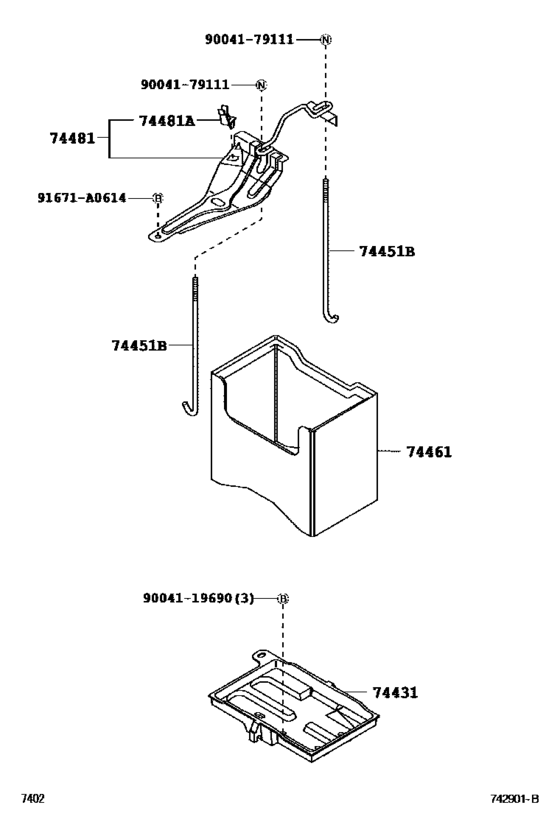

Battery Carrier ([02.2010 - ] (1002- )) 8
| # | OEM | Part name |
|---|---|---|
| 74431 | 74411-B1011 | Tray, Battery |
| 74451 | 74451-B1010 | Bolt, Battery Clamp |
| 74461 | 74405-B1010 | Cover, Battery |
| 74481 | 74404-B1040 | Clamp, Battery Hold Down |
| 74481 | 53455-B1080 | Clamp, Hood Support Rod |
| 91671 | 91671-A0614 | Bolt |
| 9004119690 | 90041-19690 | New Genuine Part |
| 9004179111 | 90041-79111 | Nut, Wing (For Battery Clamp Bolt) |
| OEM | Part name | Category |
|---|---|---|
| 53455-B1080 | Clamp, Hood Support Rod | Battery Carrier ([02.2010 - ] (1002- )) |
| 74404-B1040 | Clamp, Battery Hold Down | Battery Carrier ([02.2010 - ] (1002- )) |
| 74405-B1010 | Cover, Battery | Battery Carrier ([02.2010 - ] (1002- )) |
| 74411-B1011 | Tray, Battery | Battery Carrier ([02.2010 - ] (1002- )) |
| 74451-B1010 | Bolt, Battery Clamp | Battery Carrier ([02.2010 - ] (1002- )) |
| 90041-19690 | New Genuine Part | Battery Carrier ([02.2010 - ] (1002- )) |
| 90041-79111 | Nut, Wing (For Battery Clamp Bolt) | Battery Carrier ([02.2010 - ] (1002- )) |
| 91671-A0614 | Bolt | Battery Carrier ([02.2010 - ] (1002- )) |
