KGC15

Toyota PASSO · 2004 · 3,404 parts · 193 categories

3,404 items

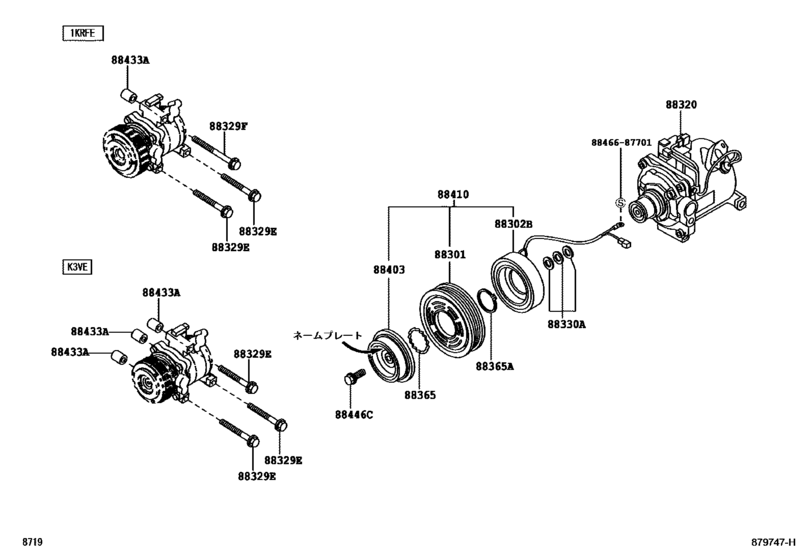

Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002)) 21

#	OEM	Part name
88301	88412-B1040	Rotor Sub-Assy, Magnet Clutch
88302	88411-97401	Stator Sub-Assy, Magnet Clutch
88320	88320-B1020	Compressor Assy, Cooler
88320	88320-97401	Compressor Assy, Cooler
88320	88310-B1060	Compressor Assy, W/pulley
88320	88310-B1070	Compressor Assy, W/pulley
88329	88329-B1010	Bolt, Compressor, No.1
88329	88329-B1020	Bolt, Compressor, No.1
88330	88318-87704	Washer (For Magnet Clutch)
88330	88318-87705	Washer (For Magnet Clutch)
88330	88318-87706	Washer (For Magnet Clutch)
88330	88335-14020	Washer
88365	90099-07125	Ring, Snap
88365	88365-87201	Ring, Snap
88403	88403-97201	Hub Sub-Assy, Magnet Clutch
88410	88410-B1040	Clutch Assy, Magnet
88410	88410-97403	Clutch Assy, Magnet
88433	88433-B1020	Stay, Compressor
88446	90099-04349	Bolt, Magnet Clutch Setting
8846687701	88466-87701	New Genuine Part
8846687701	93319-15008	SCREW

OEM	Part name	Category
88310-B1060	Compressor Assy, W/pulley	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88310-B1070	Compressor Assy, W/pulley	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88318-87704	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88318-87705	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88318-87706	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88320-97401	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88320-B1020	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88329-B1010	Bolt, Compressor, No.1	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88329-B1020	Bolt, Compressor, No.1	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88335-14020	Washer	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88365-87201	Ring, Snap	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88403-97201	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88410-97403	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88410-B1040	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88411-97401	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88412-B1040	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88433-B1020	Stay, Compressor	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
88466-87701	New Genuine Part	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
90099-04349	Bolt, Magnet Clutch Setting	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
90099-07125	Ring, Snap	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
93319-15008	SCREW	Heating & Air Conditioning - Compressor ([12.2005 - 02.2010] (0512-1002))
