KGC10

Toyota PASSO · 2004 · 3,347 parts · 188 categories
KGC10 ×

← Back to categories

3,347 items

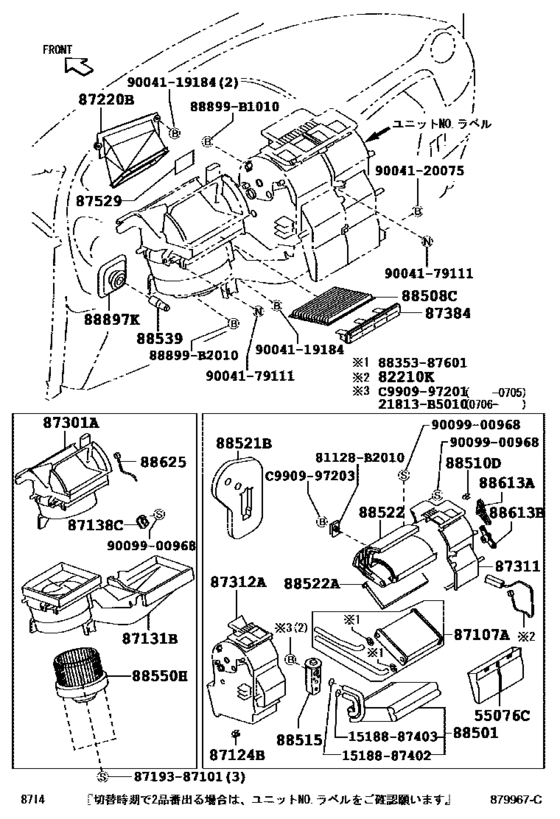

Heating & Air Conditioning - Cooler Unit ([05.2006 - 02.2010] (0605-1002)) 60
#OEMPart name
21813 21813-B5010 Bolt, Stud(for Carburetor To Air Connector)
55076 55076-B1010 Net Sub-Assy, Air Duct
81128 81128-B2010 Nut, Headlamp
82210 82210-B1010 Harness Assy, Air Conditioner
87107 88461-97209 Unit Sub-Assy, Heater Radiator
87107 88461-97210 Unit Sub-Assy, Heater Radiator
87124 87126-B1010 Clamp, Heater
87131 87103-B1030 Case, Heater Blower
87131 87103-97211 Case, Heater Blower
87131 87103-B1010 Case, Heater Blower
87138 87138-97206 Resistor, Blower
87220 87220-B1030 Duct Assy, Air
87301 87303-97201 Case Sub-Assy, Heater
87301 87303-97202 Case Sub-Assy, Heater
87301 87303-B1010 Case Sub-Assy, Heater
87311 87311-B1120 Case, Heater, No.1
87311 87311-B1130 Case, Heater, No.1
87311 87311-97258 Case, Heater, No.1
87311 87311-97259 Case, Heater, No.1
87311 87311-B1030 Case, Heater, No.1
87311 87311-B1040 Case, Heater, No.1
87312 87312-B1070 Case, Heater,no.2
87312 87312-B1080 Case, Heater,no.2
87312 87312-97203 Case, Heater,no.2
87312 87312-97204 Case, Heater,no.2
87312 87312-B1010 Case, Heater,no.2
87312 87312-B1020 Case, Heater,no.2
87384 87384-97201 Holder, Air Filter
87384 88892-B2010 Holder, Air Filter
87529 87529-97201 Plate, Air Filter Caution
88501 88304-B1040 Evaporator Sub-Assy, Cooler, No.1
88501 88304-97201 Evaporator Sub-Assy, Cooler, No.1
88501 88304-B1010 Evaporator Sub-Assy, Cooler, No.1
88508 88568-B1010 Filter Sub-Assy, Air
88510 87126-87501 Clamp, Heater, No.3
88515 88515-97502 Valve, Cooler Expansion
88515 88515-B1030 Valve, Cooler Expansion
88515 88515-97204 Valve, Cooler Expansion
88521 88629-97202 Packing (For Cooler Unit Case)
88522 88522-97201 Door, Cooling Unit
88522 88527-97202 Door, Cooling Unit No.2
88522 88522-97202 Door, Cooling Unit No.2
88539 88539-B1010 Hose, Cooler Unit Drain, No.1
88550 88550-97203 Motor Assy, Blower, Rear No.2
88613 88613-97201 Lever, Cooler Control, No.1
88613 88613-97202 Lever, Cooler Control, No.2
88625 88625-B1070 Thermistor, Cooler, No.1
88625 88625-97208 Thermistor, Cooler, No.1
88625 88625-B1030 Thermistor, Cooler, No.1
88897 88897-B1020 Grommet, (For Cooler Pipe)
88899 88899-B1010 Cover, Evaporator
88899 88899-B2010 Cover, Evaporator
1518887402 15188-87402 Ring, O
1518887403 15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)
8719387101 87193-87101 SCREW TAPPING
8835387601 88353-87601 Seal, Compressor Tip, No.1
9004119184 90041-19184 New Genuine Part
9004120075 90041-20075 New Genuine Part
9004179111 90041-79111 Nut, Wing (For Battery Clamp Bolt)
9009900968 90099-00968 Screw(For Air Conditioner Unit)
