KGC10

Toyota PASSO · 2004 · 3,347 parts · 188 categories

3,347 items

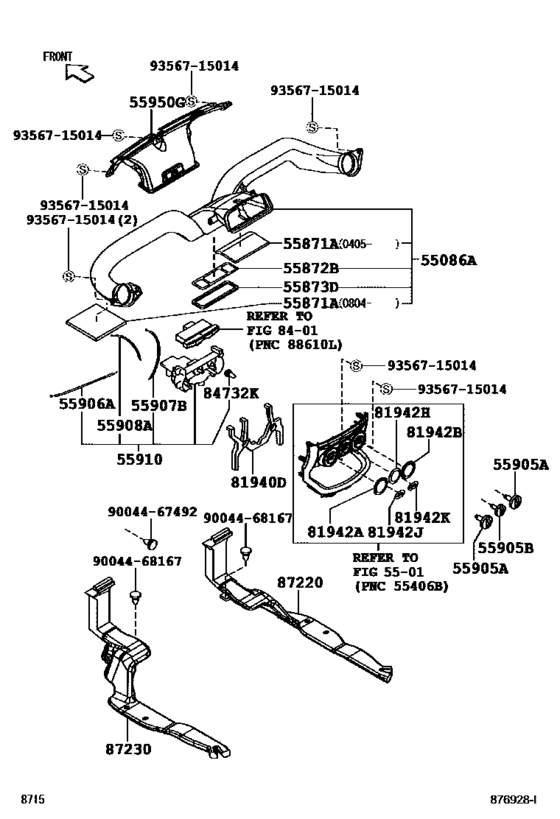

Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002)) 42

#	OEM	Part name
55086	55086-B1010	Duct Sub-Assy, Heater To Register, Center
55086	55086-B1030	Duct Sub-Assy, Heater To Register, Center
55871	55871-B1010	Seal, Air Duct, No.1
55872	55872-B1010	Seal, Air Duct,no.2
55873	55873-B1010	Seal, Air Duct, Center
55905	55905-B1040	Knob, Heater Control
55905	55905-B1050	Knob, Heater Control, No.2
55905	55905-B1020	Knob, Heater Control
55905	55905-B1060	Knob, Heater Control
55905	55905-B1100	Knob, Heater Control
55905	55905-B1030	Knob, Heater Control, No.2
55905	55905-B1070	Knob, Heater Control, No.2
55905	55905-B1110	Knob, Heater Control, No.2
55906	55906-B1010	Cable Sub-Assy, Defroster Damper Control
55907	55907-B1010	Cable Sub-Assy, Temperature Damper Control
55908	55908-B1010	Cable Sub-Assy, Air Inlet Damper Control
55910	55902-B1030	Control Assy, Heater Or Boost Ventilator
55910	55902-B1010	Control Assy, Heater Or Boost Ventilator
55950	55950-B1010	Nozzle Assy, Defroster
81940	81940-B1010	Lens Assy, Heater Control
81942	81942-B1080	Sheet, Heater Control Name, No.1
81942	81942-B1100	Sheet, Heater Control Name, No.2
81942	81942-B1090	Sheet, Heater Control Name, No.3
81942	81942-B1110	Sheet, Heater Control Name, No.4
81942	81942-B1120	Sheet, Heater Control Name, No.5
81942	81942-B1030	Sheet, Heater Control Name, No.1
81942	81942-B1160	Sheet, Heater Control Name, No.1
81942	81942-B1050	Sheet, Heater Control Name, No.2
81942	81942-B1040	Sheet, Heater Control Name, No.3
81942	81942-B1170	Sheet, Heater Control Name, No.3
81942	81942-B1060	Sheet, Heater Control Name, No.4
81942	81942-B1180	Sheet, Heater Control Name, No.4
81942	81942-B1070	Sheet, Heater Control Name, No.5
81942	81942-B1190	Sheet, Heater Control Name, No.5
84732	81936-B1020	Bulb, Heater Blower Switch
87220	87220-B1010	Duct Assy, Air
87230	87230-B1010	Duct Assy, Air, Heater
9004467492	90044-67492	Clip, Air Duct
9004468167	90044-68167	Clip, Air Duct
9004468167	90044-68167-01	Clip, Air Duct
9356715014	93567-15014	Direct
9356715014	93568-55014	Screw

OEM	Part name	Category
55086-B1010	Duct Sub-Assy, Heater To Register, Center	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55086-B1030	Duct Sub-Assy, Heater To Register, Center	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55871-B1010	Seal, Air Duct, No.1	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55872-B1010	Seal, Air Duct,no.2	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55873-B1010	Seal, Air Duct, Center	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55902-B1010	Control Assy, Heater Or Boost Ventilator	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55902-B1030	Control Assy, Heater Or Boost Ventilator	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1020	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1030	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1040	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1050	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1060	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1070	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1100	Knob, Heater Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55905-B1110	Knob, Heater Control, No.2	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55906-B1010	Cable Sub-Assy, Defroster Damper Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55907-B1010	Cable Sub-Assy, Temperature Damper Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55908-B1010	Cable Sub-Assy, Air Inlet Damper Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
55950-B1010	Nozzle Assy, Defroster	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81936-B1020	Bulb, Heater Blower Switch	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81940-B1010	Lens Assy, Heater Control	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1030	Sheet, Heater Control Name, No.1	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1040	Sheet, Heater Control Name, No.3	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1050	Sheet, Heater Control Name, No.2	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1060	Sheet, Heater Control Name, No.4	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1070	Sheet, Heater Control Name, No.5	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1080	Sheet, Heater Control Name, No.1	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1090	Sheet, Heater Control Name, No.3	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1100	Sheet, Heater Control Name, No.2	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1110	Sheet, Heater Control Name, No.4	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1120	Sheet, Heater Control Name, No.5	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1160	Sheet, Heater Control Name, No.1	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1170	Sheet, Heater Control Name, No.3	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1180	Sheet, Heater Control Name, No.4	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
81942-B1190	Sheet, Heater Control Name, No.5	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
87220-B1010	Duct Assy, Air	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
87230-B1010	Duct Assy, Air, Heater	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
90044-67492	Clip, Air Duct	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
90044-68167	Clip, Air Duct	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
90044-68167-01	Clip, Air Duct	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
93567-15014	Direct	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
93568-55014	Screw	Heating & Air Conditioning - Control & Air Duct ([05.2004 - 02.2010] (0405-1002))
