Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

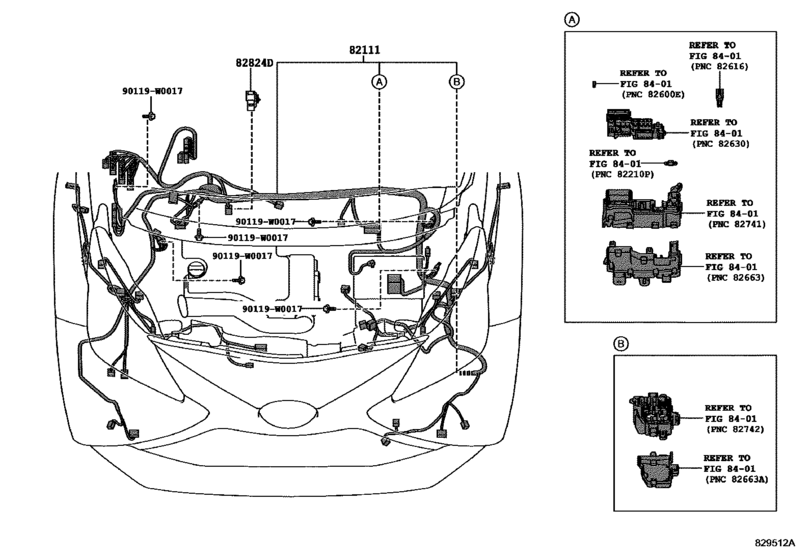

Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD) 20

#	OEM	Part name
82111	82111-0HF90	Wire, Engine Room Main
82111	82111-0HG10	Wire, Engine Room Main
82111	82111-0HG20	Wire, Engine Room Main
82111	82111-0HG30	Wire, Engine Room Main
82111	82111-0HG40	Wire, Engine Room Main
82111	82111-0HP60	Wire, Engine Room Main
82111	82111-0HP61	Wire, Engine Room Main
82111	82111-0HP70	Wire, Engine Room Main
82111	82111-0HP71	Wire, Engine Room Main
82111	82111-0HP80	Wire, Engine Room Main
82111	82111-0HP81	Wire, Engine Room Main
82111	82111-0HP90	Wire, Engine Room Main
82111	82111-0HP91	Wire, Engine Room Main
82111	82111-0HT30	Wire, Engine Room Main
82111	82111-0HT31	Wire, Engine Room Main
82111	82111-0HP50	Wire, Engine Room Main
82111	82111-0HP51	Wire, Engine Room Main
82824	90980-11300	Connector, Wiring Harness
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER

OEM	Part name	Category
82111-0HF90	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HG10	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HG20	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HG30	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HG40	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP50	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP51	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP60	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP61	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP70	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP71	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP80	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP81	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP90	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HP91	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HT30	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
82111-0HT31	Wire, Engine Room Main	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
90119-06390	BOLT WWASHER	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
90119-W0017	New Genuine Part	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)
90980-11300	Connector, Wiring Harness	Wiring & Clamp ([05.2014 - ] ENGINE ROOM (1405- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 171
Collected: 2026-08-02
