Search › Model › KGB40
KGB40

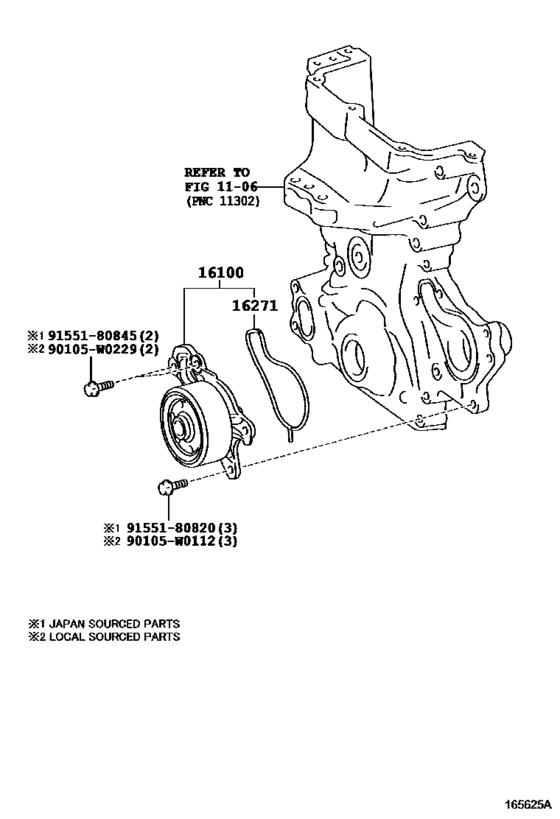

Water Pump ([05.2014 - ] (1405- )1KRFE) 7
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-09640 | Pump Assy, Engine Water |
| 16100 | 16100-09641 | Pump Assy, Engine Water |
| 16271 | 16271-0Q020 | Gasket, Water Pump |
| 90105 | 90105-W0112 | BOLT FLANGE |
| 90105 | 90105-W0229 | New Genuine Part |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9155180845 | 91551-80845 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 16100-09640 | Pump Assy, Engine Water | Water Pump ([05.2014 - ] (1405- )1KRFE) |
| 16100-09641 | Pump Assy, Engine Water | Water Pump ([05.2014 - ] (1405- )1KRFE) |
| 16271-0Q020 | Gasket, Water Pump | Water Pump ([05.2014 - ] (1405- )1KRFE) |
| 90105-W0112 | BOLT FLANGE | Water Pump ([05.2014 - ] (1405- )1KRFE) |
| 90105-W0229 | New Genuine Part | Water Pump ([05.2014 - ] (1405- )1KRFE) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Water Pump ([05.2014 - ] (1405- )1KRFE) |
| 91551-80845 | BOLT FLANGE | Water Pump ([05.2014 - ] (1405- )1KRFE) |
