KGB40

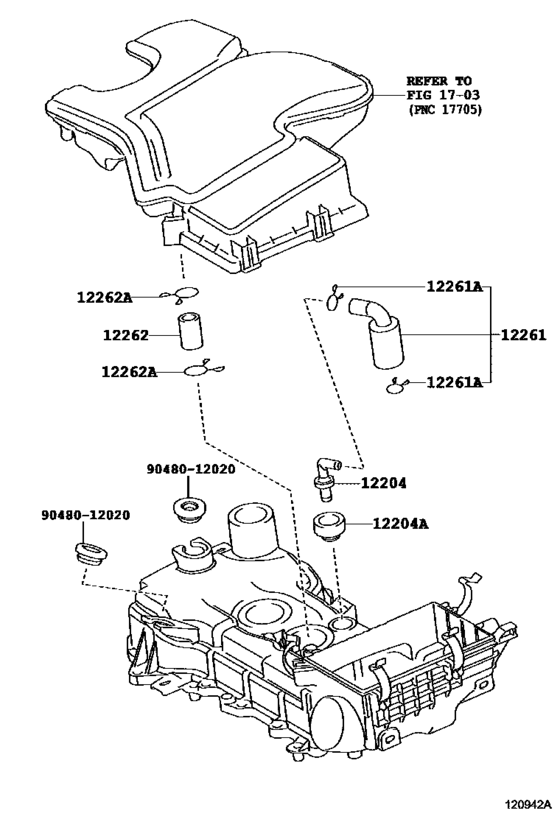

Ventilation Hose ([05.2014 - ] (1405- )1KRFE) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-40040 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18016 | Grommet(For Ventilation System) |
| 12261 | 12261-40040 | Hose, Ventilation |
| 12261 | 90467-15120 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-40040 | Hose, Ventilation, No.2 |
| 12262 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 9048012020 | 90480-12020 | Grommet(For Ventilation System) |
| OEM | Part name | Category |
|---|---|---|
| 12204-40040 | Valve Sub-Assy, Ventilation | Ventilation Hose ([05.2014 - ] (1405- )1KRFE) |
| 12261-40040 | Hose, Ventilation | Ventilation Hose ([05.2014 - ] (1405- )1KRFE) |
| 12262-40040 | Hose, Ventilation, No.2 | Ventilation Hose ([05.2014 - ] (1405- )1KRFE) |
| 90467-15120 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.2014 - ] (1405- )1KRFE) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.2014 - ] (1405- )1KRFE) |
| 90480-12020 | Grommet(For Ventilation System) | Ventilation Hose ([05.2014 - ] (1405- )1KRFE) |
| 90480-18016 | Grommet(For Ventilation System) | Ventilation Hose ([05.2014 - ] (1405- )1KRFE) |
