KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories
KGB40 ×

← Back to categories

2,423 items

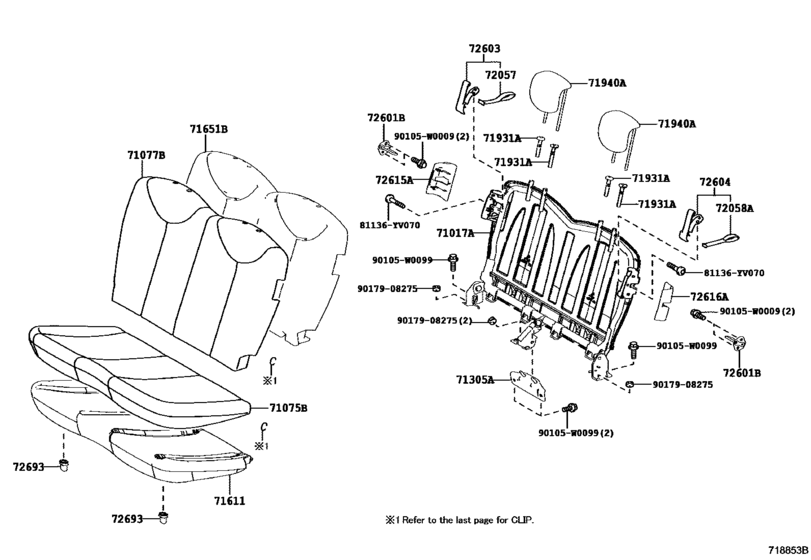

Rear Seat & Seat Track ([05.2014 - ] UNITED SEAT (1405- )) 31
#OEMPart name
71017 71017-YV040 Frame Sub-Assy, Rear Seat Back
71017 71017-YV030 Frame Sub-Assy, Rear Seat Back
71075 71075-YV070-C0 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-YV080-B1 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-YV080-C2 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-YV080-C3 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-YV090-B2 Cover, Rear Seat Cushion (For Bench Type)
71075 71075-YV100-B2 Cover, Rear Seat Cushion (For Bench Type)
71077 71077-YV030-C0 Cover, Rear Seat Back (For Bench Type)
71305 71035-YV010 Hinge Sub-Assy, Rear Seat Back, Center
71611 71503-YV020 Pad, Rear Seat Cushion
71651 71651-YV030 Pad, Rear Seat Back(For Bench Type)
71931 71956-YV010 Support, Rear Seat Headrest
71931 71970-YV010 Support, Rear Seat Headrest
71940 71940-YV020-C1 Headrest Assy, Rear Seat
71940 71940-YV040-B0 Headrest Assy, Rear Seat
71940 71940-YV040-C1 Headrest Assy, Rear Seat
71940 71940-YV040-C2 Headrest Assy, Rear Seat
71940 71940-YV060-B0 Headrest Assy, Rear Seat
71940 71940-YV070-B0 Headrest Assy, Rear Seat
72057 72057-YV010-B9 Lever Sub-Assy, Rear Seat Lock Control, Rh
72601 72601-0H011 Striker Sub-Assy, Rear Seat Back Lock
72603 72603-YV010 Lock Sub-Assy, Rear Seat Back, Rh
72604 72604-YV010 Lock Sub-Assy, Rear Seat Back, Lh
72615 72615-YV010-B0 Cover, Rear Seat Back Lock Striker, Rh
72616 72616-YV010-B0 Cover, Rear Seat Back Lock Striker, Lh
72693 72693-12080 Hook, Rear Seat Cushion Lock
81136 81136-YV070 Protector, Headlamp, No.1 Rh
90105 90105-W0009 New Genuine Part
90105 90105-W0099 New Genuine Part
9017908275 90179-08275 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 12
Category
171
Collected
2026-08-02
