Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

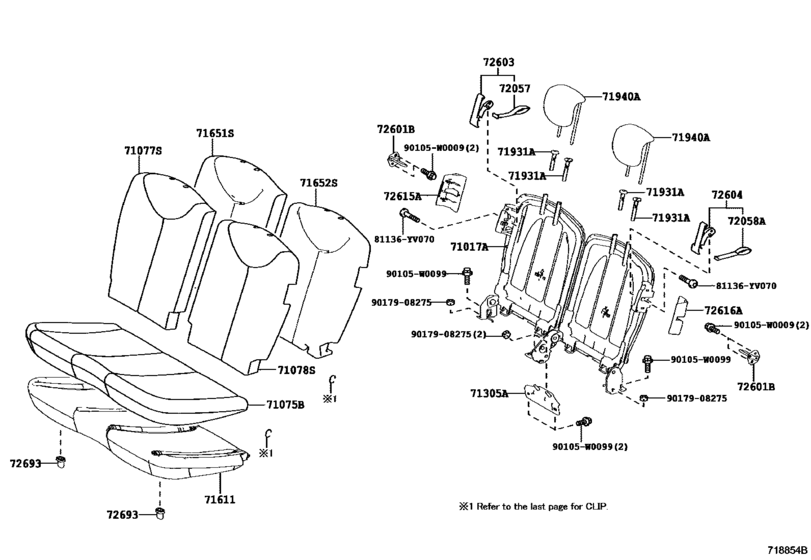

Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- )) 41

#	OEM	Part name
71017	71017-YV040	Frame Sub-Assy, Rear Seat Back
71017	71017-YV030	Frame Sub-Assy, Rear Seat Back
71075	71075-YV070-C0	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-YV080-B1	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-YV080-C2	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-YV080-C3	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-YV090-B2	Cover, Rear Seat Cushion (For Bench Type)
71075	71075-YV100-B2	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-YV040-B3	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-YV040-C4	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-YV040-C6	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-YV090-B4	Cover, Rear Seat Back, Rh (For Separate Type)
71077	71077-YV100-B4	Cover, Rear Seat Back, Rh (For Separate Type)
71078	71078-YV060-B3	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-YV060-C4	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-YV060-C6	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-YV070-B4	Cover, Rear Seat Back, Lh(For Separate Type)
71078	71078-YV080-B4	Cover, Rear Seat Back, Lh(For Separate Type)
71305	71035-YV010	Hinge Sub-Assy, Rear Seat Back, Center
71611	71503-YV020	Pad, Rear Seat Cushion
71651	71651-YV040	Pad, Rear Seat Back, Rh(For Separate Type)
71652	71652-YV020	Pad, Rear Seat Back, Lh(For Separate Type)
71931	71956-YV010	Support, Rear Seat Headrest
71931	71970-YV010	Support, Rear Seat Headrest
71940	71940-YV020-C1	Headrest Assy, Rear Seat
71940	71940-YV040-B0	Headrest Assy, Rear Seat
71940	71940-YV040-C1	Headrest Assy, Rear Seat
71940	71940-YV040-C2	Headrest Assy, Rear Seat
71940	71940-YV060-B0	Headrest Assy, Rear Seat
71940	71940-YV070-B0	Headrest Assy, Rear Seat
72057	72057-YV010-B9	Lever Sub-Assy, Rear Seat Lock Control, Rh
72601	72601-0H011	Striker Sub-Assy, Rear Seat Back Lock
72603	72603-YV010	Lock Sub-Assy, Rear Seat Back, Rh
72604	72604-YV010	Lock Sub-Assy, Rear Seat Back, Lh
72615	72615-YV010-B0	Cover, Rear Seat Back Lock Striker, Rh
72616	72616-YV010-B0	Cover, Rear Seat Back Lock Striker, Lh
72693	72693-12080	Hook, Rear Seat Cushion Lock
81136	81136-YV070	Protector, Headlamp, No.1 Rh
90105	90105-W0009	New Genuine Part
90105	90105-W0099	New Genuine Part
9017908275	90179-08275	New Genuine Part

OEM	Part name	Category
71017-YV030	Frame Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71017-YV040	Frame Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71035-YV010	Hinge Sub-Assy, Rear Seat Back, Center	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71075-YV070-C0	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71075-YV080-B1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71075-YV080-C2	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71075-YV080-C3	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71075-YV090-B2	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71075-YV100-B2	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71077-YV040-B3	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71077-YV040-C4	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71077-YV040-C6	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71077-YV090-B4	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71077-YV100-B4	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71078-YV060-B3	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71078-YV060-C4	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71078-YV060-C6	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71078-YV070-B4	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71078-YV080-B4	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71503-YV020	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71651-YV040	Pad, Rear Seat Back, Rh(For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71652-YV020	Pad, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71940-YV020-C1	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71940-YV040-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71940-YV040-C1	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71940-YV040-C2	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71940-YV060-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71940-YV070-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71956-YV010	Support, Rear Seat Headrest	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
71970-YV010	Support, Rear Seat Headrest	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
72057-YV010-B9	Lever Sub-Assy, Rear Seat Lock Control, Rh	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
72601-0H011	Striker Sub-Assy, Rear Seat Back Lock	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
72603-YV010	Lock Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
72604-YV010	Lock Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
72615-YV010-B0	Cover, Rear Seat Back Lock Striker, Rh	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
72616-YV010-B0	Cover, Rear Seat Back Lock Striker, Lh	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
72693-12080	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
81136-YV070	Protector, Headlamp, No.1 Rh	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
90105-W0009	New Genuine Part	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
90105-W0099	New Genuine Part	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))
90179-08275	New Genuine Part	Rear Seat & Seat Track ([05.2014 - ] 5:5 SPLIT SEAT (1405- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 171
Collected: 2026-08-02
