Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

← Back to categories

2,423 items

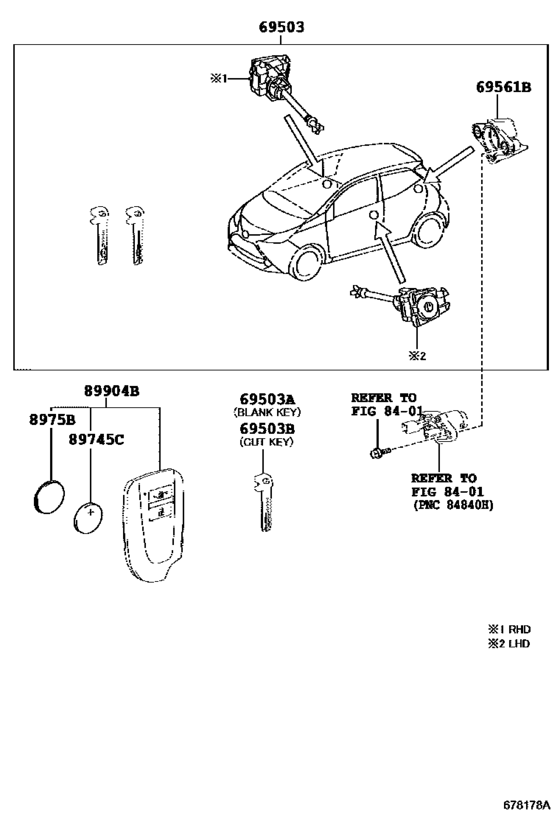

Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- )) 9

#	OEM	Part name
69503	69005-0H070	Cylinder Set, Lock
69503	89704-0H100	Cylinder Set, Lock
69503	89704-0H101	Cylinder Set, Lock
69503	69005-0H100	Cylinder Set, Lock
69503	69515-0H080	Key, Blank
69503	69515-0H060	Key, Cut
69561	69561-0H050	Retainer, Back Door Lock Cylinder
89745	89745-50020	Battery, Transmitter
89904	89904-0H010	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-0H070	Cylinder Set, Lock	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
69005-0H100	Cylinder Set, Lock	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
69515-0H060	Key, Cut	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
69515-0H080	Key, Blank	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
69561-0H050	Retainer, Back Door Lock Cylinder	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
89704-0H100	Cylinder Set, Lock	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
89704-0H101	Cylinder Set, Lock	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
89745-50020	Battery, Transmitter	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))
89904-0H010	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([05.2014 - ] W(SMART ENTRY) (1405- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 171
Collected: 2026-08-02
