KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

← Back to categories

2,423 items

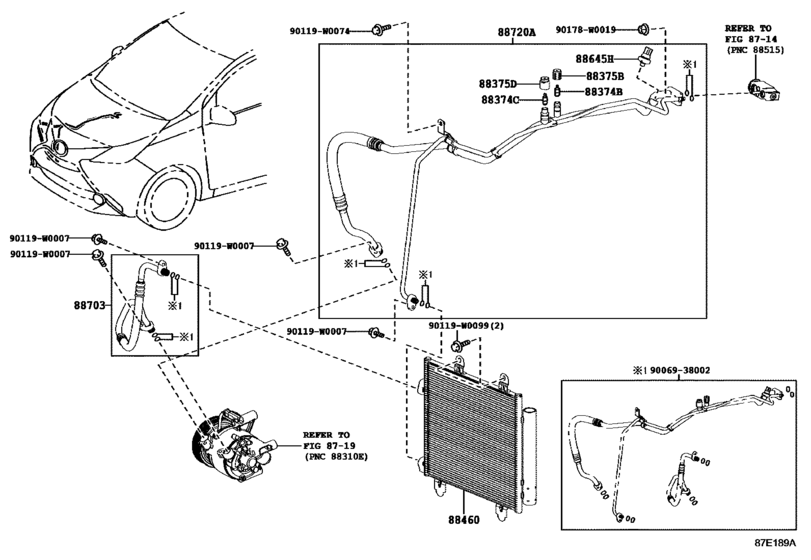

Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40) 19

#	OEM	Part name
88374	88374-YV010	Valve, Service, No.1
88374	88374-YV030	Valve, Service, No.1
88374	88374-YV020	Valve, Service, No.2
88374	88374-YV040	Valve, Service, No.2
88375	88375-YV010	Cap, Service Valve, No.1
88375	88375-YV030	Cap, Service Valve, No.1
88375	88375-YV020	Cap, Service Valve, No.2
88375	88375-YV040	Cap, Service Valve, No.2
88460	88450-YV010	Condenser Assy, Cooler
88460	88450-YV020	Condenser Assy, Cooler
88645	88645-YV010	Switch, Pressure No.1
88703	88703-YV010	Hose Sub-Assy, Discharge
88720	88720-YV030	Hose & Accessory, Air Conditioner
88720	88720-YV050	Hose & Accessory, Air Conditioner
90119	90119-W0007	New Genuine Part
90119	90119-W0074	New Genuine Part
90119	90119-W0099	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
9006938002	90069-38002	New Genuine Part

OEM	Part name	Category
88374-YV010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88374-YV020	Valve, Service, No.2	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88374-YV030	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88374-YV040	Valve, Service, No.2	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88375-YV010	Cap, Service Valve, No.1	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88375-YV020	Cap, Service Valve, No.2	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88375-YV030	Cap, Service Valve, No.1	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88375-YV040	Cap, Service Valve, No.2	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88450-YV010	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88450-YV020	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88645-YV010	Switch, Pressure No.1	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88703-YV010	Hose Sub-Assy, Discharge	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88720-YV030	Hose & Accessory, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
88720-YV050	Hose & Accessory, Air Conditioner	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
90069-38002	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
90119-W0007	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
90119-W0074	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
90119-W0099	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Heating & Air Conditioning - Cooler Piping ([05.2014 - ] (1405- )KGB40)
