Search › Model › KGB40
KGB40

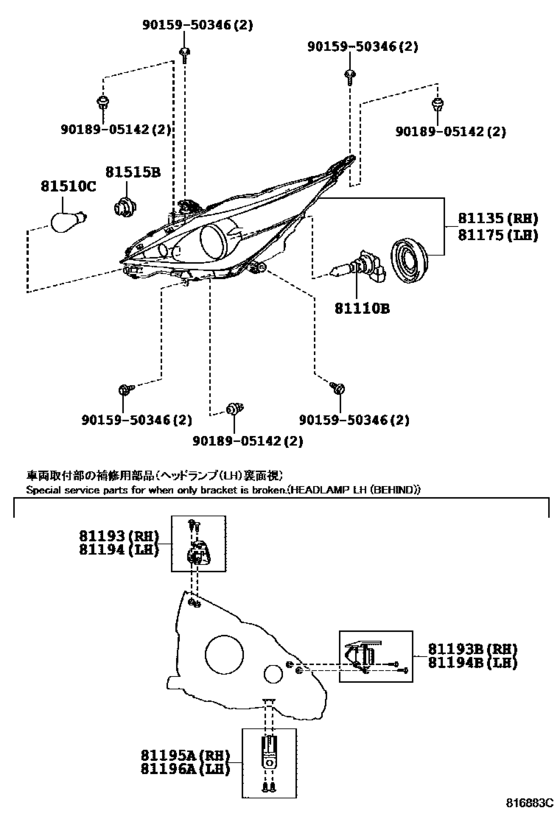

Headlamp ([05.2014 - ] (1405- )) 15
| # | OEM | Part name |
|---|---|---|
| 81110 | 90981-13062 | Bulb(For Headlamp, No.1) |
| 81135 | 81130-0H140 | Unit Assy, Headlamp, Rh |
| 81135 | 81130-0H141 | Unit Assy, Headlamp, Rh |
| 81175 | 81170-0H140 | Unit Assy, Headlamp, Lh |
| 81175 | 81170-0H141 | Unit Assy, Headlamp, Lh |
| 81193 | 81193-0H040 | Retainer, Headlamp Protector, Upper Rh |
| 81193 | 81193-0H050 | Retainer, Headlamp Protector, Upper Rh No.2 |
| 81194 | 81194-0H040 | Retainer, Headlamp Protector, Upper Lh |
| 81194 | 81194-0H050 | Retainer, Headlamp Protector, Upper Lh No.2 |
| 81195 | 81193-0H060 | Retainer, Headlamp Protector, Lower Rh |
| 81196 | 81194-0H060 | Retainer, Headlamp Protector, Lower Lh |
| 81510 | 99132-11210 | Bulb (12V 21W) |
| 81515 | 90069-81103 | Socket, Front Turn Signal Lamp |
| 9015950346 | 90159-50346 | SCREW |
| 9018905142 | 90189-05142 | GROMMET, SCREW |
| OEM | Part name | Category |
|---|---|---|
| 81130-0H140 | Unit Assy, Headlamp, Rh | Headlamp ([05.2014 - ] (1405- )) |
| 81130-0H141 | Unit Assy, Headlamp, Rh | Headlamp ([05.2014 - ] (1405- )) |
| 81170-0H140 | Unit Assy, Headlamp, Lh | Headlamp ([05.2014 - ] (1405- )) |
| 81170-0H141 | Unit Assy, Headlamp, Lh | Headlamp ([05.2014 - ] (1405- )) |
| 81193-0H040 | Retainer, Headlamp Protector, Upper Rh | Headlamp ([05.2014 - ] (1405- )) |
| 81193-0H050 | Retainer, Headlamp Protector, Upper Rh No.2 | Headlamp ([05.2014 - ] (1405- )) |
| 81193-0H060 | Retainer, Headlamp Protector, Lower Rh | Headlamp ([05.2014 - ] (1405- )) |
| 81194-0H040 | Retainer, Headlamp Protector, Upper Lh | Headlamp ([05.2014 - ] (1405- )) |
| 81194-0H050 | Retainer, Headlamp Protector, Upper Lh No.2 | Headlamp ([05.2014 - ] (1405- )) |
| 81194-0H060 | Retainer, Headlamp Protector, Lower Lh | Headlamp ([05.2014 - ] (1405- )) |
| 90069-81103 | Socket, Front Turn Signal Lamp | Headlamp ([05.2014 - ] (1405- )) |
| 90159-50346 | SCREW | Headlamp ([05.2014 - ] (1405- )) |
| 90189-05142 | GROMMET, SCREW | Headlamp ([05.2014 - ] (1405- )) |
| 90981-13062 | Bulb(For Headlamp, No.1) | Headlamp ([05.2014 - ] (1405- )) |
| 99132-11210 | Bulb (12V 21W) | Headlamp ([05.2014 - ] (1405- )) |
