Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

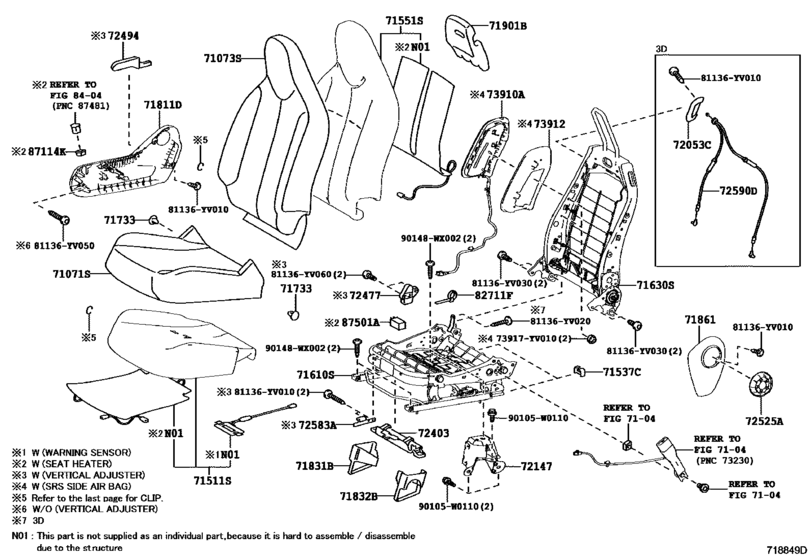

Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- )) 48

#	OEM	Part name
71071	71071-YV060-C3	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-YV070-B2	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-YV070-C3	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-YV070-C4	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-YV070-C5	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-YV070-C6	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-YV080-B2	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-YV090-B4	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-YV170-C2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV240-C2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV190-B2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV220-B1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV220-C2	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV220-C3	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV220-C4	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV220-C5	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-YV400-B1	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-YV030	Pad, Front Seat Cushion, Rh(For Separate Type)
71537	71537-YV010	Protector, Front Seat Cushion Edge, Rh
71551	71551-YV030	Pad, Front Seat Back, Rh(For Separate Type)
71551	71551-YV050	Pad, Front Seat Back, Rh(For Separate Type)
71610	71610-YV020	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610	71610-YV040	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630	71630-YV020	Spring Assy, Front Seat Back, Rh(For Separate Type)
71733	71733-YV010	Retainer, Seat Cover Fastener, A (For Front Seat)
71811	71811-YV010-B0	Shield, Front Seat Cushion, Rh
71811	71811-YV030-B0	Shield, Front Seat Cushion, Rh
71831	71831-YV010	Cover, Front Seat Hinge, Rh
71832	71832-YV010	Cover, Front Seat Hinge, Lh
71861	71861-YV010-B0	Shield, Front Seat Cushion, Inner Rh
71901	71901-YV010	Insert Sub-Assy, Front Seat Headrest
72147	72147-0H010	Bracket, Front Inner Seat Track, Lower Rear Rh - FRONT INNER SEAT TRACK, LOEWR REAR RH
72403	72403-YV010	Bracket Sub-Assy, Seat Frame Set
72477	72477-YV010	Spacer, Vertical Adjuster
72494	72494-YV010-B0	Handle, Vertical Adjusting, Rh
72525	72525-YV030-B4	Handle, Reclining Adjuster Release, Rh
72583	72583-YV010	Bracket, Seat Side Garnish, Rh
73910	73910-YV020-B3	Air Bag Assy, Front Seat, Rh
73912	73912-YV020	Case, Seat Air Bag, Rh
73917	73917-YV010	Hook, Seat Air Bag
81136	81136-YV010	Protector, Headlamp, No.1 Rh
81136	81136-YV020	Protector, Headlamp, No.1 Rh
81136	81136-YV030	Protector, Headlamp, No.1 Rh
81136	81136-YV050	Protector, Headlamp, No.1 Rh
81136	81136-YV060	Protector, Headlamp, No.1 Rh
82711	82711-YV020	Clamp, Wiring Harness
90105	90105-W0110	New Genuine Part
90148	90148-WX002	New Genuine Part

OEM	Part name	Category
71071-YV060-C3	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71071-YV070-B2	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71071-YV070-C3	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71071-YV070-C4	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71071-YV070-C5	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71071-YV070-C6	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71071-YV080-B2	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71071-YV090-B4	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV170-C2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV190-B2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV220-B1	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV220-C2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV220-C3	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV220-C4	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV220-C5	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV240-C2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71073-YV400-B1	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71511-YV030	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71537-YV010	Protector, Front Seat Cushion Edge, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71551-YV030	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71551-YV050	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71610-YV020	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71610-YV040	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71630-YV020	Spring Assy, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71733-YV010	Retainer, Seat Cover Fastener, A (For Front Seat)	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71811-YV010-B0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71811-YV030-B0	Shield, Front Seat Cushion, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71831-YV010	Cover, Front Seat Hinge, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71832-YV010	Cover, Front Seat Hinge, Lh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71861-YV010-B0	Shield, Front Seat Cushion, Inner Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
71901-YV010	Insert Sub-Assy, Front Seat Headrest	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
72147-0H010	Bracket, Front Inner Seat Track, Lower Rear Rh - FRONT INNER SEAT TRACK, LOEWR REAR RH	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
72403-YV010	Bracket Sub-Assy, Seat Frame Set	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
72477-YV010	Spacer, Vertical Adjuster	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
72494-YV010-B0	Handle, Vertical Adjusting, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
72525-YV030-B4	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
72583-YV010	Bracket, Seat Side Garnish, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
73910-YV020-B3	Air Bag Assy, Front Seat, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
73912-YV020	Case, Seat Air Bag, Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
73917-YV010	Hook, Seat Air Bag	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
81136-YV010	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
81136-YV020	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
81136-YV030	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
81136-YV050	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
81136-YV060	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
82711-YV020	Clamp, Wiring Harness	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
90105-W0110	New Genuine Part	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
90148-WX002	New Genuine Part	Front Seat & Seat Track ([05.2014 - ] RH SEAT (1405- ))
