Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

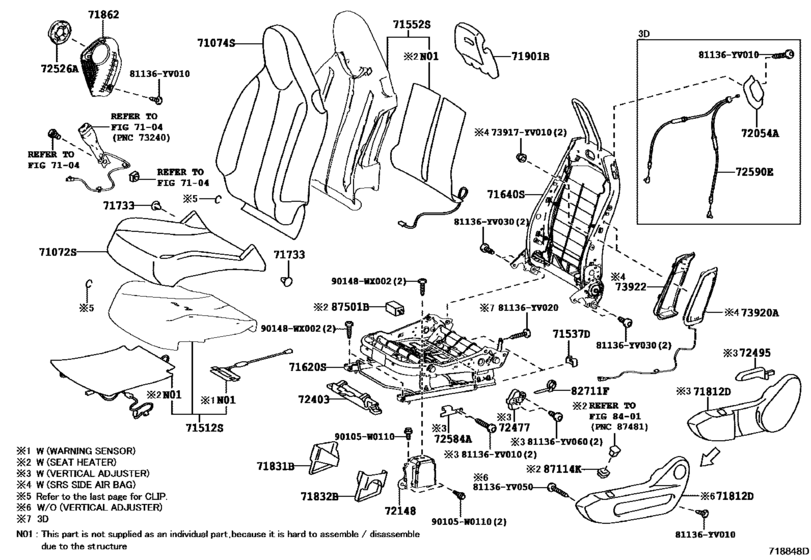

Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- )) 45

#	OEM	Part name
71072	71072-YV010-C3	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-YV020-B2	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-YV060-B4	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-YV100-B2	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-YV100-C3	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-YV100-C4	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-YV100-C5	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-YV100-C6	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71073-YV240-C2	Cover, Front Seat Back, Rh(For Separate Type)
71074	71074-YV090-C2	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-YV110-B2	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-YV150-B1	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-YV150-C2	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-YV150-C3	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-YV150-C4	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-YV150-C5	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-YV200-B1	Cover, Front Seat Back, Lh(For Separate Type)
71512	71502-YV010	Pad, Front Seat Cushion, Lh (For Separate Type)
71512	71512-YV010	Pad, Front Seat Cushion, Lh (For Separate Type)
71537	71537-YV010	Protector, Front Seat Cushion Edge, Rh
71552	71551-YV030	Pad, Front Seat Back, Rh(For Separate Type)
71552	71552-YV030	Pad, Front Seat Back, Lh(For Separate Type)
71620	71620-YV020	Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71640	71640-YV020	Spring Assy, Front Seat Back, Lh(For Separate Type)
71733	71733-YV010	Retainer, Seat Cover Fastener, A (For Front Seat)
71812	71812-YV010-B0	Shield, Front Seat Cushion, Lh
71831	71831-YV010	Cover, Front Seat Hinge, Rh
71832	71832-YV010	Cover, Front Seat Hinge, Lh
71862	71862-YV010-B0	Shield, Front Seat Cushion, Inner Lh
71901	71901-YV010	Insert Sub-Assy, Front Seat Headrest
72148	72148-0H010	Bracket, Front Inner Seat Track, Lower Rear Lh
72403	72403-YV010	Bracket Sub-Assy, Seat Frame Set
72477	72477-YV010	Spacer, Vertical Adjuster
72526	72525-YV030-B4	Handle, Reclining Adjuster Release, Rh
73917	73917-YV010	Hook, Seat Air Bag
73920	73920-YV020-B3	Air Bag Assy, Front Seat, Lh
73922	73922-YV020	Case, Seat Air Bag, Lh
81136	81136-YV010	Protector, Headlamp, No.1 Rh
81136	81136-YV020	Protector, Headlamp, No.1 Rh
81136	81136-YV030	Protector, Headlamp, No.1 Rh
81136	81136-YV050	Protector, Headlamp, No.1 Rh
81136	81136-YV060	Protector, Headlamp, No.1 Rh
82711	82711-YV020	Clamp, Wiring Harness
90105	90105-W0110	New Genuine Part
90148	90148-WX002	New Genuine Part

OEM	Part name	Category
71072-YV010-C3	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71072-YV020-B2	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71072-YV060-B4	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71072-YV100-B2	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71072-YV100-C3	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71072-YV100-C4	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71072-YV100-C5	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71072-YV100-C6	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71073-YV240-C2	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV090-C2	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV110-B2	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV150-B1	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV150-C2	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV150-C3	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV150-C4	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV150-C5	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71074-YV200-B1	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71502-YV010	Pad, Front Seat Cushion, Lh (For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71512-YV010	Pad, Front Seat Cushion, Lh (For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71537-YV010	Protector, Front Seat Cushion Edge, Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71551-YV030	Pad, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71552-YV030	Pad, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71620-YV020	Spring Assy, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71640-YV020	Spring Assy, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71733-YV010	Retainer, Seat Cover Fastener, A (For Front Seat)	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71812-YV010-B0	Shield, Front Seat Cushion, Lh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71831-YV010	Cover, Front Seat Hinge, Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71832-YV010	Cover, Front Seat Hinge, Lh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71862-YV010-B0	Shield, Front Seat Cushion, Inner Lh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
71901-YV010	Insert Sub-Assy, Front Seat Headrest	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
72148-0H010	Bracket, Front Inner Seat Track, Lower Rear Lh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
72403-YV010	Bracket Sub-Assy, Seat Frame Set	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
72477-YV010	Spacer, Vertical Adjuster	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
72525-YV030-B4	Handle, Reclining Adjuster Release, Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
73917-YV010	Hook, Seat Air Bag	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
73920-YV020-B3	Air Bag Assy, Front Seat, Lh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
73922-YV020	Case, Seat Air Bag, Lh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
81136-YV010	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
81136-YV020	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
81136-YV030	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
81136-YV050	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
81136-YV060	Protector, Headlamp, No.1 Rh	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
82711-YV020	Clamp, Wiring Harness	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
90105-W0110	New Genuine Part	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
90148-WX002	New Genuine Part	Front Seat & Seat Track ([05.2014 - ] LH SEAT (1405- ))
