Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

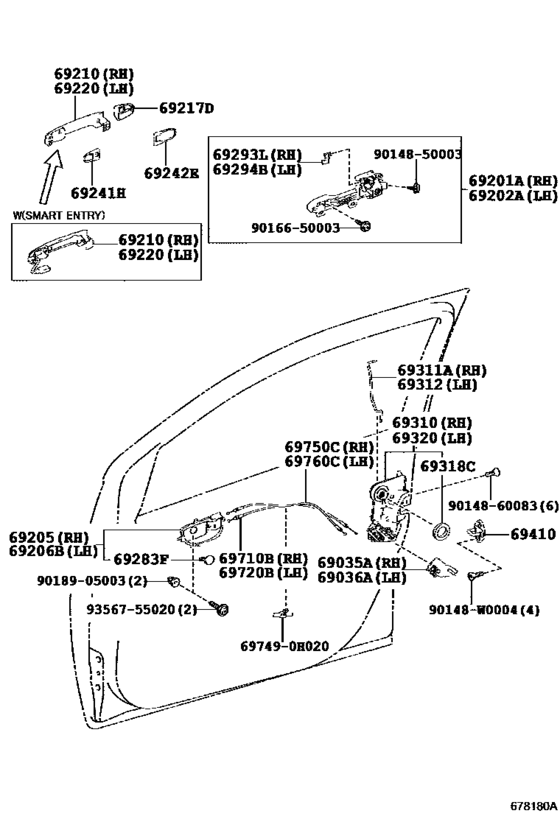

Front Door Lock & Handle ([05.2014 - ] (1405- )) 51

#	OEM	Part name
69035	69035-02020	Cover Sub-Assy, Front Door Lock, Rh
69036	69036-02020	Cover Sub-Assy, Front Door Lock, Lh
69201	69201-0H020	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-0H010	Frame Sub-Assy, Front Door Outside Handle, Lh
69202	69202-0H020	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-0D271-B0	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-0D201-B0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0D271-B0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-0D281-B0	Handle Sub-Assy, Front Door Inside, Lh
69210	69211-0H030	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-A0	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-B0	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-B1	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-C0	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-D0	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-E2	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-F0	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-J0	Handle Assy, Front Door, Outside Rh
69210	69210-0H030-J1	Handle Assy, Front Door, Outside Rh
69210	69210-0H040	Handle Assy, Front Door, Outside Rh
69210	69210-0H050	Handle Assy, Front Door, Outside Rh
69210	69211-0H900	Handle Assy, Front Door, Outside Rh
69217	69217-0H030	Cover, Front Door Outside Handle
69217	69217-0H040	Cover, Front Door Outside Handle
69217	69217-0D903	Cover, Front Door Outside Handle, Rh
69217	69217-0D904	Cover, Front Door Outside Handle, Rh
69217	69217-0H010	Cover, Front Door Outside Handle
69217	69217-0H020	Cover, Front Door Outside Handle
69241	69241-0D020	Pad, Front Door Outside Handle, Front
69242	69242-0H010	Pad, Front Door Outside Handle, Rear
69283	69283-0D010-B0	Plug, Front Door Inside Handle Bezel
69293	69293-12030	Snap, Front Door Outside Handle
69294	69293-12040	Snap, Front Door Outside Handle
69310	69030-0H050	Lock Assy, Front Door, Rh
69310	69310-0H050	Lock Assy, Front Door, Rh
69311	69311-0H030	Rod, Front Door Lock Open, Rh
69312	69312-0H030	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69320	69040-02500	Lock Assy, Front Door W/motor, Lh
69320	69320-0H050	Lock Assy, Front Door, Lh
69320	69040-0H050	Lock Assy, Front Door, Lh
69410	69410-0H020	Plate Assy, Front Door Lock Striker
69710	69710-0H030	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-0H030	Cable Assy, Front Door Inside Locking, Rh
90148	90148-W0004	New Genuine Part
697490	69749-0H020	Clamp, Front Door Lock Link
9014850003	90148-50003	Screw Hex Lobular
9014860083	90148-60083	SCREW HEXALOBULAR
9016650003	90166-50003	New Genuine Part
9018905003	90189-05003	CLIP
9356755020	93567-55020	SCREW

OEM	Part name	Category
69030-0H050	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69035-02020	Cover Sub-Assy, Front Door Lock, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69036-02020	Cover Sub-Assy, Front Door Lock, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69040-02500	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69040-0H050	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69201-0H020	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69202-0H010	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69202-0H020	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69205-0D201-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69205-0D271-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69206-0D271-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69206-0D281-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-B1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-D0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-E2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-F0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-J0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H030-J1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H040	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69210-0H050	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69211-0H030	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69211-0H900	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69217-0D903	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69217-0D904	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69217-0H010	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69217-0H020	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69217-0H030	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69217-0H040	Cover, Front Door Outside Handle	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69241-0D020	Pad, Front Door Outside Handle, Front	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69242-0H010	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69283-0D010-B0	Plug, Front Door Inside Handle Bezel	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69310-0H050	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69311-0H030	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69312-0H030	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69320-0H050	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69410-0H020	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69710-0H030	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69749-0H020	Clamp, Front Door Lock Link	Front Door Lock & Handle ([05.2014 - ] (1405- ))
69750-0H030	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([05.2014 - ] (1405- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([05.2014 - ] (1405- ))
90148-60083	SCREW HEXALOBULAR	Front Door Lock & Handle ([05.2014 - ] (1405- ))
90148-W0004	New Genuine Part	Front Door Lock & Handle ([05.2014 - ] (1405- ))
90166-50003	New Genuine Part	Front Door Lock & Handle ([05.2014 - ] (1405- ))
90189-05003	CLIP	Front Door Lock & Handle ([05.2014 - ] (1405- ))
93567-55020	SCREW	Front Door Lock & Handle ([05.2014 - ] (1405- ))
