Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

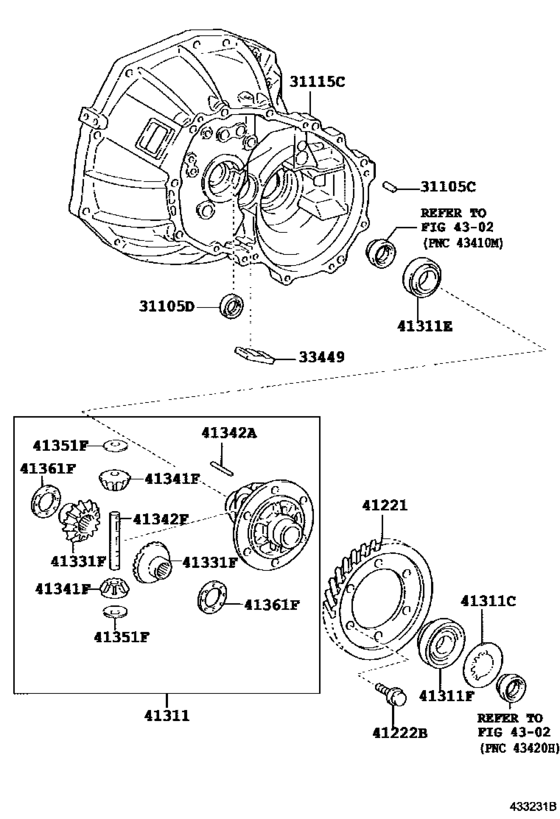

Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40) 44

#	OEM	Part name
31105	90250-W0001	Pin, Straight(For Transaxle Case)
31105	90311-W0001	Seal, Oil, No.1(For Front Transaxle Case)
31115	31115-0H010	Case, Front Transaxle(Mtm)
33449	33449-60010	Magnet, Transmission
41221	41221-0H010	Gear, Front Differential Ring
41221	41221-0H011	Gear, Front Differential Ring
41222	90105-12313	Bolt (For Front Differential Ring Gear Set)
41311	41311-0H902	Case, Front Differential
41311	90564-41065	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41066	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41067	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41068	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41069	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41070	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41071	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41072	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41073	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41074	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41075	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41076	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41077	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41078	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41079	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41080	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41081	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41082	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90564-41083	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311	90366-W0007	Bearing, Tapered Roller (For Front Differential Case Front) - TAPERED ROLLER (FOR FR DIFFERENTIAL CASE FRONT)
41311	90080-36166	Bearing, Tapered Roller (For Front Differential Case Rear) - TAPERED ROLLER (FOR FR DIFFERENTIAL CASE REAR)
41331	41331-0D060	Gear, Front Differential Side
41341	41341-0D060	Pinion, Front Differential
41342	90250-W0005	Pin, Straight (For Front Differential Pinion Shaft)
41342	41342-10041	Shaft, Front Differential Pinion, No.1
41351	41351-10030	Washer, Rear Differential Pinion Thrust
41361	41361-70010	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70020	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70030	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70040	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70050	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70060	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70070	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70080	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70090	Washer, Front Differential Side Gear Thrust, No.1
41361	41361-70100	Washer, Front Differential Side Gear Thrust, No.1

OEM	Part name	Category
31115-0H010	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
33449-60010	Magnet, Transmission	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41221-0H010	Gear, Front Differential Ring	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41221-0H011	Gear, Front Differential Ring	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41311-0H902	Case, Front Differential	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41331-0D060	Gear, Front Differential Side	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41341-0D060	Pinion, Front Differential	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41342-10041	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41351-10030	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70010	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70020	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70030	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70040	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70050	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70060	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70070	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70080	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70090	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
41361-70100	Washer, Front Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90080-36166	Bearing, Tapered Roller (For Front Differential Case Rear) - TAPERED ROLLER (FOR FR DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90105-12313	Bolt (For Front Differential Ring Gear Set)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90250-W0001	Pin, Straight(For Transaxle Case)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90250-W0005	Pin, Straight (For Front Differential Pinion Shaft)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90311-W0001	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90366-W0007	Bearing, Tapered Roller (For Front Differential Case Front) - TAPERED ROLLER (FOR FR DIFFERENTIAL CASE FRONT)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41065	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41066	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41067	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41068	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41069	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41070	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41071	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41072	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41073	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41074	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41075	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41076	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41077	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41078	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41079	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41080	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41081	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41082	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
90564-41083	Shim (For Front Differential Case Rear) - PLATE (FOR FRONT DIFFERENTIAL CASE REAR)	Front Axle Housing & Differential ([05.2014 - ] (1405- )KGB40)
