Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

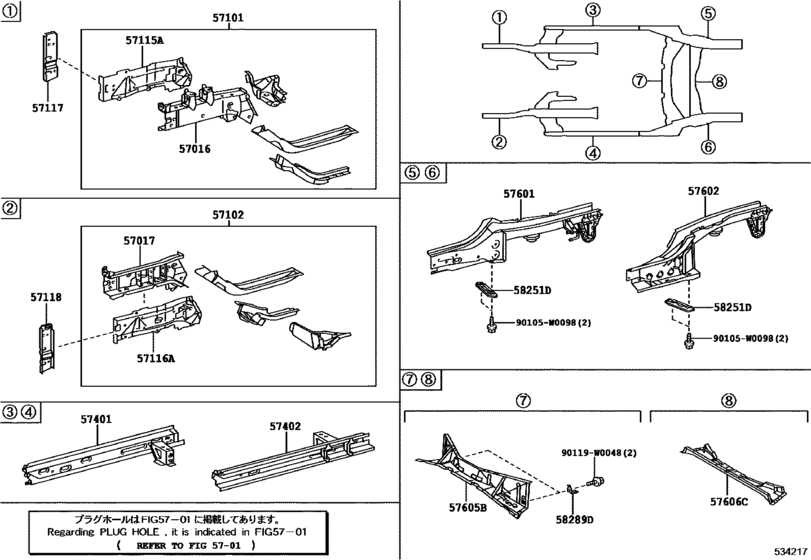

Floor Side Member ([05.2014 - ] (1405- )) 21

#	OEM	Part name
57016	57016-0H010	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-0H011	Reinforcement Sub-Assy, Front Side Member, Lh
57101	57101-0H011	Member Sub-Assy, Front Side, Rh
57102	57102-0H012	Member Sub-Assy, Front Side, Lh
57115	57025-0H010	Plate, Front Side Member, Outer Rh
57116	57026-0H010	Plate, Front Side Member, Outer Lh
57117	57117-0H010	Plate Sub-Assy, Front Side Member, Front Rh
57118	57118-0H010	Plate Sub-Assy, Front Side Member, Front Lh
57401	57401-0H020	Member Sub-Assy, Main Floor Side, Rh
57402	57402-0H020	Member Sub-Assy, Main Floor Side, Lh
57601	57601-0H020	Member Sub-Assy, Rear Floor Side, Rh
57601	57601-0H021	Member Sub-Assy, Rear Floor Side, Rh
57602	57602-0H030	Member Sub-Assy, Rear Floor Side, Lh
57602	57602-0H031	Member Sub-Assy, Rear Floor Side, Lh
57605	57605-0H010	Member Sub-Assy, Rear Floor Cross, No.1
57605	57605-0H011	Member Sub-Assy, Rear Floor Cross, No.1
57606	57606-0H020	Member Sub-Assy, Rear Floor Cross, No.2
58251	58251-0H020	Brace, Floor Panel, Front
58289	58289-0H010	Bracket, Floor Brake Hose, Rear
90105	90105-W0098	New Genuine Part
90119	90119-W0048	New Genuine Part

OEM	Part name	Category
57016-0H010	Reinforcement Sub-Assy, Front Side Member, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57017-0H011	Reinforcement Sub-Assy, Front Side Member, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57025-0H010	Plate, Front Side Member, Outer Rh	Floor Side Member ([05.2014 - ] (1405- ))
57026-0H010	Plate, Front Side Member, Outer Lh	Floor Side Member ([05.2014 - ] (1405- ))
57101-0H011	Member Sub-Assy, Front Side, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57102-0H012	Member Sub-Assy, Front Side, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57117-0H010	Plate Sub-Assy, Front Side Member, Front Rh	Floor Side Member ([05.2014 - ] (1405- ))
57118-0H010	Plate Sub-Assy, Front Side Member, Front Lh	Floor Side Member ([05.2014 - ] (1405- ))
57401-0H020	Member Sub-Assy, Main Floor Side, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57402-0H020	Member Sub-Assy, Main Floor Side, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57601-0H020	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57601-0H021	Member Sub-Assy, Rear Floor Side, Rh	Floor Side Member ([05.2014 - ] (1405- ))
57602-0H030	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57602-0H031	Member Sub-Assy, Rear Floor Side, Lh	Floor Side Member ([05.2014 - ] (1405- ))
57605-0H010	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([05.2014 - ] (1405- ))
57605-0H011	Member Sub-Assy, Rear Floor Cross, No.1	Floor Side Member ([05.2014 - ] (1405- ))
57606-0H020	Member Sub-Assy, Rear Floor Cross, No.2	Floor Side Member ([05.2014 - ] (1405- ))
58251-0H020	Brace, Floor Panel, Front	Floor Side Member ([05.2014 - ] (1405- ))
58289-0H010	Bracket, Floor Brake Hose, Rear	Floor Side Member ([05.2014 - ] (1405- ))
90105-W0098	New Genuine Part	Floor Side Member ([05.2014 - ] (1405- ))
90119-W0048	New Genuine Part	Floor Side Member ([05.2014 - ] (1405- ))
