Search › Model › KGB40
KGB40

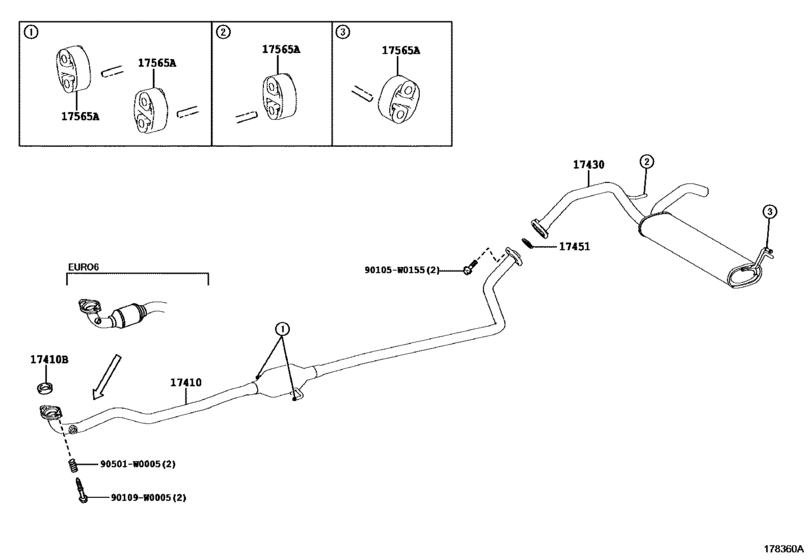

Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) 10
| # | OEM | Part name |
|---|---|---|
| 17410 | 17410-0Q060 | Pipe Assy, Exhaust, Front |
| 17410 | 17410-0Q080 | Pipe Assy, Exhaust, Front |
| 17410 | 17451-0Q010 | Gasket, Exhaust Pipe |
| 17430 | 17430-0Q060 | Pipe Assy, Exhaust, Tail |
| 17430 | 17430-0Q080 | Pipe Assy, Exhaust, Tail |
| 17451 | 90917-06069 | Gasket, Exhaust Pipe |
| 17565 | 17565-0Q010 | Support, Exhaust Pipe, No.4 |
| 90105 | 90105-W0155 | BOLT FLANGE |
| 90109 | 90109-W0005 | BOLT |
| 90501 | 90501-W0005 | SPRING COMPRESSION |
| OEM | Part name | Category |
|---|---|---|
| 17410-0Q060 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 17410-0Q080 | Pipe Assy, Exhaust, Front | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 17430-0Q060 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 17430-0Q080 | Pipe Assy, Exhaust, Tail | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 17451-0Q010 | Gasket, Exhaust Pipe | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 17565-0Q010 | Support, Exhaust Pipe, No.4 | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 90105-W0155 | BOLT FLANGE | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 90109-W0005 | BOLT | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 90501-W0005 | SPRING COMPRESSION | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
| 90917-06069 | Gasket, Exhaust Pipe | Exhaust Pipe ([05.2014 - ] (1405- )1KRFE) |
