Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

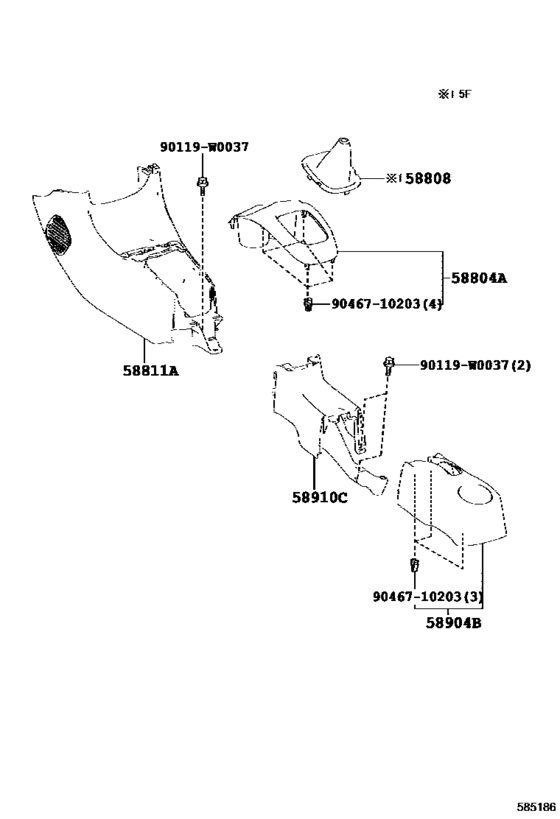

Console Box & Bracket ([05.2014 - ] (1405- )) 20

#	OEM	Part name
58804	58804-0H010-B0	Panel Sub-Assy, Console, Upper
58804	58804-0H020-A2	Panel Sub-Assy, Console, Upper
58804	58804-0H020-B2	Panel Sub-Assy, Console, Upper
58804	58804-0H020-B3	Panel Sub-Assy, Console, Upper
58804	58804-0H020-C3	Panel Sub-Assy, Console, Upper
58804	58804-0H030-A2	Panel Sub-Assy, Console, Upper
58804	58804-0H030-A3	Panel Sub-Assy, Console, Upper
58804	58804-0H030-B3	Panel Sub-Assy, Console, Upper
58804	58804-0H030-B4	Panel Sub-Assy, Console, Upper
58804	58804-0H030-B5	Panel Sub-Assy, Console, Upper
58804	58804-0H030-C1	Panel Sub-Assy, Console, Upper
58804	58804-0H030-D1	Panel Sub-Assy, Console, Upper
58804	58804-0H030-J2	Panel Sub-Assy, Console, Upper
58804	58804-0H030-J3	Panel Sub-Assy, Console, Upper
58808	58808-0H020-B0	Cover Sub-Assy, Shifting Hole
58811	58801-0H030-B0	Box, Console, Front
58904	58904-0H010-B0	Cover Sub-Assy, Parking Brake Hole
58910	58910-0H010-B0	Box Assy, Console, Rear
90119	90119-W0037	Bolt, W/washer
9046710203	90467-10203	Direct

OEM	Part name	Category
58801-0H030-B0	Box, Console, Front	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H010-B0	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H020-A2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H020-B2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H020-B3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H020-C3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-A2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-A3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-B3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-B4	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-B5	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-C1	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-D1	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-J2	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58804-0H030-J3	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([05.2014 - ] (1405- ))
58808-0H020-B0	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([05.2014 - ] (1405- ))
58904-0H010-B0	Cover Sub-Assy, Parking Brake Hole	Console Box & Bracket ([05.2014 - ] (1405- ))
58910-0H010-B0	Box Assy, Console, Rear	Console Box & Bracket ([05.2014 - ] (1405- ))
90119-W0037	Bolt, W/washer	Console Box & Bracket ([05.2014 - ] (1405- ))
90467-10203	Direct	Console Box & Bracket ([05.2014 - ] (1405- ))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 171
Collected: 2026-08-02
