Search › Model › KGB40

KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

2,423 items

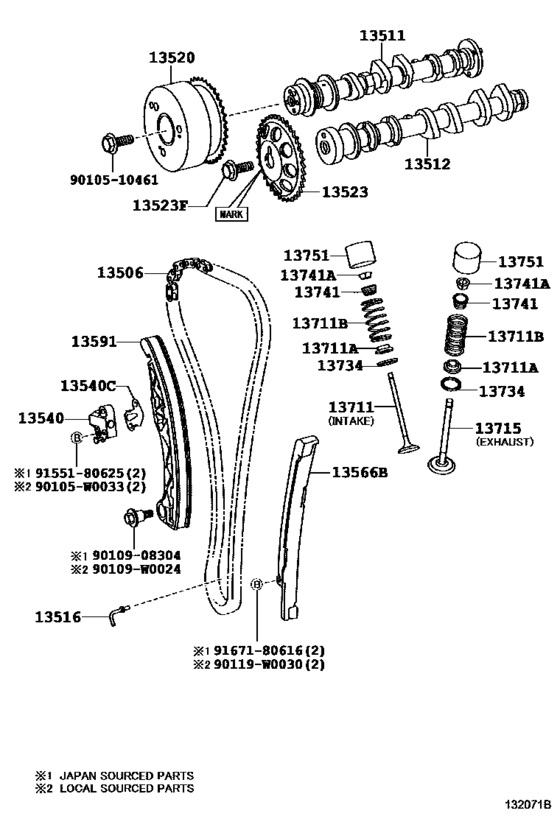

Camshaft & Valve ([05.2014 - ] (1405- )1KRFE) 63

#	OEM	Part name
13506	13506-0Q030	Chain Sub-Assy
13511	13501-0Q010	Camshaft
13512	13502-0Q010	Camshaft, No.2
13516	13516-40010	Jet, Oil
13520	13520-0Q010	Sprocket Assy, Camshaft Timing
13520	13520-40020	Sprocket Assy, Camshaft Timing
13520	13520-40021	SPROCKET ASSY
13523	13523-0Q010	Gear Or Sprocket, Camshaft Timing
13523	13523-22020	Gear Or Sprocket, Camshaft Timing
13523	90119-10889	Bolt(For Camshaft Timing Gear)
13540	13540-0Q010	Tensioner Assy, Chain, No.1
13540	13540-21020	Tensioner Assy, Chain, No.1
13540	13552-0Q010	Gasket(For Chain Tensioner)
13566	13566-0Q020	Guide, Timing Chain
13591	13591-0Q020	Arm, Timing Chain Tension
13711	13711-0Q020	Valve, Intake
13711	90080-31064	Seal Or Ring, O(For Valve Stem Oil)
13711	90080-31065	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02092	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02128	Seal, Exhaust Valve Stem Oil
13711	90913-02093	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-W0012	Spring, Compression(For Inner)
13715	13715-0Q020	Valve, Exhaust
13734	13734-40010	Seat, Valve Spring
13741	13741-0Q010	Retainer, Valve Spring
13741	13741-22021	Retainer, Valve Spring
13741	90913-03031	Lock, Valve Spring Retainer
13751	13751-0Q700	Lifter, Valve
13751	13751-0Q710	Lifter, Valve
13751	13751-0Q720	Lifter, Valve
13751	13751-0Q730	Lifter, Valve
13751	13751-0Q740	Lifter, Valve
13751	13751-0Q750	Lifter, Valve
13751	13751-0Q760	Lifter, Valve
13751	13751-0Q770	Lifter, Valve
13751	13751-0Q780	Lifter, Valve
13751	13751-0Q790	Lifter, Valve
13751	13751-0Q800	Lifter, Valve
13751	13751-0Q810	Lifter, Valve
13751	13751-0Q820	Lifter, Valve
13751	13751-0Q830	Lifter, Valve
13751	13751-0Q840	Lifter, Valve
13751	13751-0Q850	Lifter, Valve
13751	13751-0Q860	Lifter, Valve
13751	13751-0Q870	Lifter, Valve
13751	13751-0Q880	Lifter, Valve
13751	13751-0Q890	Lifter, Valve
13751	13751-0QA00	Lifter, Valve
13751	13751-0QA10	Lifter, Valve
13751	13751-0QA20	Lifter, Valve
13751	13751-0QA30	Lifter, Valve
13751	13751-0QA40	Lifter, Valve
13751	13751-0QA50	Lifter, Valve
13751	13751-0QA60	Lifter, Valve
13751	13751-0QA70	Lifter, Valve
13751	13751-0QA80	Lifter, Valve
90105	90105-W0033	New Genuine Part
90109	90109-W0024	New Genuine Part
90119	90119-W0030	New Genuine Part
9010510461	90105-10461	New Genuine Part
9010908304	90109-08304	BOLT
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
13501-0Q010	Camshaft	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13502-0Q010	Camshaft, No.2	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13506-0Q030	Chain Sub-Assy	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13516-40010	Jet, Oil	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13520-0Q010	Sprocket Assy, Camshaft Timing	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13520-40020	Sprocket Assy, Camshaft Timing	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13520-40021	SPROCKET ASSY	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13523-0Q010	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13523-22020	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13540-0Q010	Tensioner Assy, Chain, No.1	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13540-21020	Tensioner Assy, Chain, No.1	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13552-0Q010	Gasket(For Chain Tensioner)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13566-0Q020	Guide, Timing Chain	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13591-0Q020	Arm, Timing Chain Tension	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13711-0Q020	Valve, Intake	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13715-0Q020	Valve, Exhaust	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13734-40010	Seat, Valve Spring	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13741-0Q010	Retainer, Valve Spring	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13741-22021	Retainer, Valve Spring	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q700	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q710	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q720	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q730	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q740	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q750	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q760	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q770	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q780	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q790	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q800	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q810	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q820	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q830	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q840	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q850	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q860	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q870	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q880	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0Q890	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA00	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA10	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA20	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA30	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA40	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA50	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA60	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA70	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
13751-0QA80	Lifter, Valve	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90080-31064	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90080-31065	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90105-10461	New Genuine Part	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90105-W0033	New Genuine Part	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90109-08304	BOLT	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90109-W0024	New Genuine Part	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90119-10889	Bolt(For Camshaft Timing Gear)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90119-W0030	New Genuine Part	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90501-W0012	Spring, Compression(For Inner)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90913-02092	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90913-02093	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90913-02128	Seal, Exhaust Valve Stem Oil	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
90913-03031	Lock, Valve Spring Retainer	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
91551-80625	Bolt(For Camshaft Housing Set)	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)
91671-80616	BOLT FLANGE	Camshaft & Valve ([05.2014 - ] (1405- )1KRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 171
Collected: 2026-08-02
