KGB40

Toyota AYGO · 2014 · 2,423 parts · 171 categories

← Back to categories

2,423 items

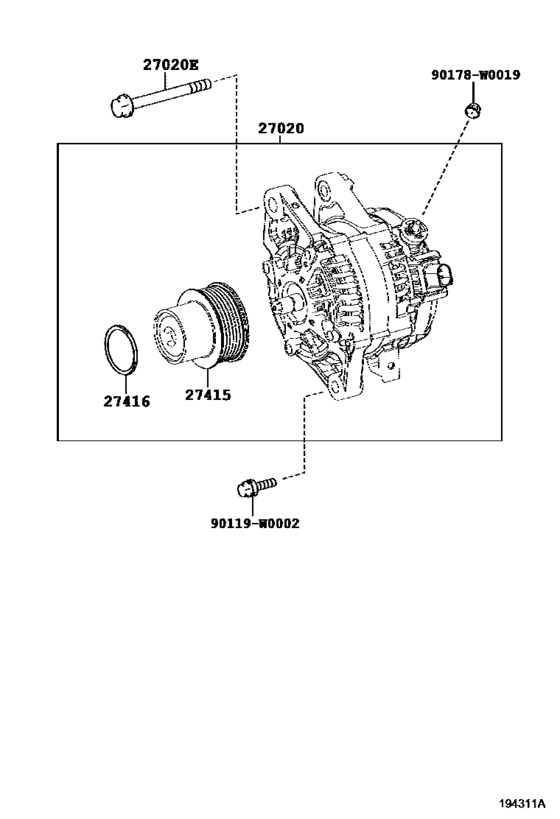

Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE) 11

#	OEM	Part name
27020	27060-0Q160	Alternator Assy
27020	27060-0Q170	Alternator Assy
27020	27060-0Q180	Alternator Assy
27020	27060-0Q190	Alternator Assy
27020	90105-10075	Bolt(For Alternator)
27415	27415-0Q010	Pulley, Alternator W/clutch
27415	27415-0W220	Pulley, Alternator W/clutch
27416	27416-0Q010	Cap, Alternator Pulley
27416	27416-0W020	Cap, Alternator Pulley
90119	90119-W0002	BOLT WWASHER
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
27060-0Q160	Alternator Assy	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
27060-0Q170	Alternator Assy	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
27060-0Q180	Alternator Assy	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
27060-0Q190	Alternator Assy	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
27415-0Q010	Pulley, Alternator W/clutch	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
27415-0W220	Pulley, Alternator W/clutch	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
27416-0Q010	Cap, Alternator Pulley	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
27416-0W020	Cap, Alternator Pulley	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
90105-10075	Bolt(For Alternator)	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
90119-W0002	BOLT WWASHER	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Alternator ([05.2014 - ] 12V 100A (1405- )1KRFE)
