Search › Model › KF82
KF82

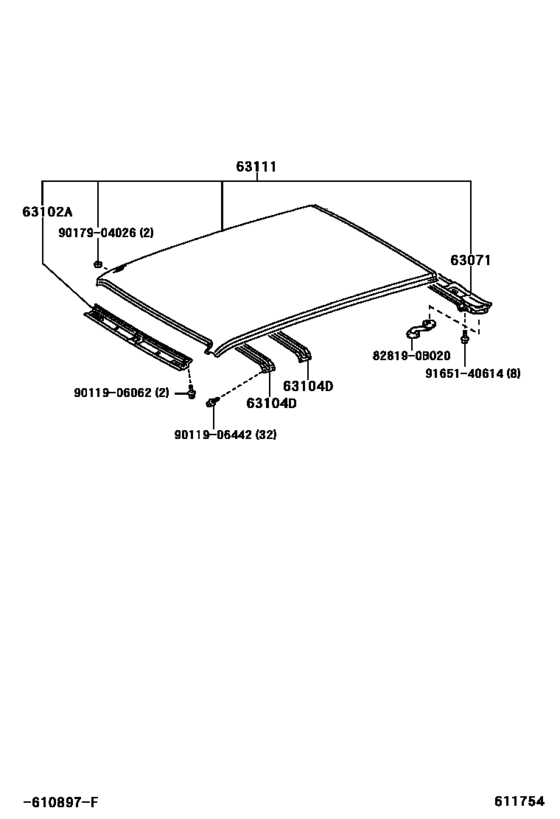

Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) 9
| # | OEM | Part name |
|---|---|---|
| 63071 | 63071-0B020 | Frame Sub-Assy, Back Door Opening, Upper |
| 63102 | 63102-0B040 | Panel Sub-Assy, Windshield Header |
| 63104 | 63104-0B020 | Reinforcement Sub-Assy, Roof Panel, No.2 |
| 63111 | 63100-0B010 | Panel, Roof |
| 828190 | 82819-0B020 | Grommet, Wiring Harness |
| 9011906062 | 90119-06062 | New Genuine Part |
| 9011906442 | 90119-06442 | BOLT WWASHER |
| 9017904026 | 90179-04026 | New Genuine Part |
| 9165140614 | 91651-40614 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 63071-0B020 | Frame Sub-Assy, Back Door Opening, Upper | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 63100-0B010 | Panel, Roof | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 63102-0B040 | Panel Sub-Assy, Windshield Header | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 63104-0B020 | Reinforcement Sub-Assy, Roof Panel, No.2 | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 82819-0B020 | Grommet, Wiring Harness | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 90119-06062 | New Genuine Part | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 90119-06442 | BOLT WWASHER | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 90179-04026 | New Genuine Part | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
| 91651-40614 | Bolt | Roof Panel & Back Panel ([09.1999 - ] (9909- )VN) |
