KF80

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 1996 · 5,493 parts · 344 categories

← Back to categories

5,493 items

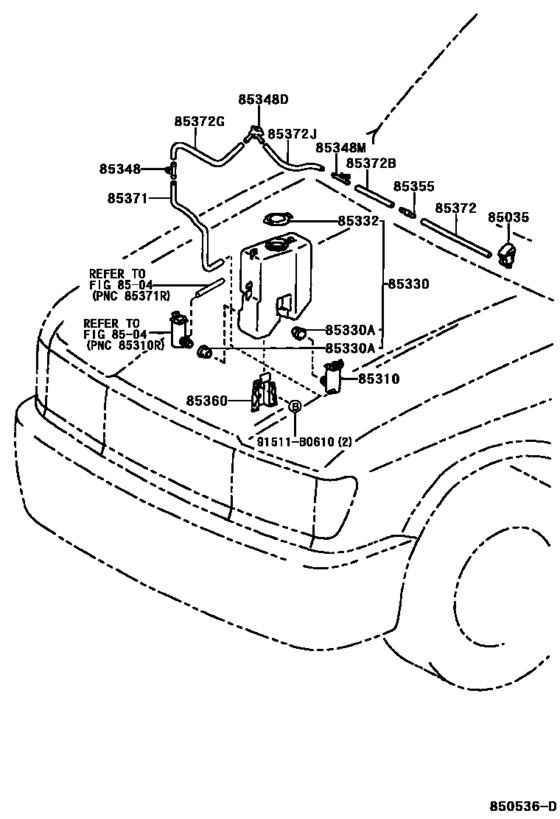

Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN) 17

#	OEM	Part name
85035	85381-38010	Nozzle Sub-Assy, Washer
85310	85310-22080	Motor And Pump Assy, Windshield Washer
85330	85315-0B020	Jar Assy, Windshield Washer
85330	85315-0B080	Jar Assy, Windshield Washer
85330	90099-32089	Bush, Headlamp Cleaner Washer Jar
85330	90068-32002	Bush, Windshield Washer Jar
85332	85332-12320	Cap Assy, Windshield Washer
85348	85375-17050	Joint, Windshield Washer Hose, No.1
85348	85377-34010	Joint, Windshield Washer Elbow, No.3
85348	85375-20800	Joint, Windshield Washer Hose, No.1
85355	85031-12250	Valve Sub-Assy, Washer
85360	16611-16010	Bracket(For Radiator Reserve Tank)
85371	90446-07001	Hose, Windshield Washer (From Motor To Joint)
85372	90068-59001	Hose, Windshield Washer (From Joint To Joint), No.1
85372	90068-59005	Hose, Windshield Washer (From Joint To Joint), No.2
85372	90099-59175	Hose, Windshield Washer (From Joint To Joint), No.3
91511	91511-B0610	BOLT FLANGE

OEM	Part name	Category
16611-16010	Bracket(For Radiator Reserve Tank)	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85031-12250	Valve Sub-Assy, Washer	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85310-22080	Motor And Pump Assy, Windshield Washer	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85315-0B020	Jar Assy, Windshield Washer	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85315-0B080	Jar Assy, Windshield Washer	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85332-12320	Cap Assy, Windshield Washer	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85375-17050	Joint, Windshield Washer Hose, No.1	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85375-20800	Joint, Windshield Washer Hose, No.1	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85377-34010	Joint, Windshield Washer Elbow, No.3	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
85381-38010	Nozzle Sub-Assy, Washer	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
90068-32002	Bush, Windshield Washer Jar	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
90068-59001	Hose, Windshield Washer (From Joint To Joint), No.1	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
90068-59005	Hose, Windshield Washer (From Joint To Joint), No.2	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
90099-32089	Bush, Headlamp Cleaner Washer Jar	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
90099-59175	Hose, Windshield Washer (From Joint To Joint), No.3	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
90446-07001	Hose, Windshield Washer (From Motor To Joint)	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
91511-B0610	BOLT FLANGE	Windshield Washer ([02.1999 - ] (9810- )PHL ; (9902- )DLX,GL..TAIW,VN)
