Search › Model › KF72

KF72

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2000 · 3,492 parts · 212 categories

3,492 items

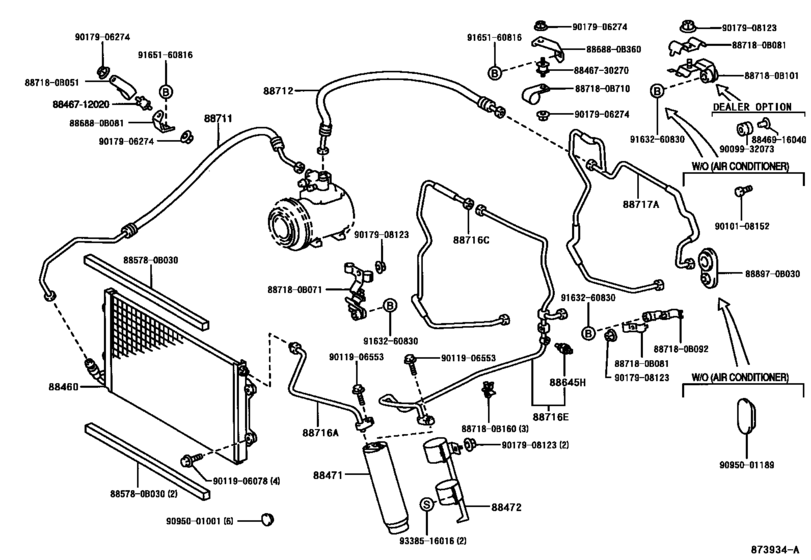

Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD) 37

#	OEM	Part name
88460	88460-0B021	Condenser Assy, Cooler
88471	88471-28100	Tank, Receiver Air Conditioner
88472	88472-0B070	Bracket, Receiver Tank, No.1
88645	88645-34010	Switch, Pressure
88645	88645-04040	Switch, Pressure
88716	88716-0B241	Pipe, Cooler Refrigerant Liquid, A
88716	88716-0B052	Pipe, Cooler Refrigerant Liquid, C
88716	88716-0B151	Pipe, Cooler Refrigerant Liquid, E
88717	88717-0B032	Pipe, Cooler Refrigerant Suction, A
885780	88578-0B030	Paking, Cooler Air Duct
886880	88688-0B081	Bracket, Cooler Diaphragm
886880	88688-0B360	Bracket, Cooler Diaphragm
887180	88718-0B051	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0B071	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0B081	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0B092	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0B101	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0B160	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0B710	Pipe, Cooler Refrigerant Suction, No.2
888970	88897-0B030	Valve, Cooler Magnet
8846730270	88467-30270	Cushion, Cooler Condenser, No.1
8846916040	88469-16040	Insulator, Cooler Condenser Mounting
9009932073	90099-32073	Grommet
9010108152	90101-08152	New Genuine Part
9011906078	90119-06078	New Genuine Part
9011906078	90119-06330	Bolt
9011906553	90119-06553	New Genuine Part
9011906553	91651-F0625	BOLT WWASHER
9017906274	90179-06274	Nut
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9095001001	90950-01001	New Genuine Part
9095001189	90950-01189	Plug, Hole, No.3(For Dash Panel)
9163260830	91632-60830	New Genuine Part
9163260830	91631-G0830	BOLT WWASHER
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9338516016	93385-16016	New Genuine Part

OEM	Part name	Category
88460-0B021	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88467-30270	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88469-16040	Insulator, Cooler Condenser Mounting	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88471-28100	Tank, Receiver Air Conditioner	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88472-0B070	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88578-0B030	Paking, Cooler Air Duct	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88645-04040	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88645-34010	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88688-0B081	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88688-0B360	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88716-0B052	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88716-0B151	Pipe, Cooler Refrigerant Liquid, E	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88716-0B241	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88717-0B032	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88718-0B051	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88718-0B071	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88718-0B081	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88718-0B092	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88718-0B101	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88718-0B160	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88718-0B710	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
88897-0B030	Valve, Cooler Magnet	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90080-11396	Bolt	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90099-32073	Grommet	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90101-08152	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90119-06078	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90119-06330	Bolt	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90119-06553	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90179-08123	Nut (For Front Wiper Arm Setting)	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90950-01001	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
90950-01189	Plug, Hole, No.3(For Dash Panel)	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
91631-G0830	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
91632-60830	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
91651-60816	BOLT	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
91651-F0625	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
93385-16016	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([01.2000 - 08.2002] FRONT,DUAL AIR CONDITIONER (0001-0208)KF72,82..5F..GL ; (0001- )KF72,82. .DLX..RHD)
