Search › Model › KF72

KF72

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 2000 · 3,492 parts · 212 categories

3,492 items

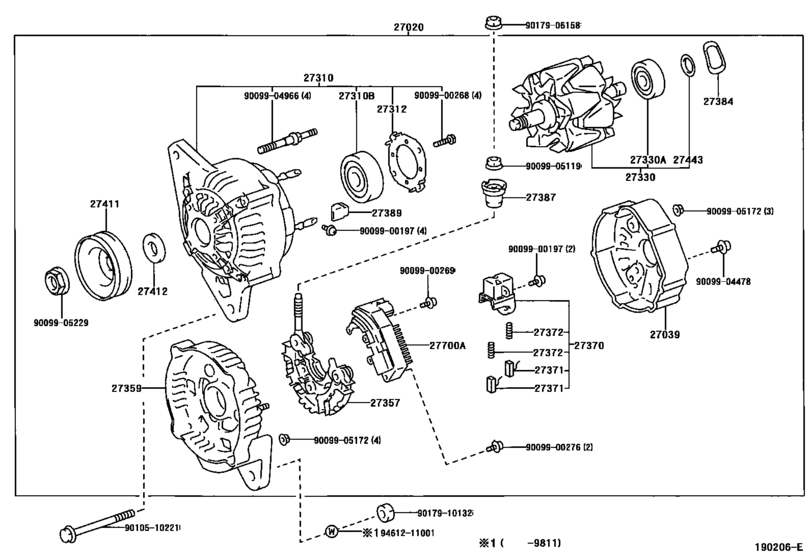

Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#) 52

#	OEM	Part name
27020	27060-06090	Alternator Assy
27020	27060-06010	Alternator Assy
27039	27039-16380	Cover, Alternator Rear End
27039	27039-11190	Cover, Alternator Rear End
27310	27310-06040	Frame Assy, Drive End, Alternator
27310	90068-10009	Bearing(For Alternator Drive End Frame)
27310	90099-10214	Bearing(For Alternator Drive End Frame)
27310	90099-10199	Bearing(For Alternator Drive End Frame)
27310	27310-06030	Frame Assy, Drive End, Alternator
27310	90099-10147	Bearing(For Alternator Drive End Frame)
27310	90099-10174	Bearing(For Alternator Drive End Frame)
27312	27312-72100	Plate, Bearing Retainer, Alternator
27312	27312-72120	Plate, Bearing Retainer, Alternator
27330	27330-06060	Rotor Assy, Alternator
27330	90068-10008	Bearing(For Alternator Rotor)
27330	90099-10213	Bearing(For Alternator Rotor)
27330	90099-10140	Bearing(For Alternator Rotor)
27330	27330-06030	Rotor Assy, Alternator
27330	90099-10212	Bearing(For Alternator Rotor)
27357	27357-16380	Holder, Alternator, W/rectifier
27357	27357-11160	Holder, Alternator, W/rectifier
27359	27359-06040	Frame, Alternator Rectifier End
27359	27359-06030	Frame, Alternator Rectifier End
27370	27370-35060	Holder Assy, Alternator Brush
27371	27371-70300	Brush, Alternator
27372	27372-63020	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27384	27384-16380	Washer
27387	27387-70171	Insulator, Terminal
27387	27387-10080	Insulator, Terminal
27387	27387-10081	Insulator, Terminal
27389	27389-63020	Insulator, Terminal
27411	27411-13360	Pulley, Alternator
27412	27412-35100	Collar, Spacer(For Alternator Pulley)
27412	27412-13360	Collar, Spacer(For Alternator Pulley)
27443	27443-63020	Cover, Alternator Bearing
27700	27700-62030	Regulator Assy, Generator
27700	27700-50030	Regulator Assy, Generator
27700	27700-13120	Regulator Assy, Generator
9009900197	90099-00197	Screw
9009900268	90099-00268	Screw(For Alternator Drive End Frame)
9009900269	90099-00269	New Genuine Part
9009900276	90099-00276	New Genuine Part
9009904478	90099-04478	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905172	90099-05172	New Genuine Part
9009905229	90099-05229	New Genuine Part
9010510221	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910132	90179-10132	Nut
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27039-11190	Cover, Alternator Rear End	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27039-16380	Cover, Alternator Rear End	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27060-06010	Alternator Assy	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27060-06090	Alternator Assy	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27310-06030	Frame Assy, Drive End, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27310-06040	Frame Assy, Drive End, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27312-72100	Plate, Bearing Retainer, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27312-72120	Plate, Bearing Retainer, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27330-06030	Rotor Assy, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27330-06060	Rotor Assy, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27357-11160	Holder, Alternator, W/rectifier	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27357-16380	Holder, Alternator, W/rectifier	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27359-06030	Frame, Alternator Rectifier End	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27359-06040	Frame, Alternator Rectifier End	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27370-35060	Holder Assy, Alternator Brush	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27371-70300	Brush, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27372-63020	Spring, Alternator Brush	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27372-87501	Spring, Alternator Brush	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27384-16380	Washer	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27387-10080	Insulator, Terminal	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27387-10081	Insulator, Terminal	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27387-70171	Insulator, Terminal	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27389-63020	Insulator, Terminal	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27411-13360	Pulley, Alternator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27412-13360	Collar, Spacer(For Alternator Pulley)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27412-35100	Collar, Spacer(For Alternator Pulley)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27443-63020	Cover, Alternator Bearing	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27700-13120	Regulator Assy, Generator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27700-50030	Regulator Assy, Generator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
27700-62030	Regulator Assy, Generator	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90068-10008	Bearing(For Alternator Rotor)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90068-10009	Bearing(For Alternator Drive End Frame)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-00197	Screw	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-00268	Screw(For Alternator Drive End Frame)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-00269	New Genuine Part	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-00276	New Genuine Part	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-04478	New Genuine Part	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-05119	New Genuine Part	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-05172	New Genuine Part	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-05229	New Genuine Part	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-10147	Bearing(For Alternator Drive End Frame)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-10174	Bearing(For Alternator Drive End Frame)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-10199	Bearing(For Alternator Drive End Frame)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-10212	Bearing(For Alternator Rotor)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-10213	Bearing(For Alternator Rotor)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90099-10214	Bearing(For Alternator Drive End Frame)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
90179-10132	Nut	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([12.1996 - ] 12V 55A,60A,70A (9612- )7K#)
