Search › Model › KF70

KF70

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 1996 · 4,066 parts · 239 categories
KF70 ×

← Back to categories

4,066 items

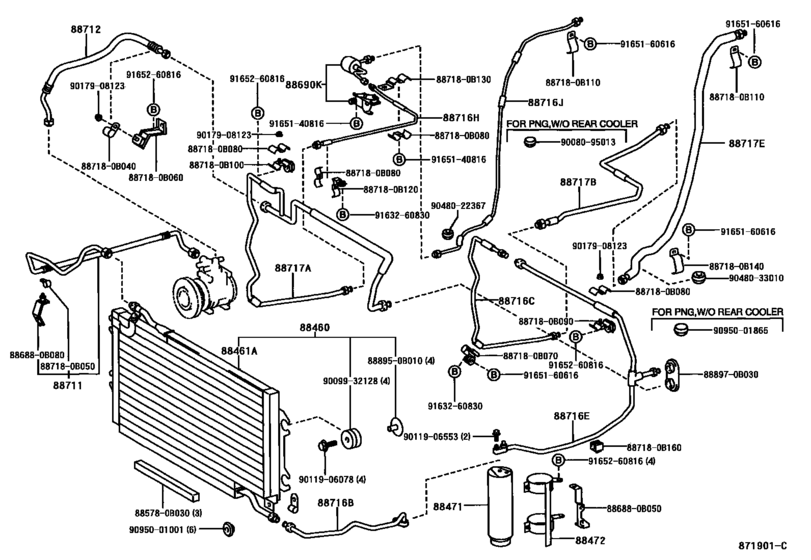

Heating & Air Conditioning - Cooler Piping ([12.1996 - 01.2000] DUAL AIR CONDITIONER (9612-0001)KF60,70,80..GEN) 47
#OEMPart name
88460 88460-0B030 Condenser Assy, Cooler
88461 88460-0B050 Core, Cooler Condenser
88471 88471-28100 Tank, Receiver Air Conditioner
88472 88472-0B010 Bracket, Receiver Tank, No.1
88690 88690-0B010 Valve Assy, Magnet
88712 88712-0B010 Hose, Cooler Refrigerant Suction, No.1
88716 88716-0B250 Pipe, Cooler Refrigerant Liquid, B
88716 88716-0B051 Pipe, Cooler Refrigerant Liquid, C
88716 88716-0B150 Pipe, Cooler Refrigerant Liquid, E
88716 88716-0B071 Pipe, Cooler Refrigerant Liquid, H
88716 88716-0B080 Pipe, Cooler Refrigerant Liquid, J
88717 88717-0B031 Pipe, Cooler Refrigerant Suction, A
88717 88717-0B051 Pipe, Cooler Refrigerant Suction, B
88717 88717-0B060 Pipe, Cooler Refrigerant Suction, E
885780 88578-0B030 Paking, Cooler Air Duct
886880 88688-0B050 Bracket, Cooler Diaphragm
886880 88688-0B080 Bracket, Cooler Diaphragm
887180 88718-0B040 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B050 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B060 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B070 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B080 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B090 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B100 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B110 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B120 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B130 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B140 Pipe, Cooler Refrigerant Suction, No.2
887180 88718-0B160 Pipe, Cooler Refrigerant Suction, No.2
888950 88895-0B010 Holder, Fuse
888970 88897-0B030 Valve, Cooler Magnet
9008095013 90080-95013 New Genuine Part
9009932128 90099-32128 Grommet
9011906078 90119-06078 New Genuine Part
9011906078 90119-06330 Bolt
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9048022367 90480-22367 New Genuine Part
9048033010 90480-33010 New Genuine Part
9095001001 90950-01001 New Genuine Part
9095001865 90950-01865 PLUG HOLE
9163260830 91632-60830 New Genuine Part
9163260830 91631-G0830 BOLT WWASHER
9165140816 91651-40816 BOLT
9165160616 91651-60616 BOLT
9165260816 91652-60816 New Genuine Part
