Search › Model › KF70

KF70

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 1996 · 4,066 parts · 239 categories

4,066 items

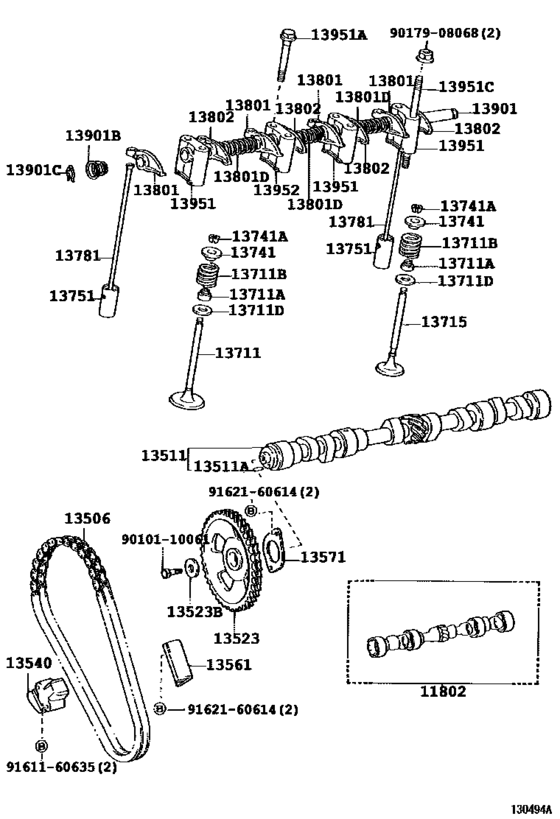

Camshaft & Valve ([12.1996 - ] (9612- )7K#) 40

#	OEM	Part name
11802	11802-22011	Bearing Set, Camshaft
11802	11802-13030	Bearing Set, Camshaft
11802	11803-22011	Bearing Set, Camshaft
11802	11803-13030	Bearing Set, Camshaft
11802	11804-22011	Bearing Set, Camshaft
11802	11804-13030	Bearing Set, Camshaft
13506	13506-13040	Chain Sub-Assy
13511	13501-13043	Camshaft
13511	90250-05121	Pin, Straight, No.3(For Camshaft Knock)
13511	13501-13042	Camshaft
13523	13523-13030	Gear Or Sprocket, Camshaft Timing
13523	90201-10489	Washer, Plate(For Timing Gear)
13540	13540-13023	Tensioner Assy, Chain, No.1
13561	13561-13020	Damper, Chain Vibration, No.1
13561	13561-13030	Damper, Chain Vibration, No.1
13571	13571-13010	Plate, Camshaft Thrust
13711	13711-13010	Valve, Intake
13711	90913-02094	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-42010	Spring, Compression(For Inner)
13711	90201-16002	Washer, Plate(For Valve Spring Seat)
13715	13715-24031	Valve, Exhaust
13741	13741-24020	Retainer, Valve Spring
13741	90913-03005	Lock, Valve Spring Retainer
13751	13750-0W020	Lifter, Valve
13781	13781-13120	Rod, Valve Push
13801	13811-06010	Arm Sub-Assy, Valve Rocker, No.1
13801	13811-13010	Arm Sub-Assy, Valve Rocker, No.1
13801	90501-14064	Spring, Compression(For Rocker Arm)
13802	13812-06010	Arm Sub-Assy, Valve Rocker, No.2
13802	13812-13010	Arm Sub-Assy, Valve Rocker, No.2
13901	13901-22011	Shaft Sub-Assy, Valve Rocker, No.1
13901	90502-14022	Spring, Conical(For Valve Rocker Shaft)
13901	90524-13009	Spring, Retainer(For Valve Rocker Shaft)
13951	13952-24012	Support, Valve Rocker, No.1
13951	90105-08028	Bolt(For Rocker Support Set)
13951	90116-08082	Bolt, Stud(For Rocker Support)
9010110061	90101-10061	Bolt(For Backing Plate To Rear Axle Housing Setting)
9017908068	90179-08068	NUT
9161160635	91611-60635	New Genuine Part
9162160614	91621-60614	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
11802-13030	Bearing Set, Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
11802-22011	Bearing Set, Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
11803-13030	Bearing Set, Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
11803-22011	Bearing Set, Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
11804-13030	Bearing Set, Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
11804-22011	Bearing Set, Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13501-13042	Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13501-13043	Camshaft	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13506-13040	Chain Sub-Assy	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13523-13030	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13540-13023	Tensioner Assy, Chain, No.1	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13561-13020	Damper, Chain Vibration, No.1	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13561-13030	Damper, Chain Vibration, No.1	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13571-13010	Plate, Camshaft Thrust	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13711-13010	Valve, Intake	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13715-24031	Valve, Exhaust	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13741-24020	Retainer, Valve Spring	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13750-0W020	Lifter, Valve	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13781-13120	Rod, Valve Push	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13811-06010	Arm Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13811-13010	Arm Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13812-06010	Arm Sub-Assy, Valve Rocker, No.2	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13812-13010	Arm Sub-Assy, Valve Rocker, No.2	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13901-22011	Shaft Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
13952-24012	Support, Valve Rocker, No.1	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90101-10061	Bolt(For Backing Plate To Rear Axle Housing Setting)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90105-08028	Bolt(For Rocker Support Set)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90116-08082	Bolt, Stud(For Rocker Support)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90179-08068	NUT	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90201-10489	Washer, Plate(For Timing Gear)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90201-16002	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90250-05121	Pin, Straight, No.3(For Camshaft Knock)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90501-14064	Spring, Compression(For Rocker Arm)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90501-42010	Spring, Compression(For Inner)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90502-14022	Spring, Conical(For Valve Rocker Shaft)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90524-13009	Spring, Retainer(For Valve Rocker Shaft)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90913-02094	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
90913-03005	Lock, Valve Spring Retainer	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
91611-60635	New Genuine Part	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
91621-60614	Bolt(For Transaxle & Engine Setting)	Camshaft & Valve ([12.1996 - ] (9612- )7K#)
