KE71

Toyota COROLLA · 1979 · 3,745 parts · 161 categories
KE71 ×

← Back to categories

3,745 items

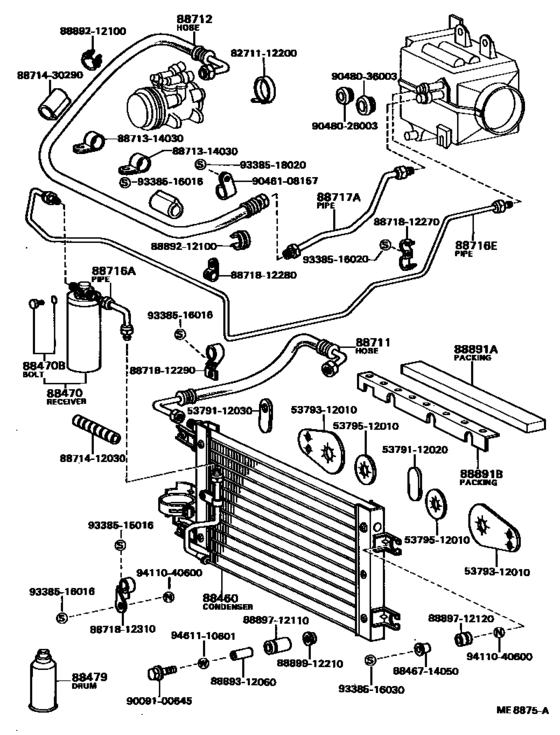

Heating & Air Conditioning - Cooler Piping ([08.1979 - 08.1981] (7908-8108)KE71) 47
#OEMPart name
88460 88460-12120 Condenser Assy, Cooler
88470 88470-12050 Receiver & Dryer Assy, Cooler
88470 88470-14010 Receiver & Dryer Assy, Cooler
88470 90099-04579 Bolt, Fuse
88470 88475-12020 Bolt, Fuse
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88711 88711-12190 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-12320 Hose, Cooler Refrigerant Suction, No.1
88712 88712-12321 Hose, Cooler Refrigerant Suction, No.1
88716 88716-12420 Pipe, Cooler Refrigerant Liquid, A
88716 88716-12450 Pipe, Cooler Refrigerant Liquid, E
88717 88717-12130 Pipe, Cooler Refrigerant Suction, A
88891 53291-12030 Plate, Radiator Cover
88891 53381-12110 Seal, Hood To Radiator Support
5379112020 53791-12020 Cover, Cool Air Intake Hole
5379112030 53791-12030 Cover, Cool Air Intake Hole
5379312010 53793-12010 Cover, Headlamp Wire Harness Hole, No.1
5379512010 53795-12010 Cover, Headlamp Wire Harness Hole, Rh
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8871314030 88713-14030 Hose, Cooler Refrigerant Suction, No.2
8871412030 88714-12030 Insulator, Cooler Refrigerant Pipe, No.2
8871412030 88895-12030 Insulator, Cooler Refrigerant Pipe, No.2
8871430290 88714-30290 Insulator, Cooler Refrigerant Hose, No.1
8871812270 88718-12270 Pipe, Cooler Refrigerant Suction, No.2
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871812290 88718-12290 Pipe, Cooler Refrigerant Suction, No.2
8871812310 88718-12310 Pipe, Cooler Refrigerant Suction, No.2
8889212100 88892-12100 Bracket, Cooler Evaporator Mounting
8889312060 88893-12060 Collar (for Cooler Idler Pulley)
8889712110 88897-12110 Valve, Cooler Magnet
8889712120 88897-12120 Valve, Cooler Magnet
8889912210 88899-12210 Cover, Evaporator
9009100645 90091-00645 New Genuine Part
9046108157 90461-08157 New Genuine Part
9048026003 90480-26003 Grommet (For Cooler Unit)
9048036003 90480-36003 Grommet (For Cooler Unit)
9338515016 93385-15016 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9338516030 93385-16030 Lever, Cooler Control, No.1
9338518020 93385-18020 New Genuine Part
9411040600 94110-40600 Nut, Rock
9461110601 94611-10601 WASHER
