Search › Model › KE70

KE70

Toyota COROLLA · 1979 · 3,859 parts · 181 categories

3,859 items

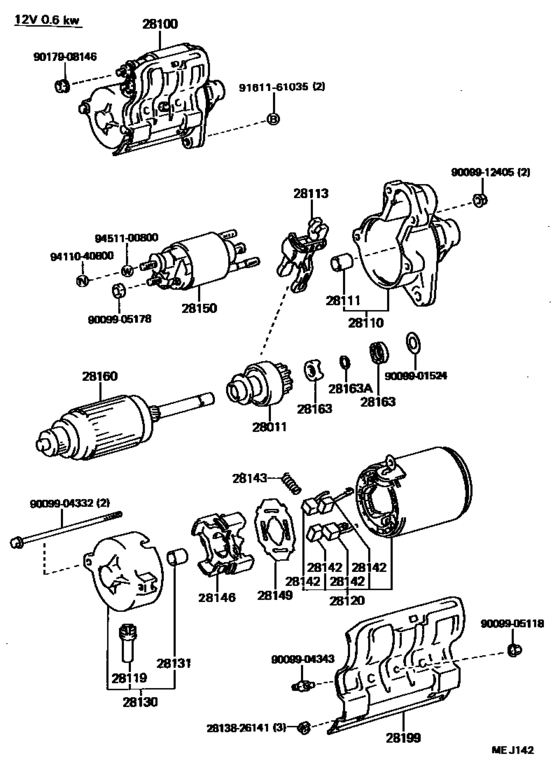

Starter ([08.1986 - ] (8608- )4K#) 54

#	OEM	Part name
28011	28011-13060	Clutch Sub-Assy, Starter
28011	28011-22022	Clutch Sub-Assy, Starter
28011	28011-22020	Clutch Sub-Assy, Starter
28100	28100-13060	Starter Assy
28100	28100-13130	Starter Assy
28100	28100-24070	Starter Assy
28110	28110-13060	Housing Assy, Starter Drive
28110	28110-24010	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28111	90099-10158	Bush(For Starter Housing)
28113	28113-13060	Lever, Starter Pinion Drive
28113	28113-41011	Lever, Starter Pinion Drive
28119	28199-15090	Cover, Starter End Frame
28120	28120-13060	Yoke Assy, Starter
28120	28120-22011	Yoke Assy, Starter
28130	28130-13060	Frame Assy, Starter Commutator End
28130	28130-21011	Frame Assy, Starter Commutator End
28131	28131-20010	Bush, Commutator End Frame
28131	90099-10039	Bush, Commutator End Frame
28131	90099-10040	Bush, Commutator End Frame
28131	90099-10157	Bearing, Starter Flange
28142	28142-10011	Brush, Starter
28142	28142-10020	Brush, Starter
28143	28143-10020	Spring, Starter Brush
28143	28143-40010	Spring, Starter Brush
28143	28143-40040	Spring, Starter Brush
28146	28149-10020	Holder, Starter Brush
28149	28141-10020	Insulator, Brush Holder
28150	28150-10020	Switch Assy, Magnet Starter
28150	28150-10021	Switch Assy, Magnet Starter
28150	28150-24070	Switch Assy, Magnet Starter
28150	28150-24071	Switch Assy, Magnet Starter
28160	28160-10020	Armature Assy, Starter
28160	28160-22011	Armature Assy, Starter
28163	28163-10020	Nut Or Collar, Pinion Stop, Starter
28163	28163-10021	Nut Or Collar, Pinion Stop, Starter
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
28163	90099-07124	Bearing(For Starter Housing)
28199	28159-13060	Cover, Starter
2813826141	28138-26141	Rubber(for Starter Bearing Cover)
9009901524	90099-01524	New Genuine Part
9009904332	90099-04332	New Genuine Part
9009904343	90099-04343	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905178	90099-05178	New Genuine Part
9009912405	90099-12405	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-13060	Clutch Sub-Assy, Starter	Starter ([08.1986 - ] (8608- )4K#)
28011-22020	Clutch Sub-Assy, Starter	Starter ([08.1986 - ] (8608- )4K#)
28011-22022	Clutch Sub-Assy, Starter	Starter ([08.1986 - ] (8608- )4K#)
28100-13060	Starter Assy	Starter ([08.1986 - ] (8608- )4K#)
28100-13130	Starter Assy	Starter ([08.1986 - ] (8608- )4K#)
28100-24070	Starter Assy	Starter ([08.1986 - ] (8608- )4K#)
28110-13060	Housing Assy, Starter Drive	Starter ([08.1986 - ] (8608- )4K#)
28110-24010	Housing Assy, Starter Drive	Starter ([08.1986 - ] (8608- )4K#)
28111-51011	Bush(For Starter Housing)	Starter ([08.1986 - ] (8608- )4K#)
28113-13060	Lever, Starter Pinion Drive	Starter ([08.1986 - ] (8608- )4K#)
28113-41011	Lever, Starter Pinion Drive	Starter ([08.1986 - ] (8608- )4K#)
28120-13060	Yoke Assy, Starter	Starter ([08.1986 - ] (8608- )4K#)
28120-22011	Yoke Assy, Starter	Starter ([08.1986 - ] (8608- )4K#)
28130-13060	Frame Assy, Starter Commutator End	Starter ([08.1986 - ] (8608- )4K#)
28130-21011	Frame Assy, Starter Commutator End	Starter ([08.1986 - ] (8608- )4K#)
28131-20010	Bush, Commutator End Frame	Starter ([08.1986 - ] (8608- )4K#)
28138-26141	Rubber(for Starter Bearing Cover)	Starter ([08.1986 - ] (8608- )4K#)
28141-10020	Insulator, Brush Holder	Starter ([08.1986 - ] (8608- )4K#)
28142-10011	Brush, Starter	Starter ([08.1986 - ] (8608- )4K#)
28142-10020	Brush, Starter	Starter ([08.1986 - ] (8608- )4K#)
28143-10020	Spring, Starter Brush	Starter ([08.1986 - ] (8608- )4K#)
28143-40010	Spring, Starter Brush	Starter ([08.1986 - ] (8608- )4K#)
28143-40040	Spring, Starter Brush	Starter ([08.1986 - ] (8608- )4K#)
28149-10020	Holder, Starter Brush	Starter ([08.1986 - ] (8608- )4K#)
28150-10020	Switch Assy, Magnet Starter	Starter ([08.1986 - ] (8608- )4K#)
28150-10021	Switch Assy, Magnet Starter	Starter ([08.1986 - ] (8608- )4K#)
28150-24070	Switch Assy, Magnet Starter	Starter ([08.1986 - ] (8608- )4K#)
28150-24071	Switch Assy, Magnet Starter	Starter ([08.1986 - ] (8608- )4K#)
28159-13060	Cover, Starter	Starter ([08.1986 - ] (8608- )4K#)
28160-10020	Armature Assy, Starter	Starter ([08.1986 - ] (8608- )4K#)
28160-22011	Armature Assy, Starter	Starter ([08.1986 - ] (8608- )4K#)
28163-10020	Nut Or Collar, Pinion Stop, Starter	Starter ([08.1986 - ] (8608- )4K#)
28163-10021	Nut Or Collar, Pinion Stop, Starter	Starter ([08.1986 - ] (8608- )4K#)
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([08.1986 - ] (8608- )4K#)
28199-15090	Cover, Starter End Frame	Starter ([08.1986 - ] (8608- )4K#)
90099-01524	New Genuine Part	Starter ([08.1986 - ] (8608- )4K#)
90099-04332	New Genuine Part	Starter ([08.1986 - ] (8608- )4K#)
90099-04343	New Genuine Part	Starter ([08.1986 - ] (8608- )4K#)
90099-05118	New Genuine Part	Starter ([08.1986 - ] (8608- )4K#)
90099-05178	New Genuine Part	Starter ([08.1986 - ] (8608- )4K#)
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([08.1986 - ] (8608- )4K#)
90099-07124	Bearing(For Starter Housing)	Starter ([08.1986 - ] (8608- )4K#)
90099-10039	Bush, Commutator End Frame	Starter ([08.1986 - ] (8608- )4K#)
90099-10040	Bush, Commutator End Frame	Starter ([08.1986 - ] (8608- )4K#)
90099-10157	Bearing, Starter Flange	Starter ([08.1986 - ] (8608- )4K#)
90099-10158	Bush(For Starter Housing)	Starter ([08.1986 - ] (8608- )4K#)
90099-12405	New Genuine Part	Starter ([08.1986 - ] (8608- )4K#)
90179-08146	Nut	Starter ([08.1986 - ] (8608- )4K#)
90179-08204	Nut	Starter ([08.1986 - ] (8608- )4K#)
91611-61035	BOLT	Starter ([08.1986 - ] (8608- )4K#)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Starter ([08.1986 - ] (8608- )4K#)
94110-40800	Nut(For Steering Damper)	Starter ([08.1986 - ] (8608- )4K#)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([08.1986 - ] (8608- )4K#)
94511-00800	WASHERSPRING	Starter ([08.1986 - ] (8608- )4K#)

Source: Public OEM parts-catalog data
Variants: 2 / 256
Category: 181
Collected: 2026-08-02
