Search › Model › KE70

KE70

Toyota COROLLA · 1979 · 3,859 parts · 181 categories

3,859 items

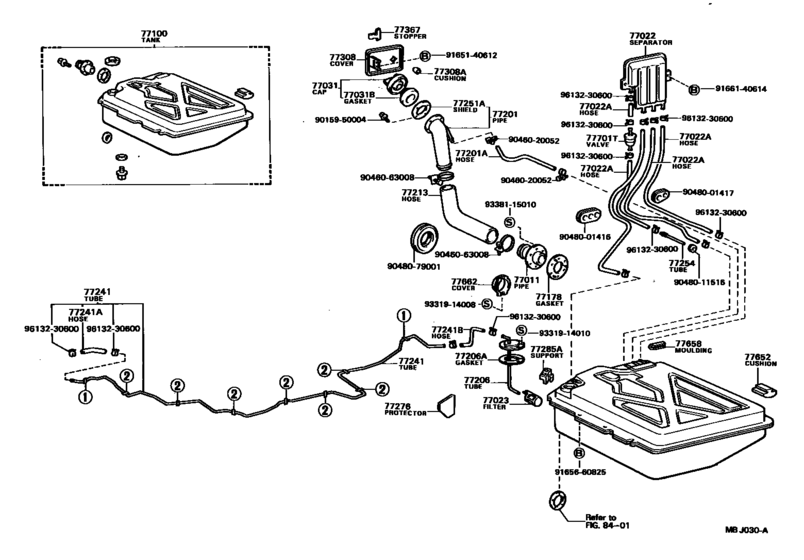

Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA) 58

#	OEM	Part name
77011	77011-13010	Pipe Sub-Assy, Fuel Tank Filler, Lower
77022	77271-13010	Separator Sub-Assy, Fuel Evaporative
77022	90445-12040	Hose, Fuel(For Fuel Evaporative Separator)
77022	95333-06100	Hose (L=1000)
77022	95332-06010	Hose, Fuel Pipe, No.1
77022	95333-06010	Hose, Fuel
77022	95332-06060	Hose, Fuel
77022	95333-06060	Hose, Fuel
77022	90910-05153	Hose, Fuel(For Fuel Evaporative Separator)
77023	77023-12050	Filter Sub-Assy, Fuel Suction Tube
77031	77310-12100	Cap Assy, Fuel Tank
77031	77316-12050	Gasket (For Fuel Tank Cap)
77100	77101-19025	Tank Assy, Fuel
77178	77178-13020	Gasket, Fuel Tank Filler Pipe, Lower
77201	77201-13071	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-13090	Pipe Sub-Assy, Fuel Tank Inlet
77201	90445-18028	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77206	77203-13050	Tube Sub-Assy, Fuel Tank Suction
77206	77169-14020	Gasket, Fuel Tank Vent
77206	77203-13080	Tube Sub-Assy, Fuel Tank Suction
77213	77213-13040	Hose, Fuel Tank Sub Inlet
77241	77205-13100	Tube, Fuel Main, No.1
77241	77251-13042	Tube, Fuel Main, No.1
77241	95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77241	95337-06020	Hose, Differential Pressure Control
77241	90445-12105	Hose, Fuel, No.2 (For Main Tube, No.1)
77241	95333-06030	Hose, Fuel
77251	77291-22010	Shield, Fuel Tank, Inlet, No.1 - FUEL TANK, INLET, NO.2
77254	77263-13031	Tube, Fuel Emission, No.1
77276	77276-13020	Protector, Fuel Hose
77285	77285-13020	Support, Fuel Return And Main Tube
77308	77350-13021	Cover Sub-Assy, Fuel Inlet Box
77308	90541-06001	Cushion(For Fuel Inlet Box Cover)
77367	77358-13011	Stopper, Fuel Filler Opening Lid
77652	77651-13020	Cushion, Fuel Tank, No.1
77658	77658-12010	Moulding, Fuel Tank Edge
77662	77662-13010	Cover, Fuel Tank Gage
77701	90917-10020	Valve, Check (For Main Fuel Tank)
9015950004	90159-50004	New Genuine Part
9046020052	90460-20052	New Genuine Part
9046020052	96112-10200	New Genuine Part
9046063008	90460-63008	Clamp, Hose
9046063008	96111-10630	Clamp, Hose
9048001416	90480-01416	New Genuine Part
9048001417	90480-01417	New Genuine Part
9048011516	90480-11516	New Genuine Part
9048079001	90480-79001	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165660825	91656-60825	Bolt, Hexagon(For Steering Column Bracket)
9165660825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9166140614	91661-40614	New Genuine Part
9166140614	91661-A0614	New Genuine Part
9331914008	93319-14008	SCREW
9331914010	93319-14010	SCREW
9338115010	93381-15010	SCREW
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)

OEM	Part name	Category
77011-13010	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77023-12050	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77101-19025	Tank Assy, Fuel	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77178-13020	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77201-13071	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77201-13090	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77203-13050	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77203-13080	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77205-13100	Tube, Fuel Main, No.1	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77213-13040	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77251-13042	Tube, Fuel Main, No.1	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77263-13031	Tube, Fuel Emission, No.1	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77271-13010	Separator Sub-Assy, Fuel Evaporative	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77276-13020	Protector, Fuel Hose	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77285-13020	Support, Fuel Return And Main Tube	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77291-22010	Shield, Fuel Tank, Inlet, No.1 - FUEL TANK, INLET, NO.2	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77310-12100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77350-13021	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77358-13011	Stopper, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77651-13020	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77658-12010	Moulding, Fuel Tank Edge	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
77662-13010	Cover, Fuel Tank Gage	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90080-11225	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90159-50004	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90445-12040	Hose, Fuel(For Fuel Evaporative Separator)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90445-12105	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90445-18028	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90460-20052	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90460-63008	Clamp, Hose	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90480-01416	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90480-01417	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90480-11516	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90480-79001	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90541-06001	Cushion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90910-05153	Hose, Fuel(For Fuel Evaporative Separator)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
90917-10020	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
91651-40612	BOLT	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
91656-60825	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
91661-40614	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
91661-A0614	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
93319-14008	SCREW	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
93319-14010	SCREW	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
93381-15010	SCREW	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95332-06010	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95332-06060	Hose, Fuel	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95333-06010	Hose, Fuel	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95333-06060	Hose, Fuel	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95333-06100	Hose (L=1000)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
96112-10200	New Genuine Part	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([08.1984 - 01.1985] (8408-8501)DV,WG..GEN,SA ; (8501- )KE70..DV,W G..GEN,SA)
