KE70

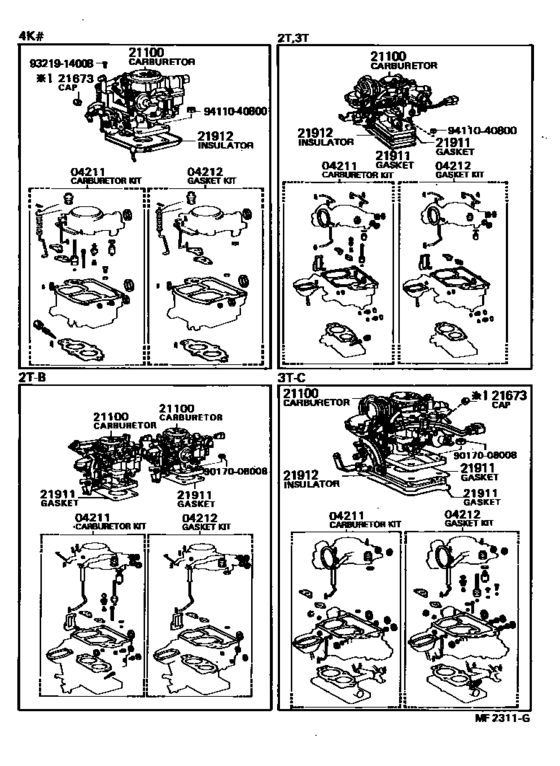

Carburetor Assembly ([08.1979 - ] (7908- )4K#) 11
| # | OEM | Part name |
|---|---|---|
| 4211 | 04211-13221 | Carburetor Kit |
| 4211 | 04211-13223 | Carburetor Kit |
| 4212 | 04212-24014 | Gasket Kit, Carburetor |
| 4212 | 04212-24015 | Gasket Kit, Carburetor |
| 21100 | 21100-13371 | Carburetor Assy |
| 21912 | 21912-13051 | Insulator, Carburetor Heat |
| 21912 | 21912-13080 | Insulator, Carburetor Heat |
| 9017008008 | 90170-08008 | New Genuine Part |
| 9321914008 | 93219-14008 | Screw, W/washer(For Bearing Cover Setting) |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04211-13221 | Carburetor Kit | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 04211-13223 | Carburetor Kit | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 04212-24014 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 04212-24015 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 21100-13371 | Carburetor Assy | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 21912-13051 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 21912-13080 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 90170-08008 | New Genuine Part | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 93219-14008 | Screw, W/washer(For Bearing Cover Setting) | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([08.1979 - ] (7908- )4K#) |
