KE55

Toyota COROLLA · 1978 · 3,338 parts · 158 categories

← Back to categories

3,338 items

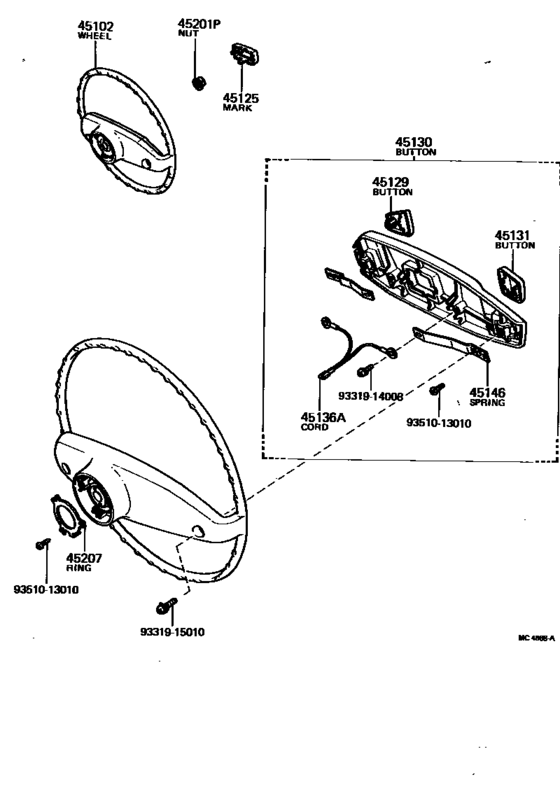

Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G) 14

#	OEM	Part name
45102	45100-12132-01	Wheel Sub-Assy, Steering
45102	45100-12121	Wheel Sub-Assy, Steering
45125	45125-12150	Mark, Steering Wheel Pad
45129	45131-12111	Button, Horn, No.2
45130	45130-12122-01	Button Assy, Horn
45130	45130-12111	Button Assy, Horn
45131	45129-12030	Button, Horn, No.1
45136	90945-02026	Cord(For Horn Contact Ring)
45146	45146-12021	Spring, Horn Button Contact
45201	90179-12086	Nut, Steering Wheel Set
45207	45176-20030	Ring, Horn Contact
9331914008	93319-14008	SCREW
9331915010	93319-15010	SCREW
9351013010	93510-13010	Bolt Or Pin (For Shift Lever Knob Setting)

OEM	Part name	Category
45100-12121	Wheel Sub-Assy, Steering	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45100-12132-01	Wheel Sub-Assy, Steering	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45125-12150	Mark, Steering Wheel Pad	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45129-12030	Button, Horn, No.1	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45130-12111	Button Assy, Horn	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45130-12122-01	Button Assy, Horn	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45131-12111	Button, Horn, No.2	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45146-12021	Spring, Horn Button Contact	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
45176-20030	Ring, Horn Contact	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
90179-12086	Nut, Steering Wheel Set	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
90945-02026	Cord(For Horn Contact Ring)	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
93319-14008	SCREW	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
93319-15010	SCREW	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
93510-13010	Bolt Or Pin (For Shift Lever Knob Setting)	Steering Wheel ([08.1979 - ] (7701-7908)KE30,36,38,50 ; (7701-7908)KE55,TE31. .STD ; (7908- )KE3#,55..DV,SED,W G)
