KE55

Toyota COROLLA · 1978 · 3,338 parts · 158 categories

3,338 items

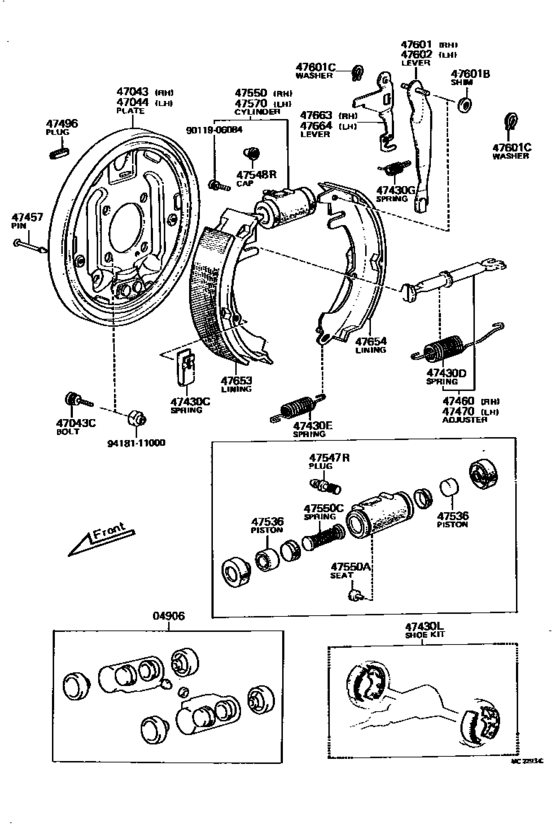

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN) 34

#	OEM	Part name
4906	04906-12040	Cup Kit, Rear Wheel Cylinder
47043	47043-12010	Plate Sub-Assy, Brake Backing, Rear Rh
47043	42184-22020	Bolt(For Backing Plate To Rear Axle Housing Setting)
47044	47044-12010	Plate Sub-Assy, Brake Backing, Rear Lh
47430	47446-10010	Spring(For Front Brake Shoe Hold Down)
47430	90506-23001	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-18299	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-12276	Spring, Tension(For Rear Brake Automatic Adjust Lever)
47430	04495-12060	Shoe Kit, Rear Brake
47430	04495-12012	Shoe Kit, Rear Brake
47457	47447-10010	Pin, Shoe Hold Down Spring(For Front Brake)
47460	47061-12020	Strut Set, Parking Brake Shoe, Rh
47470	47062-12020	Strut Set, Parking Brake Shoe, Lh
47496	47491-20011	Plug, Hole(For Rear Brake)
47536	47051-12030	Piston, Wheel Brake Cylinder(For Rear Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47550	47550-19075	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-12060	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	90119-06084	Bolt(For Rear Wheel Cylinder)
47550	47509-12020	Spring, Compression(For Rear Wheel Brake Cylinder)
47601	47611-12011	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90564-08150	Shim, Rear Parking Brake Shoe Lever
47601	90564-08151	Shim, Rear Parking Brake Shoe Lever
47601	90564-08152	Shim, Rear Parking Brake Shoe Lever
47601	90564-08172	Shim, Rear Parking Brake Shoe Lever
47601	90564-08173	Shim, Rear Parking Brake Shoe Lever
47601	90564-08174	Shim, Rear Parking Brake Shoe Lever
47601	90213-06013	Washer, Type C(For Parking Brake Shoe)
47602	47612-12011	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47653	47655-12030	Lining, Rear Brake Shoe(For Front Or Upper)
47663	47643-12011	Lever, Automatic Adjust, Rh(For Rear Brake)
47664	47644-12011	Lever, Automatic Adjust, Lh(For Rear Brake)
9418111000	94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)

OEM	Part name	Category
04495-12012	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
04495-12060	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
04906-12040	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
42184-22020	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47043-12010	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47044-12010	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47051-12030	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47061-12020	Strut Set, Parking Brake Shoe, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47062-12020	Strut Set, Parking Brake Shoe, Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47446-10010	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47447-10010	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47491-20011	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47509-12020	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47550-12060	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47550-19075	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47611-12011	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47612-12011	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47643-12011	Lever, Automatic Adjust, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47644-12011	Lever, Automatic Adjust, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
47655-12030	Lining, Rear Brake Shoe(For Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90119-06084	Bolt(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90213-06013	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90506-12276	Spring, Tension(For Rear Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90506-18299	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90506-23001	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90564-08150	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90564-08151	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90564-08152	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90564-08172	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90564-08173	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
90564-08174	Shim, Rear Parking Brake Shoe Lever	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1979 - ] (7408-7908)KE36 ; (7408-7908)KE30,35,38,5#..ARL, EUR,GEN ; (7908- )ARL,GEN)
