Search › Model › KE55

KE55

Toyota COROLLA · 1978 · 3,338 parts · 158 categories
KE55 ×

← Back to categories

3,338 items

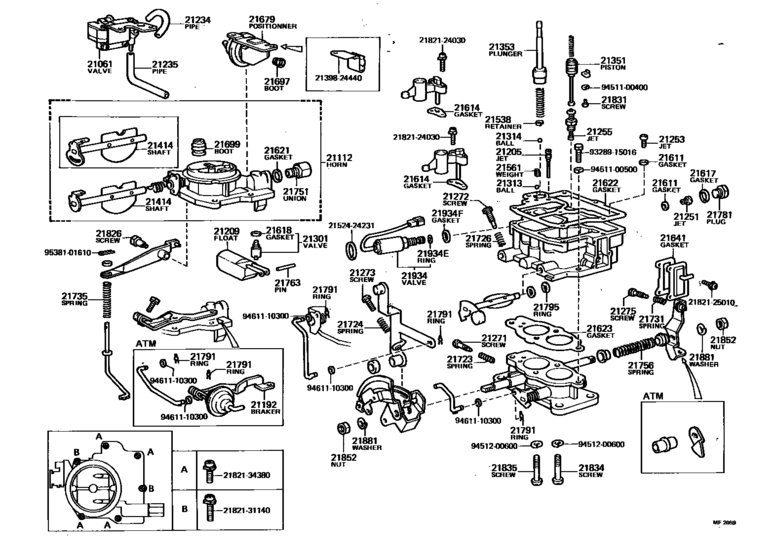

Carburetor ([08.1978 - 12.1980] (7808-8012)4KC) 105
#OEMPart name
21061 21061-13060 Valve Sub-Assy, Thermostatic
21061 21061-24500 Valve Sub-Assy, Thermostatic
21112 21112-13060 Horn, Air
21112 21112-13250 Horn, Air
21192 21192-13250 Breaker
21205 21205-13060 Jet Sub-Assy, Slow
21205 21205-13250 Jet Sub-Assy, Slow
21209 21209-24480 Float Sub-Assy
21234 21234-13150 Pipe Or Hose
21234 90079-70004 Pipe Or Hose, Connecting
21234 21234-24230 Pipe Or Hose
21234 90079-71001 Pipe Or Hose, Connecting
21235 21234-13080 Pipe Or Hose, Connecting
21235 21235-13051 Pipe Or Hose, Connecting
21235 21235-13080 Pipe Or Hose - CONNECTING
21235 21235-24231 Pipe Or Hose, Connecting
21251 90999-41108 Jet, 1St Main
21251 90999-41112 Jet, 1St Main
21253 90999-42153 Jet, 2Nd Main
21255 90999-43047 Jet, Power
21255 90999-43080 Jet, Power
21271 21271-24012 Screw, Idle Adjusting
21271 21271-24470 Screw, Idle Adjusting
21271 21271-13270 Screw, Idle Adjusting
21272 21273-24230 Screw, 1St Idle Adjusting - THROTTLE ADJUSTING
21272 21273-24231 Screw, Throttle Adjusting
21272 21814-33010 Screw, 1St Idle Adjusting
21273 21273-50010 Screw, Throttle Adjusting
21275 21275-24360 Screw, Adjusting
21275 21275-24361 Screw, Adjusting
21301 21301-13080 Valve Sub-Assy, Needle
21301 21301-24360 Valve Sub-Assy, Needle
21301 21301-24500 Valve Sub-Assy, Needle
21301 21301-24501 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21351 21351-33080 Piston, Power
21353 21305-22011 Plunger, Pump
21353 21353-24010 Plunger, Pump
21414 21054-24010 Shaft, Choke
21538 21538-31010 Retainer, Ball Check
21561 21561-22010 Weight, Pump Discharge
21611 21611-22010 Gasket, Main Jet
21614 21614-22010 Gasket, Venturi
21614 21614-24580 Gasket, Venturi
21614 21614-24360 Gasket, Venturi
21614 21614-13430 Gasket, Venturi
21614 21614-88110 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21618 21618-24030 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-24360 Gasket, Air Horn
21622 21622-13430 Gasket, Air Horn
21622 21622-24440 Gasket, Air Horn
21622 21622-24580 Gasket, Air Horn
21623 21623-13080 Gasket, Body Flange
21623 21623-13430 Gasket, Body Flange
21623 21623-24300 Gasket, Body Flange
21641 21641-23010 Gasket(For Thermostatic Valve Cover)
21679 21679-13060 Positioner
21679 21679-24360 Positioner
21697 21699-24360 Boot(For Opener)
21699 21699-21061 Boot(For Pump Plunger)
21699 21699-28150 Boot(For Pump Plunger)
21723 21723-21030 Spring, Idle Adjusting
21724 21726-40010 Spring, Throttle Adjusting
21726 21864-24230 Spring, Throttle Adjusting
21731 21864-24010 Spring, Throttle Adjusting
21735 21735-22010 Spring, Pump Arm
21735 21735-24360 Spring, Pump Arm
21751 21751-24033 Union, Nipple
21751 21751-24034 Union, Nipple
21756 21756-24300 Spring
21756 21864-13080 Spring, Back(For Throttle Shaft)
21763 21763-38010 Pin, Float Lever
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21795 21795-30010 Ring, Retainer, No.2(For High Speed Shaft)
21826 21826-31012 Screw, Pump Arm Set
21831 21842-33010 Screw, Power Piston Stop
21834 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21835 21835-40010 Screw, Set, No.1(For Carburetor Body Set)
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-24360 Solenoid, Throttle Valve
21934 21062-38011 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2139824440 21398-24440 Support(for Dash Pot)
2152424231 21524-24231 Bracket(For Dash Pot)
2152424231 21524-24230 Bracket(For Dash Pot)
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125010 21821-25010 Screw, Coil Housing Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2182134380 21821-34380 Screw, 2nd Throttle Valve Set
9328915016 93289-15016 New Genuine Part
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9538101610 95381-01610 New Genuine Part
