Search › Model › KE50

KE50

Toyota COROLLA · 1976 · 4,868 parts · 189 categories

4,868 items

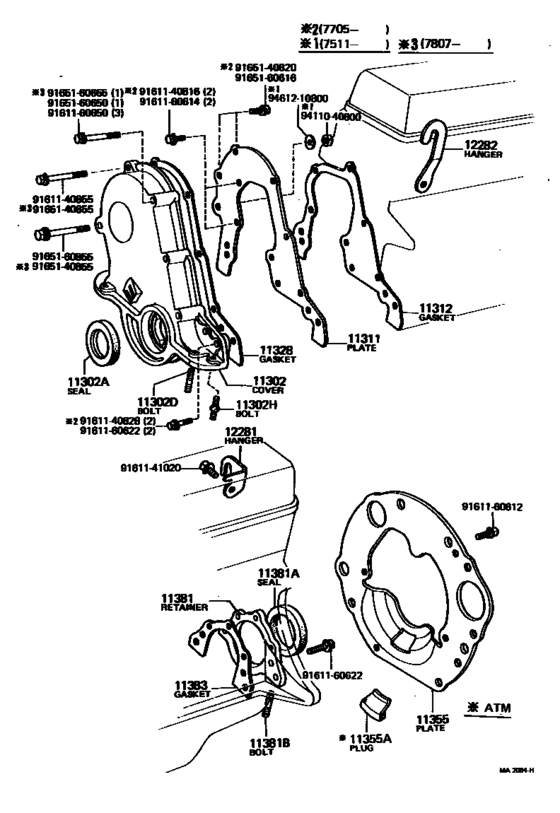

Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC) 61

#	OEM	Part name
11302	11321-13010	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)
11302	11321-13041	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-13030	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-24031	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38002	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-38013	Seal, Oil(For Camshaft Housing)
11302	90116-06012	Bolt, Stud(For Timing Gear Cover)
11302	92132-40616	Bolt, Stud(For Timing Gear Cover)
11302	92132-60614	Bolt, Stud(For Fuel Pipe)
11302	90116-06006	Bolt, Stud(For Timing Gear Cover)
11311	11311-13010	Plate, Front End
11311	11311-22011	Plate, Front End
11312	11312-13010	Gasket, Front End Plate
11312	11312-13050	Gasket, Front End Plate
11312	11312-22010	Gasket, Front End Plate
11312	11312-24010	Gasket, Front End Plate
11328	11328-13010	Gasket, Timing Gear Or Chain Cover
11328	11328-13030	Gasket, Timing Gear Or Chain Cover
11328	11328-22011	Gasket, Timing Gear Or Chain Cover
11328	11328-24020	Gasket, Timing Gear Or Chain Cover
11355	11355-13010	Plate, Rear End
11355	11355-13012	Plate, Rear End
11355	11355-24030	Plate, Rear End
11381	11381-13010	Retainer, Engine Rear Oil Seal
11381	11381-24010	Retainer, Engine Rear Oil Seal
11381	90311-70001	Seal, Engine Rear Oil
11381	90311-70007	Seal, Engine Rear Oil
11381	90311-70120	Seal, Engine Rear Oil
11381	90116-06035	Bolt, Stud(For Timing Gear Cover)
11383	11383-13010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-22010	Gasket, Engine Rear Oil Seal Retainer
12281	12281-13010	Hanger, Engine, No.1
12281	12281-13030	Hanger, Engine, No.1
12281	12281-13011	Hanger, Engine, No.1
12281	12281-24011	Hanger, Engine, No.1
12282	12282-22012	Hanger, Engine, No.2
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161140828	91611-40828	Bolt(For Clutch Release Cylinder Setting)
9161140828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9161140855	91611-40855	Bolt(For Rocker Support Set)
9161140855	91611-60855	Bolt(For Rocker Support Set)
9161141020	91611-41020	Bolt(for Transaxle & Engine Setting)
9161141020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160622	91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)
9161160650	91611-60650	BOLTWWASHER
9165140820	91651-40820	Bolt
9165140855	91651-40855	New Genuine Part
9165160616	91651-60616	BOLT
9165160650	91651-60650	New Genuine Part
9165160650	90119-06675	New Genuine Part
9165160655	91651-60655	BOLT
9165160855	91651-60855	BOLT
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)

OEM	Part name	Category
11311-13010	Plate, Front End	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11311-22011	Plate, Front End	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11312-13010	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11312-13050	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11312-22010	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11312-24010	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11321-13010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11321-13030	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11321-13041	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11321-24031	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11328-13010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11328-13030	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11328-22011	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11328-24020	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11355-13010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11355-13012	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11355-24030	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11381-13010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11381-24010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11383-13010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
11383-22010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
12281-13010	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
12281-13011	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
12281-13030	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
12281-24011	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
12282-22012	Hanger, Engine, No.2	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90116-06006	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90116-06012	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90116-06035	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90119-06675	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90311-38002	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90311-38013	Seal, Oil(For Camshaft Housing)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90311-38086	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90311-70001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90311-70007	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
90311-70120	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-40828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-40855	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-41020	Bolt(for Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-60650	BOLTWWASHER	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-60855	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91611-G0612	Bolt	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91651-40820	Bolt	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91651-40855	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91651-60616	BOLT	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91651-60650	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91651-60655	BOLT	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
91651-60855	BOLT	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
92132-40616	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
92132-60614	Bolt, Stud(For Fuel Pipe)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
94110-40800	Nut(For Steering Damper)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
94130-00802	Nut, No.1 (For Center Support Bearing)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
94612-10800	Washer, Plate(For Repair Actuator Set)	Timing Gear Cover & Rear End Plate ([08.1974 - ] (7408- )3K#,4KC)
