KE38

Toyota COROLLA · 1978 · 3,537 parts · 161 categories
KE38 ×

← Back to categories

3,537 items

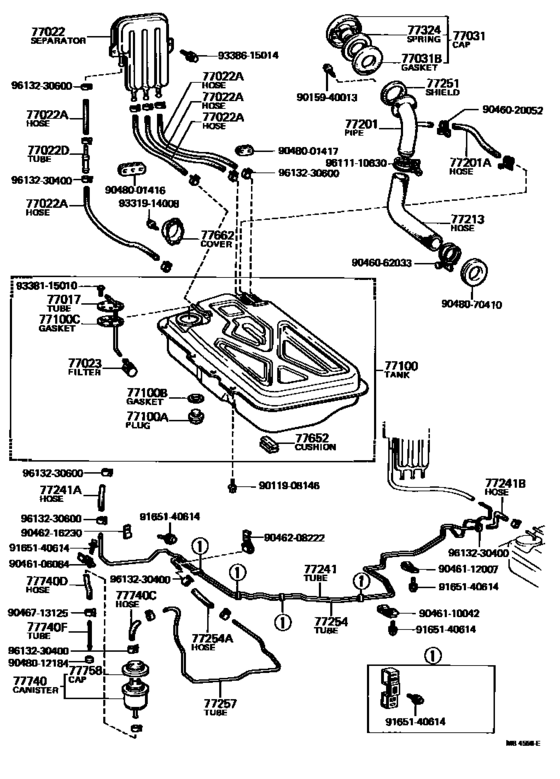

Fuel Tank & Tube ([11.1975 - ] (7511- )KE36,38..ARL) 92
#OEMPart name
77017 77203-13031 Tube Sub-Assy, Fuel And Evaporation Vent
77022 77271-13010 Separator Sub-Assy, Fuel Evaporative
77022 90445-12040 Hose, Fuel(For Fuel Evaporative Separator)
77022 95333-06100 Hose (L=1000)
77022 95332-04038 Hose, Fuel, No.1(For Return Tube, No.1)
77022 95333-04040 Hose(For Fuel Pump To Fuel Tube)
77022 95332-04040 Hose(For Fuel Pump To Fuel Tube)
77022 95332-06005 Hose, Fuel
77022 95333-06010 Hose, Fuel
77022 95332-06010 Hose, Fuel Pipe, No.1
77022 95332-06055 Hose, Fuel(For Fuel Evaporative Separator)
77022 95332-06060 Hose, Fuel
77022 95333-06060 Hose, Fuel
77022 90412-06081 Hose Or Tube(For Fuel Evaporative Separator)
77023 77023-12050 Filter Sub-Assy, Fuel Suction Tube
77031 69058-13020 Cap Assy, Fuel Tank
77031 77316-12031 Gasket, Fuel Filler Lid Cylinder
77100 77101-13041 Tank Assy, Fuel
77100 77101-13042 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90341-24036 Plug(For Fuel Tank)
77100 90430-12038 Gasket(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90430-24047 Gasket(For Fuel Tank)
77100 77169-12010 Gasket, Fuel Suction Tube, Set
77201 77201-13051 Pipe Sub-Assy, Fuel Tank Inlet
77201 90445-18028 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-13030 Hose, Fuel Tank Sub Inlet
77241 77251-13021 Tube, Fuel Main, No.1
77241 77279-12010 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95331-06012 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95331-06020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241 95337-06020 Hose, Differential Pressure Control
77241 95332-06026 Hose, Fuel
77241 95333-06030 Hose, Fuel
77241 95332-06030 Hose(For Carburetor)
77251 77291-12010 Shield, Fuel Tank, Inlet, No.1
77254 77261-13013 Tube, Fuel Emission, No.1
77254 95331-04009 Hose, Fuel, No.1 (For Emission Tube, No.1)
77254 95331-04010 Hose, Fuel, No.1 (For Emission Tube, No.1)
77254 95333-04010 Hose, Fuel(For Lpg Regulator)
77254 95331-04012 Hose, Fuel, No.2 (For Emission Tube, No.2) - FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77254 95333-04020 Hose, Lpg Injector
77254 95331-04013 Hose, Fuel - FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77254 95333-04095 Hose, Fuel
77254 95332-04009 Hose, Fuel, No.2 (For Return Tube, No.2) - FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77254 95332-04010 Hose, Fuel
77257 77268-12030 Tube, Fuel Emission, No.4
77257 77268-12031 Tube, Fuel Emission, No.4
77324 77324-12011 Spring, Fuel Tank Cap
77652 77651-13020 Cushion, Fuel Tank, No.1
77662 77662-13010 Cover, Fuel Tank Gage
77740 77740-12100 Canister Assy, Charcoal
77740 77740-12101 Canister Assy, Charcoal
77740 77740-12260 Canister Assy, Charcoal
77740 95332-04013 Hose, No.2(For Lpg Regulator To Lpg Carburetor)
77740 95332-04020 Hose, Lpg Injector
77740 90445-14031 Hose, Fuel, No.4(For Charcoal Canister)
77740 95331-08010 Hose, Fuel, No.2(For Fuel Expansion Tank) - FUEL, NO.1(FOR FUEL EXPANSION TANK)
77740 95333-08010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77740 77264-12020 Tube, Fuel, No.1(For Charcoal Canister)
77740 77264-12021 Tube, Fuel, No.1(For Charcoal Canister)
77740 77264-12050 Tube, Fuel, No.1(For Charcoal Canister)
77758 77758-12020 Cap, Charcoal Canister
77758 77758-12030 Cap, Charcoal Canister
77758 77758-30020 Cap, Charcoal Canister
9011908146 90119-08146 Bolt(For Parking Brake Setting)
9015940013 90159-40013 New Genuine Part
9046020052 90460-20052 New Genuine Part
9046020052 96112-10200 New Genuine Part
9046062033 90460-62033 Clamp(For Air Cleaner Hose, No.1)
9046062033 96111-10620 Clamp, Hose(For Air Connector)
9046106084 90461-06084 New Genuine Part
9046110042 90461-10042 New Genuine Part
9046112007 90461-12007 New Genuine Part
9046208222 90462-08222 New Genuine Part
9046216230 90462-16230 New Genuine Part
9046713125 90467-13125 Clip(For Carburetor)
9046713125 96132-51300 Clip(For Ventilation Hose No.2)
9048001416 90480-01416 New Genuine Part
9048001417 90480-01417 New Genuine Part
9048012184 90480-12184 New Genuine Part
9048070410 90480-70410 New Genuine Part
9165140614 91651-40614 Bolt
9331914008 93319-14008 SCREW
9338115010 93381-15010 SCREW
9338615014 93386-15014 New Genuine Part
9611110630 96111-10630 Clamp, Hose
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
