KE36

Toyota COROLLA · 1974 · 5,088 parts · 163 categories
KE36 ×

← Back to categories

5,088 items

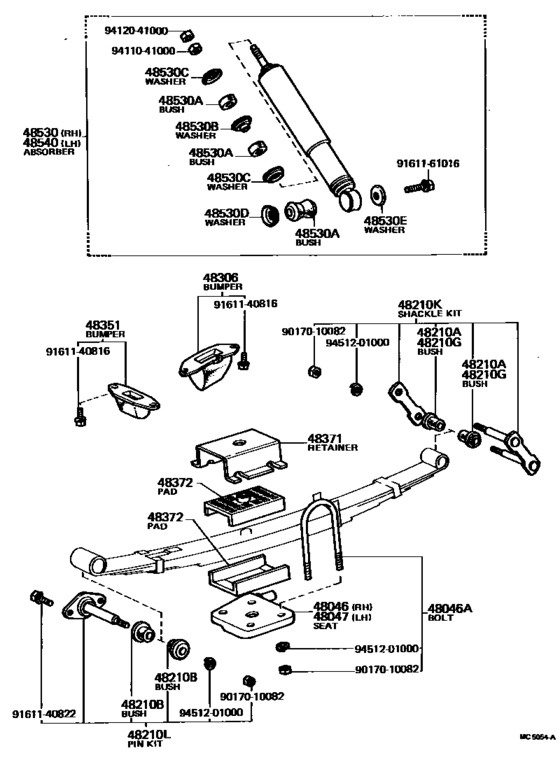

Rear Spring & Shock Absorber ([08.1974 - ] (7408- )KE36,38) 77
#OEMPart name
48046 48046-13040 Seat Sub-Assy, Spring U Bolt, Rh
48046 90118-10129 Bolt, U(For Rear Spring)
48046 90117-10202 New Genuine Part
48046 90170-10082 Nut, Hexagon (For Control Rod Setting)
48046 94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting)
48046 90118-10138 Bolt, U(For Rear Spring)
48047 48047-13040 Seat Sub-Assy, Spring U Bolt, Lh
48210 90385-13071 Bush(For Rear Spring Shackle Upper)
48210 90385-13002 Bush(For Rear Spring Pin)
48210 90385-17069 Bush(For Rear Spring Pin)
48210 90385-17072 Bush(For Rear Spring Pin)
48210 04483-12020 Shackle Kit, Rear Spring
48210 04484-12050 Pin Kit, Rear Spring
48210 04484-13010 Pin Kit, Rear Spring
48210 04484-13011 Pin Kit, Rear Spring
48210 48210-13050 Spring Assy, Rear Rh
48210 48210-13051 Spring Assy, Rear Rh
48210 48210-13110 Spring Assy, Rear Rh
48241 48241-13050 Clip, Rear Spring, No.1
48241 48241-13051 Clip, Rear Spring, No.1
48241 48241-13080 Clip, Rear Spring, No.1
48241 48241-13081 Clip, Rear Spring, No.1
48241 48243-13050 Clip, Rear Spring, No.2
48242 48241-10050 Clip, Rear Spring, No.3 - REAR SPRING, NO.2
48242 48241-10070 Clip, Rear Spring, No.1
48242 48242-10060 Clip, Rear Spring, No.1
48243 48242-13011 Clip, Rear Spring, No.3
48243 48242-13080 Clip, Rear Spring, No.3
48247 48247-12190 Bolt, Rear Spring, Center
48247 48247-13050 Bolt, Rear Spring, Center
48247 48247-13080 Bolt, Rear Spring, Center
48247 48247-13100 Bolt, Rear Spring, Center
48247 48247-13160 Bolt, Rear Spring, Center
48247 48247-20130 Bolt, Rear Spring, Center
48252 48252-22020 Silencer, Rear Spring
48252 48253-23030 Spacer, Rear Spring Leaf
48252 48252-21150 Silencer, Rear Spring
48253 48253-20100 Spacer, Rear Spring, No.1
48253 48254-10050 Spacer, Rear Spring, No.1
48306 48341-19015 Bumper Sub-Assy, Rear Spring
48306 48341-19016 Bumper Sub-Assy, Rear Spring
48351 48351-29015 Bumper, Differential Carrier
48351 48351-20020 Bumper, Differential Carrier
48371 48371-13010 Retainer, Rear Spring Pad
48371 48371-13050 Retainer, Rear Spring Pad
48372 48372-22010 Pad, Rear Spring
48530 48531-19325 Absorber Assy, Shock, Rear Rh
48530 48531-19326 Absorber Assy, Shock, Rear Rh
48530 90385-16060 Bush(For Rear Shock Absorber)
48530 90385-16004 Cushion, Front Shock Absorber
48530 90948-01002 Cushion
48530 90948-01003 Rubber Cushion
48530 90948-02005 Retainer No.2
48530 90948-02007 Retainer, Steering Damper Cushion
48530 90948-02002 Retainer, Steering Damper Cushion
48530 90948-02004 Cushion Retainer
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-03012 Washer, Front Shock Absorber Cushion, No.1
9099990202 90999-90202 New Genuine Part
9099990211 90999-90211 New Genuine Part
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9161140822 91611-40822 Bolt(For Intake Manifold To Exhaust Manifold)
9161140822 91611-60822 Bolt
9161161016 91611-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016 91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411041000 94110-41000 Nut(For Steering Damper)
9411050800 94110-50800 Nut(For Repair Actuator Set)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9511100612 95111-00612 New Genuine Part
9511100812 95111-00812 New Genuine Part
9511100814 95111-00814 New Genuine Part
9511100816 95111-00816 New Genuine Part
9511100818 95111-00818 New Genuine Part
