KE36

Toyota COROLLA · 1974 · 5,088 parts · 163 categories
KE36 ×

← Back to categories

5,088 items

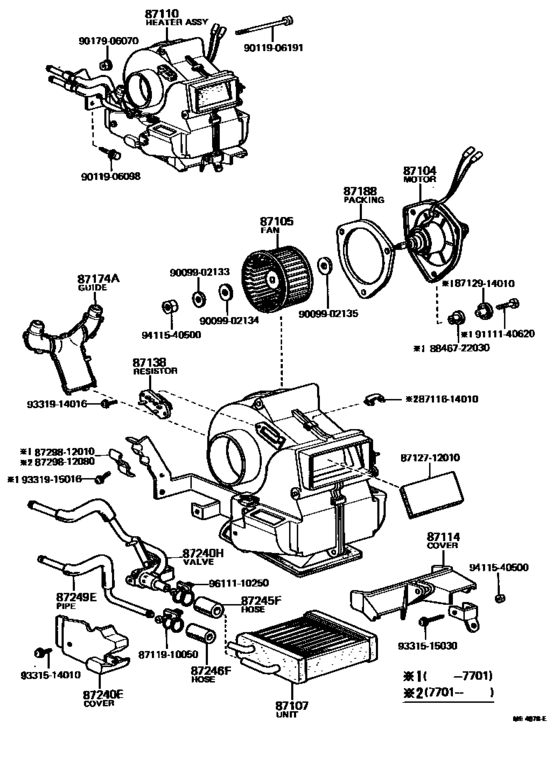

Heating & Air Conditioning - Heater Unit & Blower ([08.1974 - ] (7408- )RHD) 55
#OEMPart name
87104 87104-12050 Motor Sub-Assy, Heater Blower
87104 87104-14011 Motor Sub-Assy, Heater Blower
87104 87104-12090 Motor Sub-Assy, Heater Blower
87104 88550-12050 Motor Sub-Assy, Heater Blower
87105 87105-12030 Fan Sub-Assy, Heater Blower
87105 87105-22010 Fan Sub-Assy, Heater Blower - COOLER BLOWER, NO.1
87107 87107-12060 Unit Sub-Assy, Heater Radiator
87107 87107-12160 Unit Sub-Assy, Heater Radiator
87107 87107-12070 Unit Sub-Assy, Heater Radiator
87110 87110-12070 Heater Assy
87110 87110-12100 Heater Assy
87110 87110-12102 Heater Assy
87110 87110-12103 Heater Assy
87110 87110-12191 Heater Assy
87114 87174-12010 Cover, Heater
87114 87174-12011 Cover, Heater
87114 87174-12020 Cover, Heater
87114 87297-12010 Cover, Heater
87138 87138-12071 Resistor, Heater Blower
87138 87138-22020 Resistor, Heater Blower
87174 87174-12051 Guide, Air Heater
87188 87128-22010 Packing, Heater Blower Motor
87240 87173-12020 Cover, Heater - HEATER WATER VALVE
87240 87173-12030 Cover, Heater
87240 87240-12050 Valve Assy, Water Unit
87240 87240-12051 Valve Assy, Water Unit
87240 87240-12052 Valve Assy, Water Unit
87245 99552-30045 Hose, Heater Water, Inlet F
87245 99556-30100 Hose, Water Inlet
87246 99552-20035 Hose, Heater Water, Outlet F
87246 99556-20200 Hose, Water(For Lpg Regulator Outlet)
87249 87291-12010 Pipe, Heater Water Outlet, E (For Heater Unit)
8711614010 87116-14010 Spring, Heater Case Fastening
8711910050 87119-10050 New Genuine Part
8712712010 87127-12010 Packing, Heater Air Damper
8712914010 87129-14010 New Genuine Part
8729812010 87298-12010 Bracket Or Panel, Heater Switch
8729812080 87298-12080 Bracket Or Panel, Heater Switch
8846722030 88467-22030 Cushion, Cooler Condenser, No.1
9009902133 90099-02133 New Genuine Part
9009902134 90099-02134 New Genuine Part
9009902135 90099-02135 New Genuine Part
9011906098 90119-06098 BOLT
9011906191 90119-06191 New Genuine Part
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9111140620 91111-40620 New Genuine Part
9111140620 91111-50620 New Genuine Part
9331514010 93315-14010 SCREW
9331515030 93315-15030 New Genuine Part
9331914016 93319-14016 New Genuine Part
9331915016 93319-15016 Screw, Cover Set, No.1
9411540500 94115-40500 Nut(For Lpg Filter Stud Bolt Set)
9611110250 96111-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9611110250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
