Search › Model › KE30

KE30

Toyota COROLLA · 1974 · 5,887 parts · 193 categories
KE30 ×

← Back to categories

5,887 items

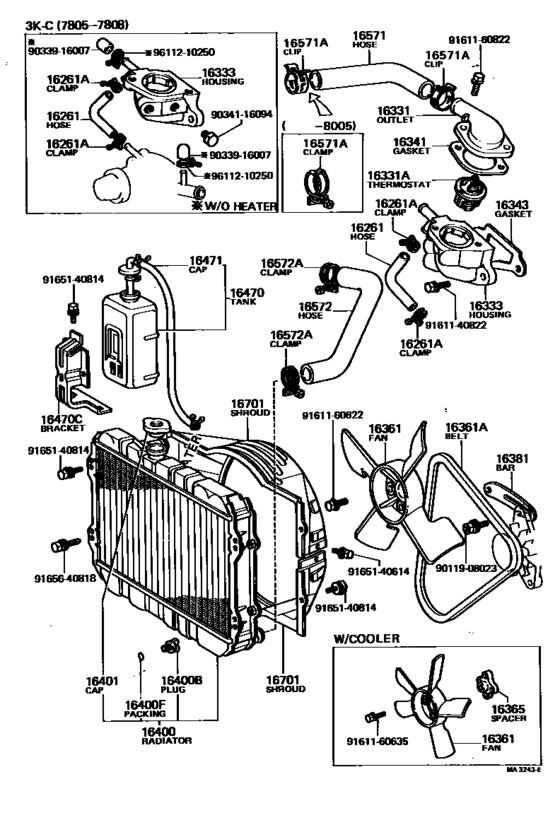

Radiator & Water Outlet ([05.1978 - ] (7805- )3KH,3KB..GEN) 76
#OEMPart name
16261 16261-13010 Hose, Water By-Pass
16261 16261-22011 Hose, Water By-Pass
16261 90460-15001 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96112-10150 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
16331 16331-22030 Outlet, Water
16331 16331-22031 Outlet, Water
16331 90916-03020 Thermostat
16331 90916-03034 Thermostat
16331 90916-03035 Thermostat
16331 90916-03083 Thermostat
16331 90916-03036 Thermostat
16331 90916-03078 Thermostat
16331 90916-03037 Thermostat
16331 90916-03038 Thermostat
16333 16333-12011 Housing, Water Outlet
16333 16333-22020 Housing, Water Outlet
16333 16333-22021 Housing, Water Outlet
16341 16341-13010 Gasket, Water Outlet
16341 16341-13040 Gasket, Water Outlet
16341 16341-13011 Gasket, Water Outlet
16341 16341-22010 Gasket, Water Outlet
16343 16343-22010 Gasket, Water Outlet Housing
16343 16343-13020 Gasket, Water Outlet Housing
16361 16361-24030 Fan
16361 16361-24031 Fan
16361 16361-31030 Fan
16361 16361-31031 Fan
16361 99321-00840 Belt, V(For Fan & Alternator)
16361 99521-10839 Belt, V(For Fan & Alternator)
16361 99521-10843 Belt, V(For Fan & Alternator)
16365 16365-24010 Spacer, Fan
16381 16381-24011 Bar, Fan Belt Adjusting
16400 16400-24120 Radiator Assy
16400 16400-24131 Radiator Assy
16400 16400-24121 Radiator Assy
16400 90910-09054 Plug, Radiator Drain Cock
16400 96710-01007 Packing(For Radiator Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16401 16401-36010 Cap Sub-Assy, Radiator
16401 16401-36011 Cap Sub-Assy, Radiator
16470 16470-24031 Tank Assy, Radiator Reserve
16470 16470-24032 Tank Assy, Radiator Reserve
16470 16470-26090 Tank Assy, Radiator Reserve
16470 16611-24011 Bracket(For Radiator Reserve Tank)
16470 16611-24012 Bracket(For Radiator Reserve Tank)
16470 16611-24013 Bracket(For Radiator Reserve Tank)
16470 16611-24014 Bracket(For Radiator Reserve Tank)
16471 16471-24020 Cap Sub-Assy, Reserve Tank
16471 16471-87606 Cap Sub-Assy, Reserve Tank
16471 16471-24032 Cap Sub-Assy, Reserve Tank
16471 16471-15012 Cap Sub-Assy, Reserve Tank
16571 90916-01136 Hose, Radiator, Inlet
16571 90916-01156 Hose, Radiator, Inlet
16571 90467-37001 Clip(For Water Inlet Hose)
16571 90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16571-13030 Hose, Radiator, Outlet
16572 90916-01135 Hose, Radiator, Outlet
16572 90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)
16701 16711-24040 Shroud Sub-Assy, Fan
16701 16712-24030 Shroud Sub-Assy, Fan
9011908023 90119-08023 BOLT
9033916007 90339-16007 Plug
9033916007 90339-16001 Plug, Heater Water
9034116094 90341-16094 Plug, W/head Taper Screw, No.1
9161140822 91611-40822 Bolt(For Intake Manifold To Exhaust Manifold)
9161140822 91611-60822 Bolt
9161160622 91611-60622 Bolt, W/washer (For Transmission Oil Pump Cover)
9161160635 91611-60635 New Genuine Part
9165140614 91651-40614 Bolt
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165640818 91656-40818 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818 91651-B0814 Bolt with washer
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
